capi/config-flash.h File Reference

#include "types.h"
#include "msg.h"

Include dependency graph for config-flash.h:

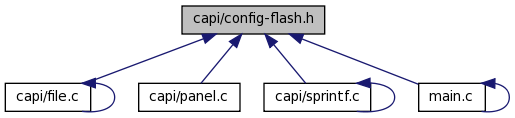

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	CONFIGBYTES_START   OMOff+2
#define	CONFIGBYTES_END   OMOff+2+128
#define	CONFIGBYTES_BOOTUP_COUNTER_OFF   CONFIGBYTES_START
#define	CONFIGBYTES_FIRST_BOOTUP_FLAG_OFF   CONFIGBYTES_START+1
Functions
UINT8	fc_check ()
UINT32	fc_cc_config_size ()
UINT32	fc_ee_checksum ()
UINT32	fc_ee_checksum_complete (UINT8 bPrintDots)
UINT8	WriteToEEFromSSDMem ()
UINT8	MTGetStringFirstByte (UINT16 stringNum)
UINT8	MTGetStringNextByte ()
UINT8	EEToSSDReg (UINT32 tableId)
UINT8	fc_get_first_bootup_flag ()
UINT8	fc_update_first_bootup_flag ()
void	fc_update_bootup_count ()
void	fc_update_bootup_value (UINT32 addr, UINT8 bInvalidate)

---

Define Documentation

#define CONFIGBYTES_BOOTUP_COUNTER_OFF   CONFIGBYTES_START

Referenced by fc_get_bootup_count(), and fc_update_bootup_count().

#define CONFIGBYTES_END   OMOff+2+128

Referenced by ee_stream_cb(), and WriteToEEFromSSDMem().

#define CONFIGBYTES_FIRST_BOOTUP_FLAG_OFF   CONFIGBYTES_START+1

Referenced by fc_get_first_bootup_flag(), fc_update_first_bootup_flag(), and main().

#define CONFIGBYTES_START   OMOff+2

Referenced by WriteToEEFromSSDMem().

---

Function Documentation

UINT8 EEToSSDReg

(

UINT32

tableId

)

References read_I2C_EE(), SSD_REGRB, SSD_REGWB, TRACE2, and TRACE3.

Referenced by PlayMJPEG(), and SSD1928Init().

Here is the call graph for this function:

Here is the caller graph for this function:

UINT32 fc_cc_config_size

(

)

References read_I2C_EE().

Referenced by fc_ee_checksum_complete().

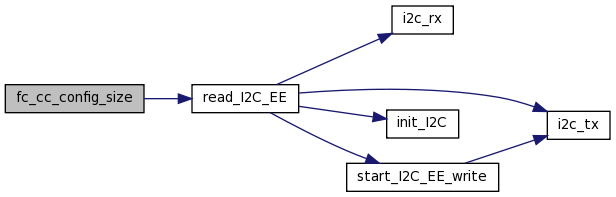

Here is the call graph for this function:

Here is the caller graph for this function:

UINT8 fc_check

(

)

References read_I2C_EE().

Referenced by main().

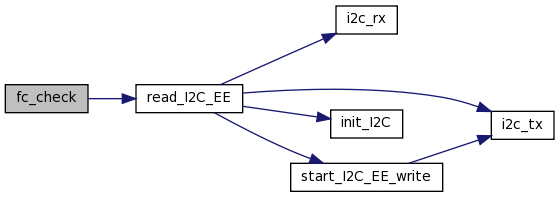

Here is the call graph for this function:

Here is the caller graph for this function:

UINT32 fc_ee_checksum

(

)

References read_I2C_EE().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

UINT32 fc_ee_checksum_complete

(

UINT8

bPrintDots

)

References eeStreamCBType::bPrintDots, eeStreamCBType::checksum, ee_stream_cb(), fc_cc_config_size(), and read_I2C_EE_stream().

Referenced by main(), and WriteToEEFromSSDMem().

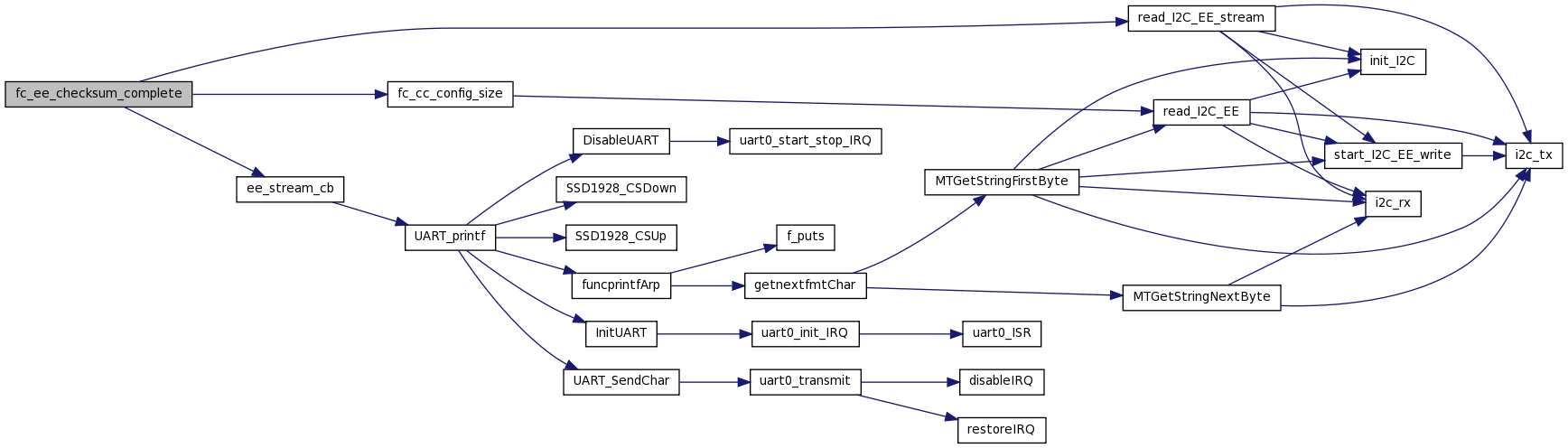

Here is the call graph for this function:

Here is the caller graph for this function:

UINT8 fc_get_first_bootup_flag

(

)

References CONFIGBYTES_FIRST_BOOTUP_FLAG_OFF, and read_I2C_EE().

Referenced by main().

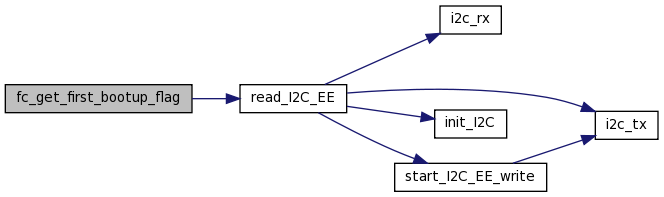

Here is the call graph for this function:

Here is the caller graph for this function:

void fc_update_bootup_count

(

)

References CONFIGBYTES_BOOTUP_COUNTER_OFF, and fc_update_bootup_value().

Referenced by main().

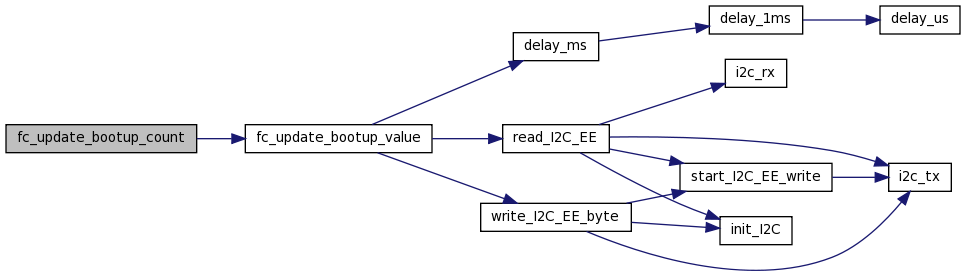

Here is the call graph for this function:

Here is the caller graph for this function:

void fc_update_bootup_value	(	UINT32	addr,
		UINT8	bInvalidate
	)

References delay_ms(), read_I2C_EE(), and write_I2C_EE_byte().

Referenced by fc_update_bootup_count(), fc_update_first_bootup_flag(), and main().

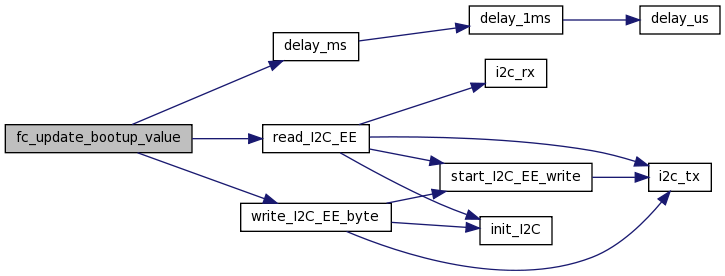

Here is the call graph for this function:

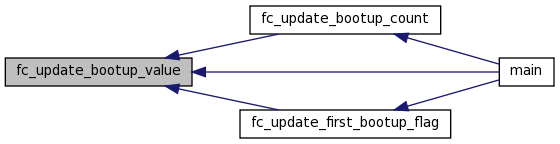

Here is the caller graph for this function:

UINT8 fc_update_first_bootup_flag

(

)

References CONFIGBYTES_FIRST_BOOTUP_FLAG_OFF, and fc_update_bootup_value().

Referenced by main().

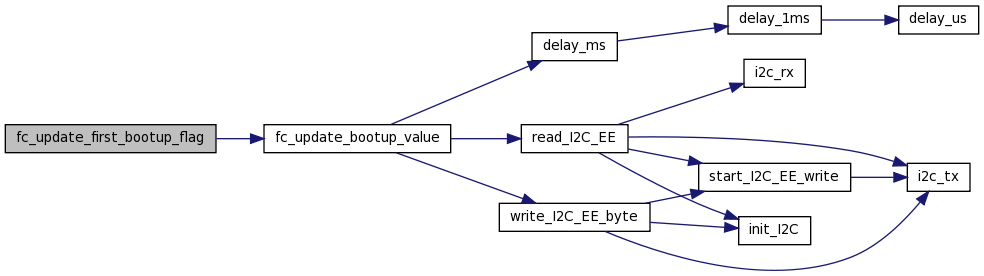

Here is the call graph for this function:

Here is the caller graph for this function:

UINT8 MTGetStringFirstByte

(

UINT16

stringNum

)

References i2c_rx(), i2c_tx(), init_I2C(), offStringTable, read_I2C_EE(), and start_I2C_EE_write().

Referenced by getnextfmtChar().

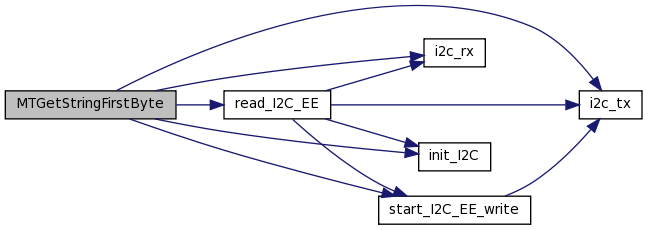

Here is the call graph for this function:

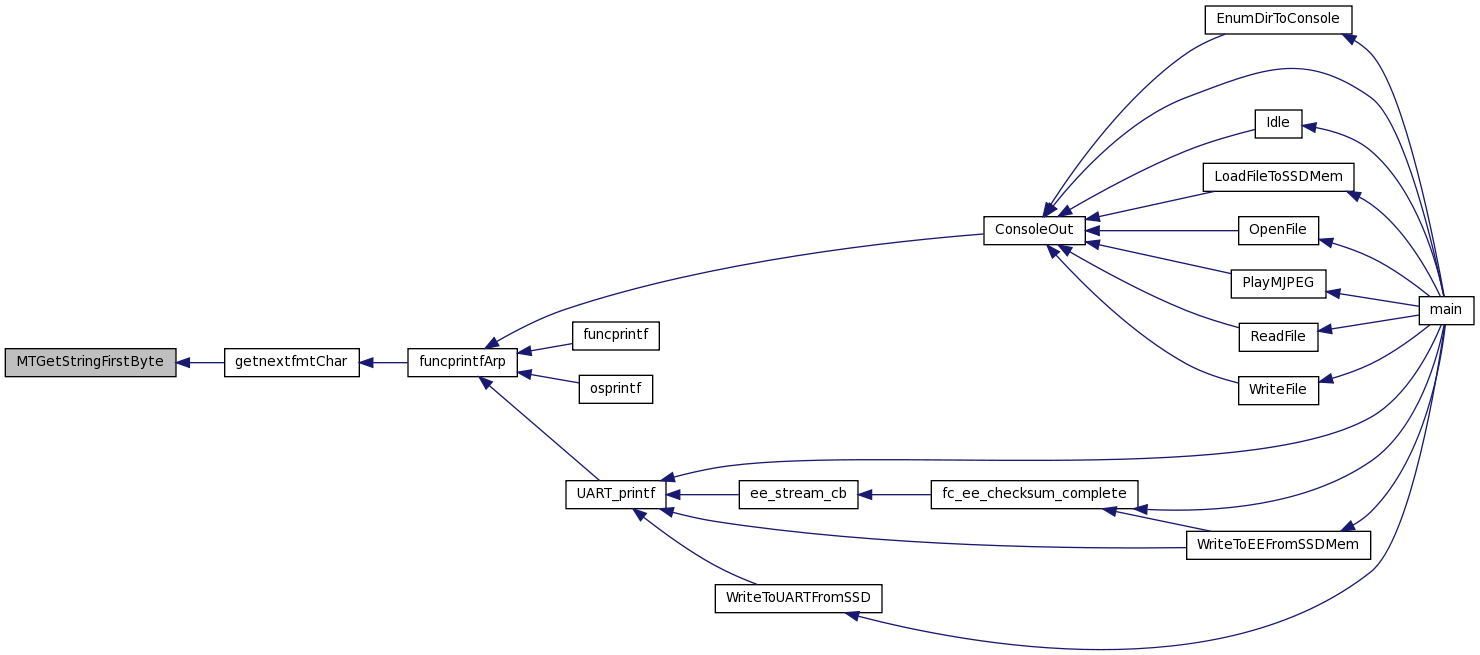

Here is the caller graph for this function:

UINT8 MTGetStringNextByte

(

)

References i2c_rx(), and i2c_tx().

Referenced by getnextfmtChar().

Here is the call graph for this function:

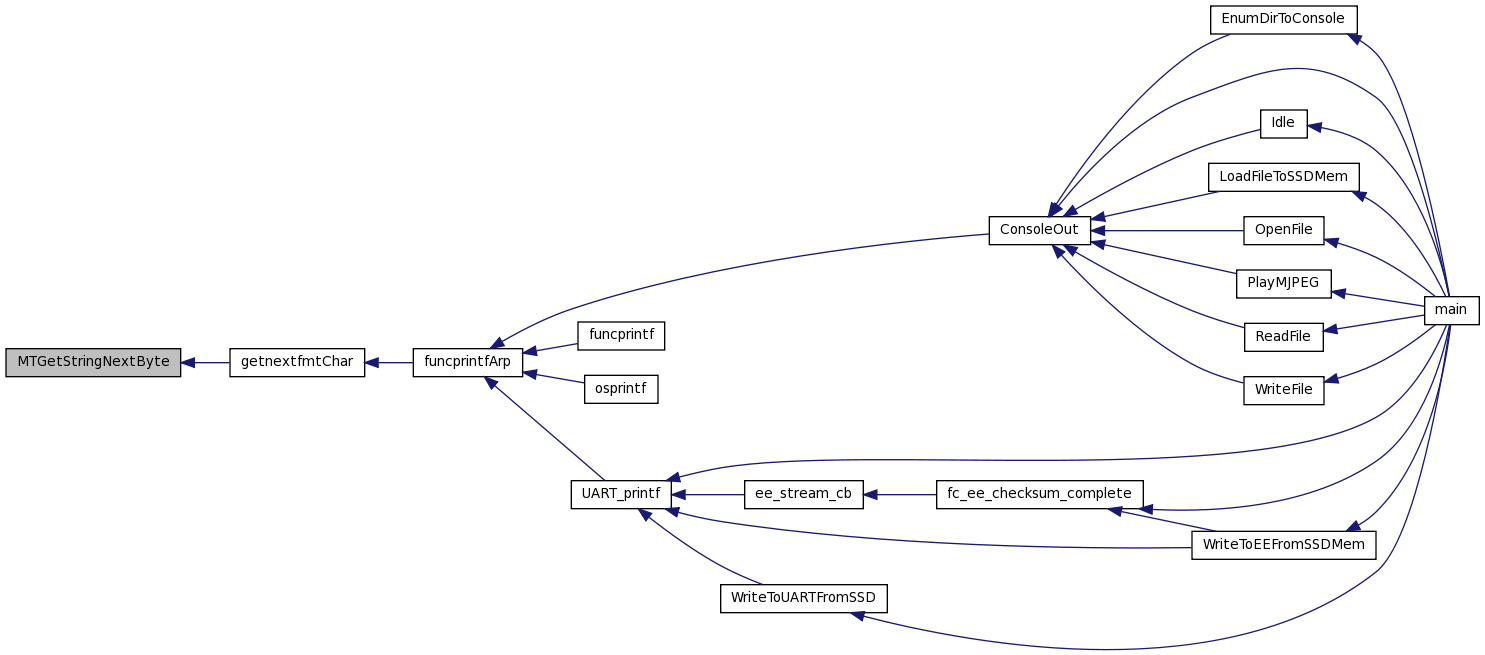

Here is the caller graph for this function:

UINT8 WriteToEEFromSSDMem

(

)

References CONFIGBYTES_END, CONFIGBYTES_START, delay_ms(), fc_ee_checksum_complete(), SSD_MEMRB, SSD_MEMRL, TRACE, TRACE1, TRACE2, UART_printf(), and write_I2C_EE_byte().

Referenced by main().

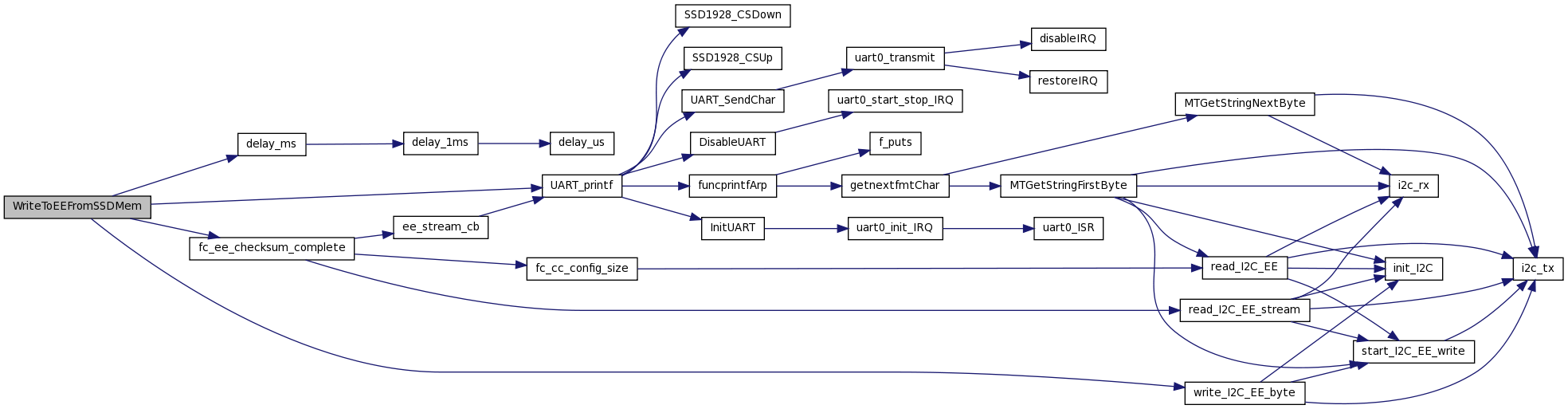

Here is the call graph for this function:

Here is the caller graph for this function:
