capi/ssd-io-indirect.h File Reference

Go to the source code of this file.

Data Structures

struct  ioCmdTag

Defines

#define GPIO_INDIRECT_ADDRESS_MODE_16
#define __SSD1921
#define NULL   0
#define __inline__
#define MAX_MEM_SIZE   (512*1024)
#define MAX_REG_SIZE   (512*1024)
#define SSD_MAP_IO   0x83800000
#define SSD_MAP_MEM   0x83880000
#define PORTD_CS   23
#define PORTD_RD   16
#define PORTD_WR   21
#define PORTD_DC   24
#define PORTD_DATA   0
#define PORTD_BEEP   19
#define PORTD_LCDPOWER   22
#define PORTD_SSD1928_RESET   25
#define PORTD_P017   17
#define PORTD_P018   18
#define PORTD_P027   27
#define PORTD_P028   28
#define PORTD_P029   29
#define SSD_IOB(x)   (*((volatile unsigned char *)(SSD_MAP_IO+(x))))
#define SSD_IOW(x)   (*((volatile unsigned short *)(SSD_MAP_IO+(x))))
#define SSD_IOL(x)   (*((volatile unsigned long *)(SSD_MAP_IO+(x))))
#define SSD_MEMB(x)   (*((volatile unsigned char *)(SSD_MAP_MEM+(x))))
#define SSD_MEMW(x)   (*((volatile unsigned short *)(SSD_MAP_MEM+(x))))
#define SSD_MEML(x)   (*((volatile unsigned long *)(SSD_MAP_MEM+(x))))
#define SSD192X_MEMB(x)   (*((volatile unsigned char *)(SSD_MAP_MEM+(x))))
#define SSD192X_MEMW(x)   (*((volatile unsigned short *)(SSD_MAP_MEM+(x))))
#define SSD192X_MEML(x)   (*((volatile unsigned long *)(SSD_MAP_MEM+(x))))
#define mdelay(x)   delay_ms(x)
#define udelay(x)   delay_us(x)
#define SSD_REGRB   SSD_INDIRECT_REGRB
#define SSD_REGRW   SSD_INDIRECT_REGRW
#define SSD_REGRL   SSD_INDIRECT_REGRL
#define SSD_REGWB   SSD_INDIRECT_REGWB
#define SSD_REGWW   SSD_INDIRECT_REGWW
#define SSD_REGWL   SSD_INDIRECT_REGWL
#define SSD_MEMRB   SSD_INDIRECT_MEMRB
#define SSD_MEMRW   SSD_INDIRECT_MEMRW
#define SSD_MEMRL   SSD_INDIRECT_MEMRL
#define SSD_MEMWB   SSD_INDIRECT_MEMWB
#define SSD_MEMWW   SSD_INDIRECT_MEMWW
#define SSD_MEMWL   SSD_INDIRECT_MEMWL
#define SSD_MEMRB_burst   SSD_INDIRECT_MEMRB_burst

Typedefs

typedef struct ioCmdTag ioCmdType

Enumerations

enum  ioCmdEnum {
  ioCmdSSD_EXIT_IOCMD_MODE = 0x40, ioCmdSSD_MIN_VALUE = 0x50, ioCmdSSD_REGRB, ioCmdSSD_REGRW,
  ioCmdSSD_REGRL, ioCmdSSD_REGWB, ioCmdSSD_REGWW, ioCmdSSD_REGWL,
  ioCmdSSD_MEMRB, ioCmdSSD_MEMRW, ioCmdSSD_MEMRL, ioCmdSSD_MEMWB,
  ioCmdSSD_MEMWW, ioCmdSSD_MEMWL, ioCmdSSD_MEMWW_Burst, ioCmdSSD_REGWB_mod_And,
  ioCmdSSD_REGWB_mod_Or, ioCmdSSD_REGWB_mod_Add, ioCmdSSD_REGWB_mod_Sub, ioCmdSSD_REGWW_RB_mod_And,
  ioCmdSSD_REGWW_RB_mod_Or, ioCmdSSD_REGWW_RB_mod_Add, ioCmdSSD_REGWW_RB_mod_Sub, ioCmdSSD_REGWW_mod_And,
  ioCmdSSD_REGWW_mod_Or, ioCmdSSD_REGWW_mod_Add, ioCmdSSD_REGWW_mod_Sub, ioCmdSSD_MAX_VALUE
}
enum  ioCmdMod { ioModAnd = 0, ioModOr, ioModAdd, ioModSub }

Functions

void indirect_fast ()
void indirect_slow ()
UINT16 indirect_mem_readseek (UINT32 address)
UINT16 indirect_mem_writeseek (UINT32 address, UINT8 byteWrite)
UINT16 indirect_reg_readWord ()
UINT16 indirect_reg_writeWord (UINT16 value)
void indirect_WriteDataBus (UINT16 value)
UINT8 SSD_INDIRECT_REGRB (UINT32 regNum)
void SSD_INDIRECT_REGWB (UINT32 regNum, UINT8 dat)
void SSD_INDIRECT_REGWW (UINT32 regNum, UINT16 dat)
void SSD_INDIRECT_REGWL (UINT32 regNum, UINT32 dat)
UINT8 SSD_INDIRECT_MEMRB (UINT32 regNum)
UINT16 SSD_INDIRECT_MEMRW (UINT32 address)
UINT32 SSD_INDIRECT_MEMRL (UINT32 address)
void SSD_INDIRECT_MEMWB (UINT32 address, UINT8 dat)
void SSD_INDIRECT_MEMWW (UINT32 address, UINT16 dat)
void SSD_INDIRECT_MEMWL (UINT32 address, UINT32 dat)
UINT8 SSD_MEMRB (UINT32 memAddr)
UINT16 SSD_MEMRW (UINT32 memAddr)
UINT32 SSD_MEMRL (UINT32 memAddr)
UINT16 SSD_INDIRECT_REGRW (UINT32 regNum)
UINT32 SSD_INDIRECT_REGRL (UINT32 regNum)
void SSD_INDIRECT_MEMRB_burst (UINT32 address, UINT8 *pReadbackData, UINT32 count)
void SSD1928_CSUp (void)
void SSD1928_CSDown (void)
void ProcessIOCmd (ioCmdType *ioReq)
void SSD_REGWB_mod (UINT32 regNum, UINT8 mod, UINT8 value)
void SSD_REGWW_RB_mod (UINT32 regNum, UINT8 mod, UINT16 value)
void SSD_REGWW_mod (UINT32 regNum, UINT8 mod, UINT16 value)

Define Documentation

#define __inline__
#define __SSD1921
#define GPIO_INDIRECT_ADDRESS_MODE_16
#define MAX_MEM_SIZE   (512*1024)
#define MAX_REG_SIZE   (512*1024)
#define mdelay ( x   )     delay_ms(x)
#define NULL   0
#define PORTD_BEEP   19

Referenced by GPIOInit().

#define PORTD_CS   23

Referenced by GPIOInit().

#define PORTD_DATA   0
#define PORTD_DC   24
#define PORTD_LCDPOWER   22

Referenced by DisconnectSSD192x(), and main().

#define PORTD_P017   17
#define PORTD_P018   18
#define PORTD_P027   27
#define PORTD_P028   28
#define PORTD_P029   29
#define PORTD_RD   16

Referenced by GPIOInit().

#define PORTD_SSD1928_RESET   25

Referenced by DisconnectSSD192x(), GPIOInit(), main(), and SSD1928Init().

#define PORTD_WR   21

Referenced by GPIOInit().

#define SSD192X_MEMB ( x   )     (*((volatile unsigned char *)(SSD_MAP_MEM+(x))))
#define SSD192X_MEML ( x   )     (*((volatile unsigned long *)(SSD_MAP_MEM+(x))))
#define SSD192X_MEMW ( x   )     (*((volatile unsigned short *)(SSD_MAP_MEM+(x))))
#define SSD_IOB ( x   )     (*((volatile unsigned char *)(SSD_MAP_IO+(x))))
#define SSD_IOL ( x   )     (*((volatile unsigned long *)(SSD_MAP_IO+(x))))
#define SSD_IOW ( x   )     (*((volatile unsigned short *)(SSD_MAP_IO+(x))))
#define SSD_MAP_IO   0x83800000
#define SSD_MAP_MEM   0x83880000
#define SSD_MEMB ( x   )     (*((volatile unsigned char *)(SSD_MAP_MEM+(x))))
#define SSD_MEML ( x   )     (*((volatile unsigned long *)(SSD_MAP_MEM+(x))))
#define SSD_MEMRB   SSD_INDIRECT_MEMRB

Referenced by main(), Write_JPEG_data_to_192x(), Write_JPEG_data_to_SD(), and WriteToEEFromSSDMem().

#define SSD_MEMRB_burst   SSD_INDIRECT_MEMRB_burst
#define SSD_MEMRL   SSD_INDIRECT_MEMRL

Referenced by WriteToEEFromSSDMem().

#define SSD_MEMRW   SSD_INDIRECT_MEMRW

Referenced by main().

#define SSD_MEMW ( x   )     (*((volatile unsigned short *)(SSD_MAP_MEM+(x))))
#define SSD_MEMWB   SSD_INDIRECT_MEMWB

Referenced by CharToCursorMem(), and CurShapeToSSDMem().

#define SSD_MEMWL   SSD_INDIRECT_MEMWL
#define SSD_MEMWW   SSD_INDIRECT_MEMWW

Referenced by CharTo16bppMem(), ClearDisplay(), ssd_2d_rect(), and ssd_window_create_with_memory().

#define SSD_REGRB   SSD_INDIRECT_REGRB

Referenced by calcHdpAndDiff(), Card_Detect(), DisplayOnOff(), EEToSSDReg(), get_cardstatus(), jpeg_disable(), jpeg_header_decoding_done(), jpeg_wait_decode_completion(), main(), SD_Clck_Ctrl(), SD_Clck_Off(), SD_Get_CSD(), SD_Host_Ctrl(), SD_Power_On(), SD_read(), SD_read_multiple(), SD_reset(), SD_reset_inhibit_DAT(), SD_reset_quick(), SD_Send_CMD(), SD_wait_cmd_complete_val(), SD_wait_cmd_resp_check(), SD_write(), Set_JPEG_Encode_Registers(), setHdpAndDiff(), ssd192X_cursor_init_from_onchip_memory(), ssd192X_lcd_init(), Start_JPEG_Encode(), and WAIT_2D().

#define SSD_REGRL   SSD_INDIRECT_REGRL

Referenced by SD_get_response(), SD_read_multiple(), SSD1928Init(), Start_JPEG_Encode(), Write_JPEG_data_to_192x(), and Write_JPEG_data_to_SD().

#define SSD_REGRW   SSD_INDIRECT_REGRW

Referenced by get_cardstatus(), jpeg_get_height(), jpeg_get_width(), main(), and SD_read_multiple().

#define SSD_REGWB   SSD_INDIRECT_REGWB

Referenced by DisplayOnOff(), EEToSSDReg(), EnterISPMode(), get_cardstatus(), jpeg_codec_enable(), jpeg_codec_init(), jpeg_disable(), main(), PlayMJPEG(), SD_Clck_Ctrl(), SD_Clck_Off(), SD_clear_int_1130(), SD_clear_int_1132(), SD_Get_CSD(), SD_Host_Ctrl(), SD_Power_Off(), SD_Power_On(), SD_read(), SD_read_multiple(), SD_reset(), SD_reset_quick(), SD_Send_CMD(), SD_set_block_size(), SD_set_transfer_mode(), SD_write(), Set_JPEG_Encode_Registers(), set_SD_parameters(), setHdpAndDiff(), SSD1928Init(), ssd192X_2d_blt(), ssd192X_2d_stretch(), ssd192X_cursor_lut_base(), ssd192x_jpeg_init(), ssd192X_lcd_init(), ssd_2d_arc(), ssd_2d_line(), ssd_mem_dma_copy(), ssd_set_16bbp_dst_mode(), ssd_set_16bbp_src_mode(), ssd_set_2d_rgb_reg(), ssd_start_fifo(), Start_JPEG_Encode(), and StreamMJPEGFromUART().

#define SSD_REGWL   SSD_INDIRECT_REGWL

Referenced by jpeg_codec_init(), SD_read(), SD_read_multiple(), Set_JPEG_Encode_Registers(), ssd192X_2d_blt(), ssd192X_2d_stretch(), ssd192X_cursor_init_from_onchip_memory(), ssd192X_lcd_init(), ssd_2d_arc(), ssd_2d_line(), ssd_floatwin_init(), and ssd_mem_dma_copy().

#define SSD_REGWW   SSD_INDIRECT_REGWW

Referenced by get_cardstatus(), main(), SD_read(), SD_read_multiple(), SD_write(), Set_JPEG_Encode_Registers(), ssd192X_2d_blt(), ssd192X_2d_stretch(), ssd192X_cursor_attr(), ssd192X_cursor_init_from_onchip_memory(), ssd192X_cursor_lut_base(), ssd192X_cursor_moveto(), ssd192X_lcd_init(), ssd_2d_arc(), ssd_2d_line(), ssd_floatwin_init(), ssd_floatwin_move(), and ssd_mem_dma_copy().

#define udelay ( x   )     delay_us(x)

Typedef Documentation

typedef struct ioCmdTag ioCmdType

Enumeration Type Documentation

enum ioCmdEnum
Enumerator:
ioCmdSSD_EXIT_IOCMD_MODE
ioCmdSSD_MIN_VALUE
ioCmdSSD_REGRB
ioCmdSSD_REGRW
ioCmdSSD_REGRL
ioCmdSSD_REGWB
ioCmdSSD_REGWW
ioCmdSSD_REGWL
ioCmdSSD_MEMRB
ioCmdSSD_MEMRW
ioCmdSSD_MEMRL
ioCmdSSD_MEMWB
ioCmdSSD_MEMWW
ioCmdSSD_MEMWL
ioCmdSSD_MEMWW_Burst
ioCmdSSD_REGWB_mod_And
ioCmdSSD_REGWB_mod_Or
ioCmdSSD_REGWB_mod_Add
ioCmdSSD_REGWB_mod_Sub
ioCmdSSD_REGWW_RB_mod_And
ioCmdSSD_REGWW_RB_mod_Or
ioCmdSSD_REGWW_RB_mod_Add
ioCmdSSD_REGWW_RB_mod_Sub
ioCmdSSD_REGWW_mod_And
ioCmdSSD_REGWW_mod_Or
ioCmdSSD_REGWW_mod_Add
ioCmdSSD_REGWW_mod_Sub
ioCmdSSD_MAX_VALUE
enum ioCmdMod
Enumerator:
ioModAnd
ioModOr
ioModAdd
ioModSub

Function Documentation

void indirect_fast (  )

Referenced by main().

Here is the caller graph for this function:

UINT16 indirect_mem_readseek ( UINT32  address  )

Referenced by WriteToUARTFromSSD().

Here is the caller graph for this function:

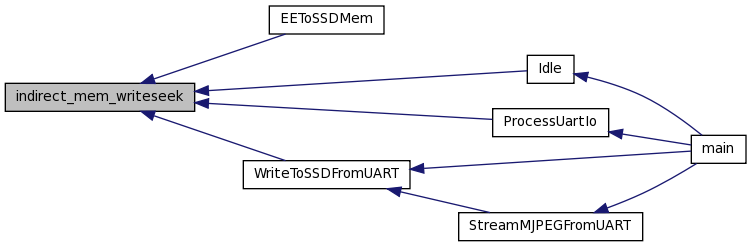

UINT16 indirect_mem_writeseek ( UINT32  address,
UINT8  byteWrite
)

Referenced by EEToSSDMem(), Idle(), ProcessUartIo(), and WriteToSSDFromUART().

Here is the caller graph for this function:

UINT16 indirect_reg_readWord (  )

Referenced by WriteToUARTFromSSD().

Here is the caller graph for this function:

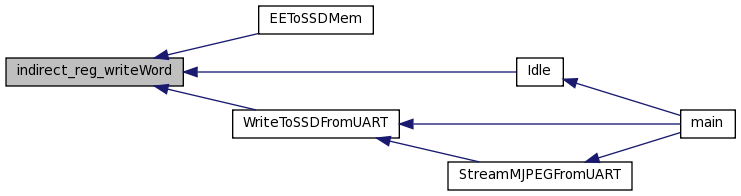

UINT16 indirect_reg_writeWord ( UINT16  value  )

Referenced by EEToSSDMem(), Idle(), and WriteToSSDFromUART().

Here is the caller graph for this function:

void indirect_slow (  )

Referenced by main().

Here is the caller graph for this function:

void indirect_WriteDataBus ( UINT16  value  )

Referenced by ProcessUartIo().

Here is the caller graph for this function:

void ProcessIOCmd ( ioCmdType *  ioReq  )

Referenced by ProcessUartIo().

Here is the caller graph for this function:

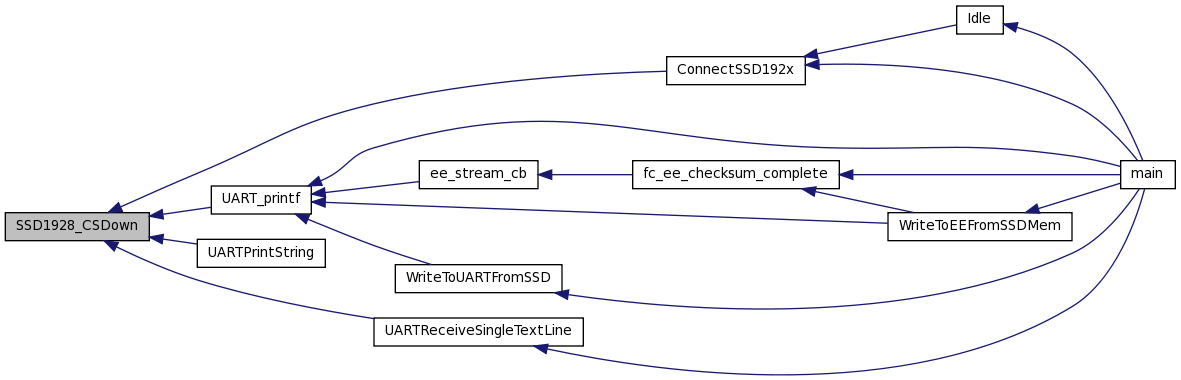

void SSD1928_CSDown ( void   )

Referenced by ConnectSSD192x(), UART_printf(), UARTPrintString(), and UARTReceiveSingleTextLine().

Here is the caller graph for this function:

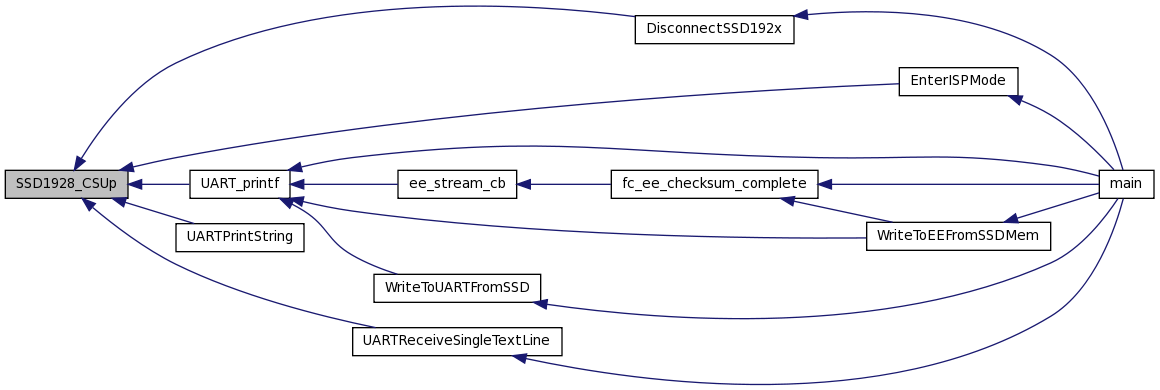

void SSD1928_CSUp ( void   )

Referenced by DisconnectSSD192x(), EnterISPMode(), UART_printf(), UARTPrintString(), and UARTReceiveSingleTextLine().

Here is the caller graph for this function:

UINT8 SSD_INDIRECT_MEMRB ( UINT32  regNum  )
void SSD_INDIRECT_MEMRB_burst ( UINT32  address,
UINT8 *  pReadbackData,
UINT32  count
)
UINT32 SSD_INDIRECT_MEMRL ( UINT32  address  )
UINT16 SSD_INDIRECT_MEMRW ( UINT32  address  )
void SSD_INDIRECT_MEMWB ( UINT32  address,
UINT8  dat
)
void SSD_INDIRECT_MEMWL ( UINT32  address,
UINT32  dat
)
void SSD_INDIRECT_MEMWW ( UINT32  address,
UINT16  dat
)
UINT8 SSD_INDIRECT_REGRB ( UINT32  regNum  )
UINT32 SSD_INDIRECT_REGRL ( UINT32  regNum  )
UINT16 SSD_INDIRECT_REGRW ( UINT32  regNum  )
void SSD_INDIRECT_REGWB ( UINT32  regNum,
UINT8  dat
)
void SSD_INDIRECT_REGWL ( UINT32  regNum,
UINT32  dat
)
void SSD_INDIRECT_REGWW ( UINT32  regNum,
UINT16  dat
)
UINT8 SSD_MEMRB ( UINT32  memAddr  )
UINT32 SSD_MEMRL ( UINT32  memAddr  )
UINT16 SSD_MEMRW ( UINT32  memAddr  )

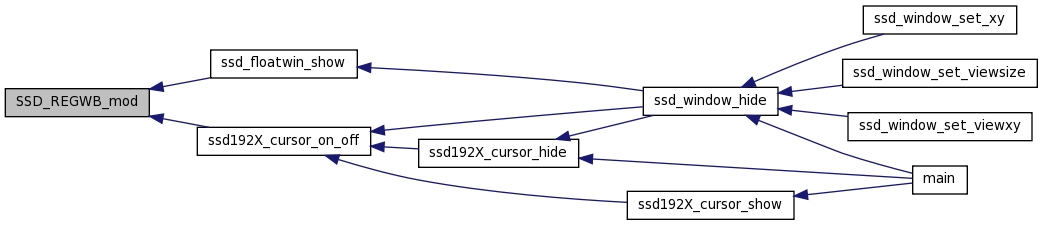

void SSD_REGWB_mod ( UINT32  regNum,
UINT8  mod,
UINT8  value
)

Referenced by ssd192X_cursor_on_off(), and ssd_floatwin_show().

Here is the caller graph for this function:

void SSD_REGWW_mod ( UINT32  regNum,
UINT8  mod,
UINT16  value
)
void SSD_REGWW_RB_mod ( UINT32  regNum,
UINT8  mod,
UINT16  value
)
