capi/widgets.c File Reference

#include "widgets.h"
#include "types.h"
#include "window.h"
#include "2d.h"
#include "key.h"
#include "trace.h"

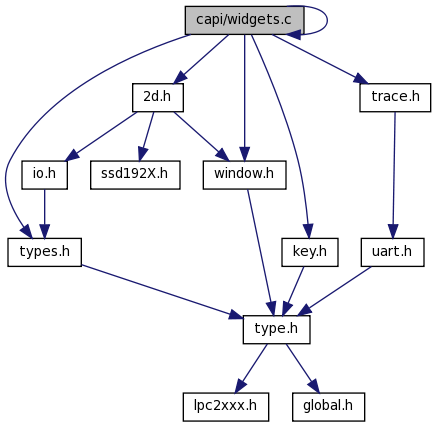

Include dependency graph for widgets.c:

This graph shows which files directly or indirectly include this file:

Functions
void	MoveSelLeft (widgetDataType *pwd, UINT16 *pCurSel)
void	MoveSelRight (widgetDataType *pwd, UINT16 *pCurSel)
void	MoveSelUp (widgetDataType *pwd, UINT16 *pCurSel)
void	MoveSelDown (widgetDataType *pwd, UINT16 *pCurSel)
void	MoveSelWithKey (widgetDataType *pwd, UINT8 keyDir, UINT16 *pCurSel)
void	DrawWidgets (WINDOW *pWnd, const widgetDataType *pwdArray, UINT16 count, funcDraw fc, ULONG customData)
Variables
LineToType	spinUpShape []

---

Function Documentation

void DrawWidgets	(	WINDOW *	pWnd,
		const widgetDataType *	pwdArray,
		UINT16	count,
		funcDraw	fc,
		ULONG	customData
	)

References FLASH_IMAGE, widgetDataType::height, HFLIP_ROT90, RADIO_BUTTON, ROT90, SPIN_DOWN, SPIN_UP, spinUpShape, ssd_2d_rect_outline(), TEXT, TRACE5, widgetDataType::type, widgetDataType::width, widgetDataType::x, and widgetDataType::y.

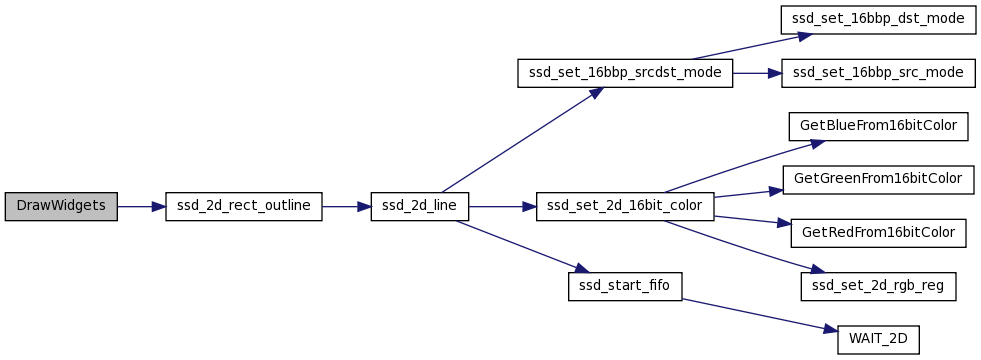

Here is the call graph for this function:

void MoveSelDown	(	widgetDataType *	pwd,
		UINT16 *	pCurSel
	)

References abs, widgetDataType::id, widgetDataType::x, and widgetDataType::y.

Referenced by MoveSelWithKey().

Here is the caller graph for this function:

void MoveSelLeft	(	widgetDataType *	pwd,
		UINT16 *	pCurSel
	)

References abs, widgetDataType::id, widgetDataType::x, and widgetDataType::y.

Referenced by MoveSelWithKey().

Here is the caller graph for this function:

void MoveSelRight	(	widgetDataType *	pwd,
		UINT16 *	pCurSel
	)

References abs, widgetDataType::id, widgetDataType::x, and widgetDataType::y.

Referenced by MoveSelWithKey().

Here is the caller graph for this function:

void MoveSelUp	(	widgetDataType *	pwd,
		UINT16 *	pCurSel
	)

References abs, widgetDataType::id, widgetDataType::x, and widgetDataType::y.

Referenced by MoveSelWithKey().

Here is the caller graph for this function:

void MoveSelWithKey	(	widgetDataType *	pwd,
		UINT8	keyDir,
		UINT16 *	pCurSel
	)

References MoveSelDown(), MoveSelLeft(), MoveSelRight(), MoveSelUp(), VK_2, VK_3, VK_4, and VK_5.

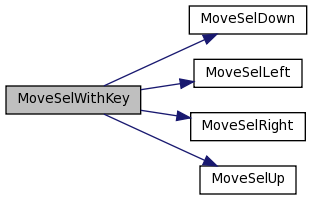

Here is the call graph for this function:

---

Variable Documentation

LineToType spinUpShape[]

Initial value:

{
  {-10, 0}, {0, -2}, {8, -8}, {2, 0}, {8, 8}, {0, 2}, {-10, 0}, {0, 0}
}

Referenced by DrawWidgets().
