capi/2d.h File Reference

#include "io.h"
#include "ssd192X.h"
#include "window.h"

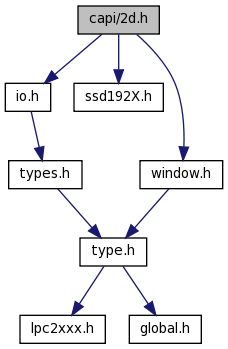

Include dependency graph for 2d.h:

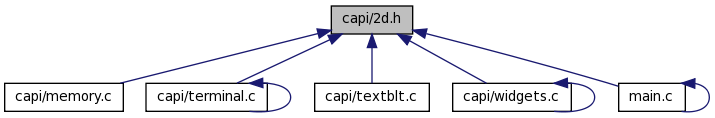

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	_2d_cmd
Defines
#define	SSD192X_DISPLAYMODE_RGB16   0
#define	SSD192X_DISPLAYMODE_RGB32   1
#define	SSD192X_DISPLAYMODE_YUV   2
#define	SSD192X_DISPLAYMODE_RGB1   4
#define	SSD192X_DISPLAYMODE_RGB8   5
#define	SSD192X_DISPLAYMODE_RGB2   6
#define	SSD192X_ROTATE_NONE   0
#define	SSD192X_ROTATE_VFLIP   1
#define	SSD192X_ROTATE_HFLIP   2
#define	SSD192X_ROTATE_VHFLIP   3
#define	SSD192X_ROTATE_HFLIP_ROT90   4
#define	SSD192X_ROTATE_ROT90   5
#define	SSD192X_ROTATE_ROT270   6
#define	SSD192X_ROTATE_HFLIP_ROT270   7
Typedefs
typedef struct _2d_cmd	D2D_CMD
Enumerations
enum	ROTATE_TYPE {   NONE = 0, VFLIP = 0x10, HFLIP = 0x40, VHFLIP = 0x50,   HFLIP_ROT90 = 0xa0, ROT90 = 0xb0, ROT270 = 0xe0, HFLIP_ROT270 = 0xf0,   TRANSPARENT = 0x01 }
enum	CMD_TYPE {   DRAW_LINE = 1, DRAW_ELLIPSE = 3, BLIT_TRANS = 4, BLIT_BIT = 5,   CLUT_SET = 6, ALPHABLEND = 7, BLIT_STRETCH = 8, BLIT_PATTERN = 9 }
enum	ERROR_CODE {   _NO_ERROR = 0, BOUNDARY_ERROR = 1, NEGATIVE_REGVAL_ERROR = 2, MODE_ERROR_1 = 3,   MODE_ERROR_2 = 4, OVERLAP_ERROR = 5, STRETCH_RATIO_ERROR = 6, SET_MODE_ERROR = 7 }
enum	SRCDST_MODE {   MODE_16BIT = 0, MODE_32BIT = 1, MODE_YUV = 2, MODE_1BIT = 3,   MODE_8BIT = 4 }
Functions
void	WAIT_2D (void)
void	ssd_set_16bbp_srcdst_mode ()
void	ssd_2d_line (WINDOW *pWnd, UINT16 x1, UINT16 y1, UINT16 x2, UINT16 y2, UINT16 c)
void	ssd_2d_arc (WINDOW *pWnd, UINT16 x1, UINT16 y1, UINT16 rx, UINT16 ry, UINT16 startAng, UINT16 endAng, UINT16 c)
void	ssd_2d_blt (WINDOW *pSrcWnd, UINT16 x1, UINT16 y1, UINT16 srcWidth, UINT16 srcHeight, WINDOW *pDstWnd, UINT16 x2, UINT16 y2, UINT16 dstWidth, UINT16 dstHeight, ROTATE_TYPE orient)
void	ssd_2d_rect (WINDOW *pWnd, INT32 x, INT32 y, INT32 x2, INT32 y2, UINT16 rgb16Colour)
void	ssd_2d_rect_outline (WINDOW *pWnd, INT32 x, INT32 y, INT32 x2, INT32 y2, UINT16 rgb16Colour)
void	ssd192X_2d_rect (WINDOW *pWnd, INT32 x, INT32 y, INT32 x2, INT32 y2, UINT16 rgb16Colour)
void	ssd192X_2d_stretch (INT32 SRC_STARTADDR, UINT16 SRC_LINEWIDTH, UINT16 SRC_WIDTH, UINT16 SRC_HEIGHT, INT32 DEST_STARTADDR, UINT16 DEST_LINEWIDTH, UINT16 DEST_WIDTH, UINT16 DEST_HEIGHT, UINT8 ORIENT)
void	ssd192X_2d_blt (INT32 SRC_STARTADDR, UINT16 SRC_LINEWIDTH, UINT16 SRC_WIDTH, UINT16 SRC_HEIGHT, INT32 DEST_STARTADDR, UINT16 DEST_LINEWIDTH, ROTATE_TYPE orient)
void	ClearDisplay (int DEST_STARTADDR, int DEST_LINEWIDTH, int DEST_WIDTH, int DEST_HEIGHT)

---

Define Documentation

#define SSD192X_DISPLAYMODE_RGB1   4

#define SSD192X_DISPLAYMODE_RGB16   0

Referenced by main().

#define SSD192X_DISPLAYMODE_RGB2   6

Referenced by main().

#define SSD192X_DISPLAYMODE_RGB32   1

#define SSD192X_DISPLAYMODE_RGB8   5

#define SSD192X_DISPLAYMODE_YUV   2

Referenced by ssd_window_create().

#define SSD192X_ROTATE_HFLIP   2

#define SSD192X_ROTATE_HFLIP_ROT270   7

#define SSD192X_ROTATE_HFLIP_ROT90   4

#define SSD192X_ROTATE_NONE   0

#define SSD192X_ROTATE_ROT270   6

#define SSD192X_ROTATE_ROT90   5

#define SSD192X_ROTATE_VFLIP   1

#define SSD192X_ROTATE_VHFLIP   3

---

Typedef Documentation

typedef struct _2d_cmd D2D_CMD

---

Enumeration Type Documentation

enum CMD_TYPE

Enumerator:

DRAW_LINE
DRAW_ELLIPSE
BLIT_TRANS
BLIT_BIT
CLUT_SET
ALPHABLEND
BLIT_STRETCH
BLIT_PATTERN

enum ERROR_CODE

Enumerator:

_NO_ERROR
BOUNDARY_ERROR
NEGATIVE_REGVAL_ERROR
MODE_ERROR_1
MODE_ERROR_2
OVERLAP_ERROR
STRETCH_RATIO_ERROR
SET_MODE_ERROR

enum ROTATE_TYPE

Enumerator:

NONE
VFLIP
HFLIP
VHFLIP
HFLIP_ROT90
ROT90
ROT270
HFLIP_ROT270
TRANSPARENT

enum SRCDST_MODE

Enumerator:

MODE_16BIT
MODE_32BIT
MODE_YUV
MODE_1BIT
MODE_8BIT

---

Function Documentation

void ClearDisplay	(	int	DEST_STARTADDR,
		int	DEST_LINEWIDTH,
		int	DEST_WIDTH,
		int	DEST_HEIGHT
	)

References ssd192X_2d_stretch(), and SSD_MEMWW.

Referenced by main().

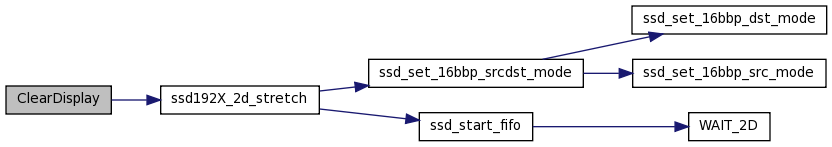

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd192X_2d_blt	(	INT32	SRC_STARTADDR,
		UINT16	SRC_LINEWIDTH,
		UINT16	SRC_WIDTH,
		UINT16	SRC_HEIGHT,
		INT32	DEST_STARTADDR,
		UINT16	DEST_LINEWIDTH,
		ROTATE_TYPE	orient
	)

References BLIT_BIT, BLIT_TRANS, REG_2D_CMD_2, REG_2D_DEST_WND_ADDR_OFFSET0, REG_2D_DEST_WND_START_ADDR0, REG_2D_SRC_WND_ADDR_OFFSET0, REG_2D_SRC_WND_HEIGHT0, REG_2D_SRC_WND_START_ADDR0, REG_2D_SRC_WND_WIDTH0, SSD_REGWB, SSD_REGWL, SSD_REGWW, ssd_set_16bbp_srcdst_mode(), ssd_set_2d_rgb_reg(), ssd_start_fifo(), and TRANSPARENT.

Referenced by ssd_2d_blt().

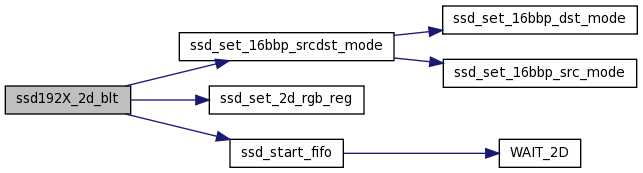

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd192X_2d_rect	(	WINDOW *	pWnd,
		INT32	x,
		INT32	y,
		INT32	x2,
		INT32	y2,
		UINT16	rgb16Colour
	)

void ssd192X_2d_stretch	(	INT32	SRC_STARTADDR,
		UINT16	SRC_LINEWIDTH,
		UINT16	SRC_WIDTH,
		UINT16	SRC_HEIGHT,
		INT32	DEST_STARTADDR,
		UINT16	DEST_LINEWIDTH,
		UINT16	DEST_WIDTH,
		UINT16	DEST_HEIGHT,
		UINT8	ORIENT
	)

References BLIT_STRETCH, REG_2D_CMD_2, REG_2D_DEST_WND_ADDR_OFFSET0, REG_2D_DEST_WND_HEIGHT0, REG_2D_DEST_WND_START_ADDR0, REG_2D_DEST_WND_WIDTH0, REG_2D_SRC_WND_ADDR_OFFSET0, REG_2D_SRC_WND_HEIGHT0, REG_2D_SRC_WND_START_ADDR0, REG_2D_SRC_WND_WIDTH0, SSD_REGWB, SSD_REGWL, SSD_REGWW, ssd_set_16bbp_srcdst_mode(), and ssd_start_fifo().

Referenced by ClearDisplay(), ssd_2d_blt(), and ssd_2d_rect().

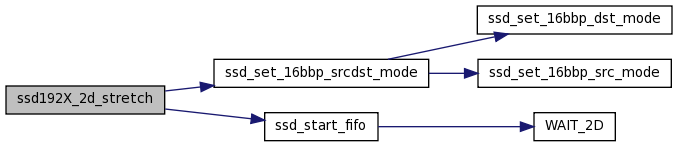

Here is the call graph for this function:

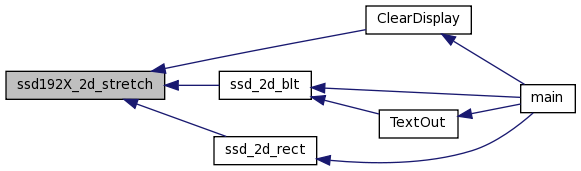

Here is the caller graph for this function:

void ssd_2d_arc	(	WINDOW *	pWnd,
		UINT16	x1,
		UINT16	y1,
		UINT16	rx,
		UINT16	ry,
		UINT16	startAng,
		UINT16	endAng,
		UINT16	c
	)

References DRAW_ELLIPSE, _WINDOW::height, _WINDOW::mem_ssdoffset, REG_2D_CMD_2, REG_2D_DEST_WND_ADDR_OFFSET0, REG_2D_DEST_WND_HEIGHT0, REG_2D_DEST_WND_START_ADDR0, REG_2D_DEST_WND_WIDTH0, REG_2D_SRC_WND_ADDR_OFFSET0, REG_2D_SRC_WND_HEIGHT0, REG_2D_SRC_WND_START_ADDR0, REG_2D_SRC_WND_WIDTH0, SSD_REGWB, SSD_REGWL, SSD_REGWW, ssd_set_16bbp_srcdst_mode(), ssd_set_2d_16bit_color(), ssd_start_fifo(), and _WINDOW::width.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd_2d_blt	(	WINDOW *	pSrcWnd,
		UINT16	x1,
		UINT16	y1,
		UINT16	srcWidth,
		UINT16	srcHeight,
		WINDOW *	pDstWnd,
		UINT16	x2,
		UINT16	y2,
		UINT16	dstWidth,
		UINT16	dstHeight,
		ROTATE_TYPE	orient
	)

void ssd_2d_line	(	WINDOW *	pWnd,
		UINT16	x1,
		UINT16	y1,
		UINT16	x2,
		UINT16	y2,
		UINT16	c
	)

References DRAW_LINE, _WINDOW::mem_ssdoffset, REG_2D_CMD_2, REG_2D_DEST_WND_ADDR_OFFSET0, REG_2D_DEST_WND_HEIGHT0, REG_2D_DEST_WND_START_ADDR0, REG_2D_DEST_WND_WIDTH0, REG_2D_SRC_WND_ADDR_OFFSET0, REG_2D_SRC_WND_HEIGHT0, REG_2D_SRC_WND_WIDTH0, SSD_REGWB, SSD_REGWL, SSD_REGWW, ssd_set_16bbp_srcdst_mode(), ssd_set_2d_16bit_color(), ssd_start_fifo(), and _WINDOW::width.

Referenced by main(), and ssd_2d_rect_outline().

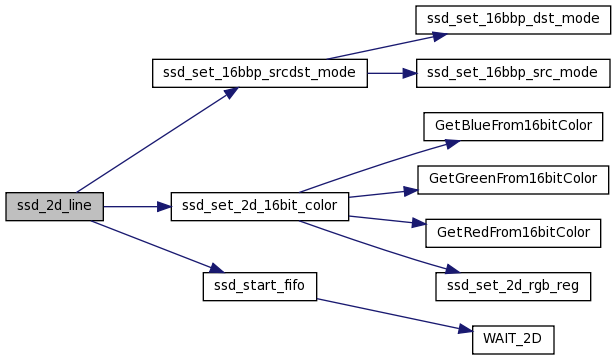

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd_2d_rect	(	WINDOW *	pWnd,
		INT32	x,
		INT32	y,
		INT32	x2,
		INT32	y2,
		UINT16	rgb16Colour
	)

References abs, ssd192X_2d_stretch(), ssd_calc_start_addr(), ssd_calc_start_addr_direct(), SSD_MEMWW, and _WINDOW::width.

Referenced by main().

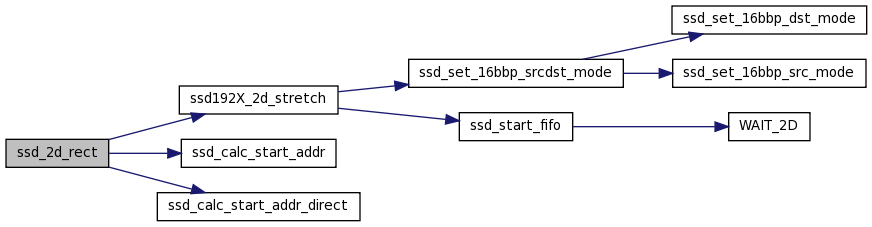

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd_2d_rect_outline	(	WINDOW *	pWnd,
		INT32	x,
		INT32	y,
		INT32	x2,
		INT32	y2,
		UINT16	rgb16Colour
	)

References ssd_2d_line().

Referenced by DrawWidgets(), and main().

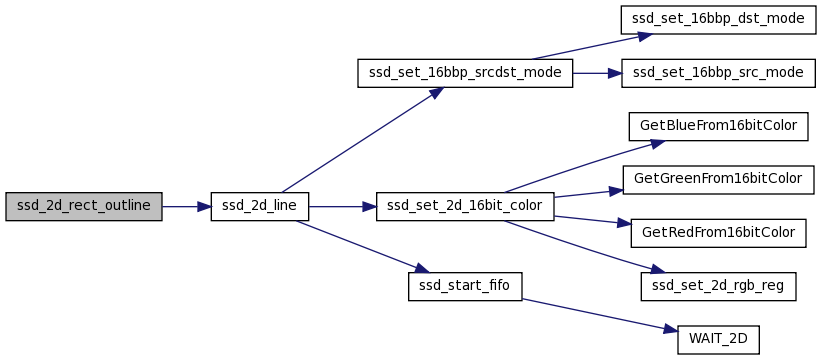

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd_set_16bbp_srcdst_mode

(

)

References MODE_16BIT, ssd_set_16bbp_dst_mode(), and ssd_set_16bbp_src_mode().

Referenced by main(), ssd192X_2d_blt(), ssd192X_2d_stretch(), ssd_2d_arc(), and ssd_2d_line().

Here is the call graph for this function:

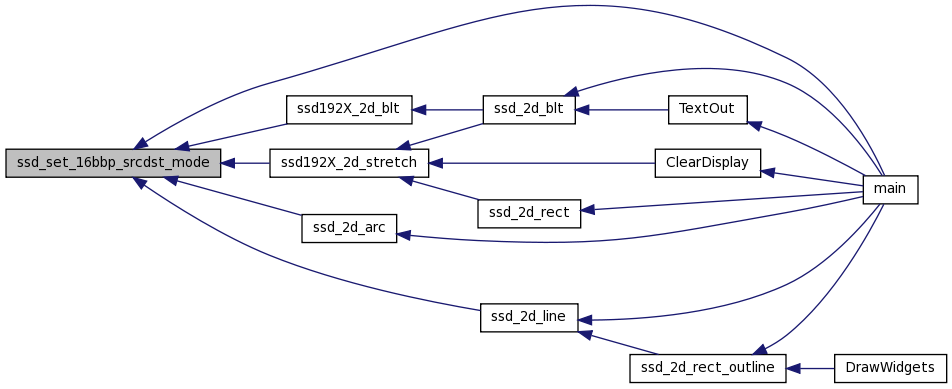

Here is the caller graph for this function:

void WAIT_2D

(

void

)

References REG_2D_CMD_FIFO_FLAG, and SSD_REGRB.

Referenced by ssd_mem_dma_copy(), and ssd_start_fifo().

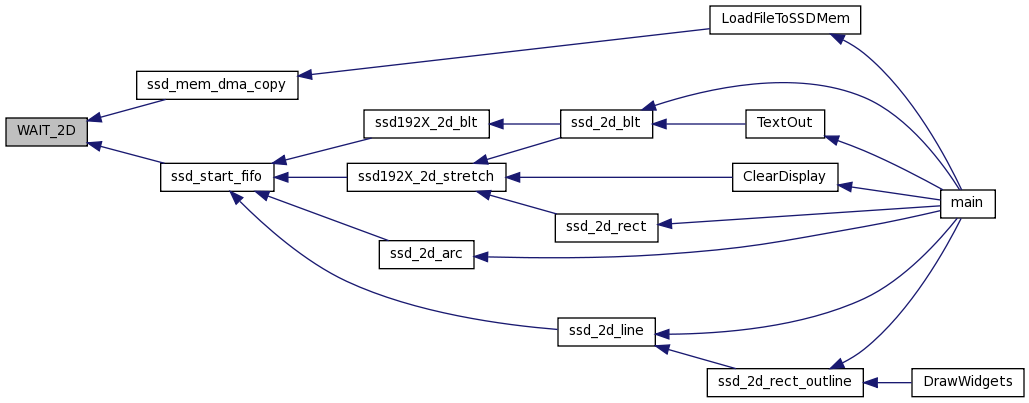

Here is the caller graph for this function:
