capi/armVIC.h File Reference

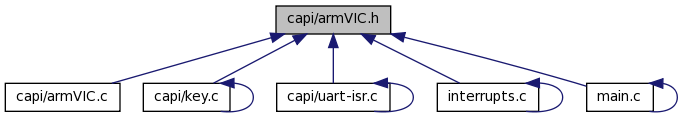

This graph shows which files directly or indirectly include this file:

Defines
#define	__VIC_CNTL(idx) VICVectCntl##idx
#define	__VIC_ADDR(idx) VICVectAddr##idx
#define	_VIC_CNTL(idx) __VIC_CNTL(idx)
#define	_VIC_ADDR(idx) __VIC_ADDR(idx)
#define	ISR_ENTRY()
#define	ISR_EXIT()
Functions
unsigned	disableIRQ (void)
unsigned	enableIRQ (void)
unsigned	restoreIRQ (unsigned oldCPSR)
unsigned	disableFIQ (void)
unsigned	enableFIQ (void)
unsigned	restoreFIQ (unsigned oldCPSR)

Define Documentation

#define __VIC_ADDR ( idx ) VICVectAddr##idx

#define __VIC_CNTL ( idx ) VICVectCntl##idx

#define _VIC_ADDR ( idx ) __VIC_ADDR(idx)

Referenced by ADC_Init(), timer2_init(), and uart0_init_IRQ().

#define _VIC_CNTL ( idx ) __VIC_CNTL(idx)

Referenced by ADC_Init(), timer2_init(), uart0_init_IRQ(), and uart0_start_stop_IRQ().

#define ISR_ENTRY ( )

Value:

asm volatile(" sub   lr, lr,#4\n" \
                                 " stmfd sp!,{r0-r12,lr}\n" \
                                 " mrs   r1, spsr\n" \
                                 " stmfd sp!,{r1}")

Referenced by adcISR0(), timer2_ISR(), timer_ISR(), and uart0_ISR().

#define ISR_EXIT ( )

Value:

asm volatile(" ldmfd sp!,{r1}\n" \
                                 " msr   spsr_c,r1\n" \
                                 " ldmfd sp!,{r0-r12,pc}^")

Referenced by adcISR0(), timer2_ISR(), timer_ISR(), and uart0_ISR().
