capi/panel.c File Reference

#include "io.h"
#include "ssd192X.h"
#include "msg.h"
#include "eeprom.h"
#include "system.h"
#include "config-flash.h"
#include "trace.h"

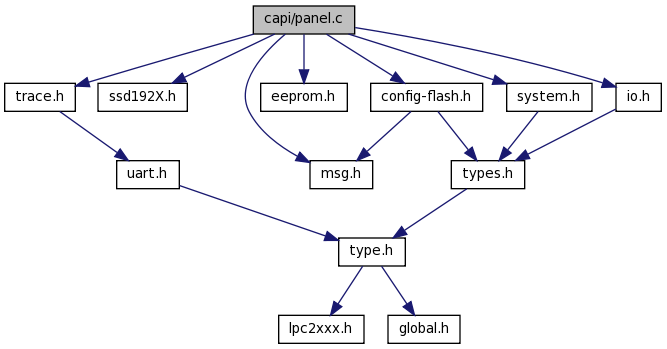

Include dependency graph for panel.c:

Defines
#define	DEBUG
#define	REG_DEFINE_END   0xffff
Functions
UINT32	SSD1928Init (void)
void	calcHdpAndDiff (INT32 bpp, int *hdp, int *diff)
void	setHdpAndDiff (INT32 bpp)
void	ssd192X_lcd_init (UINT32 startaddr, INT32 linewidth, INT32 bpp, INT32 orient, INT32 rgb)
Variables
const INT32	lcd_init [][2]

---

Define Documentation

#define DEBUG

#define REG_DEFINE_END   0xffff

Referenced by ssd192x_jpeg_init().

---

Function Documentation

void calcHdpAndDiff	(	INT32	bpp,
		int *	hdp,
		int *	diff
	)

References REG_HDP, ROUNDUP, and SSD_REGRB.

Referenced by setHdpAndDiff().

Here is the caller graph for this function:

void setHdpAndDiff

(

INT32

bpp

)

References calcHdpAndDiff(), REG_HDP, REG_HORIZ_TOTAL_0, SSD_REGRB, and SSD_REGWB.

Here is the call graph for this function:

UINT32 SSD1928Init

(

void

)

References delay_ms(), EEToSSDReg(), FIOSET, LCD_Init(), LCDInitOff, PORTD_SSD1928_RESET, SSD_REGRL, SSD_REGWB, and TRACE1.

Referenced by main().

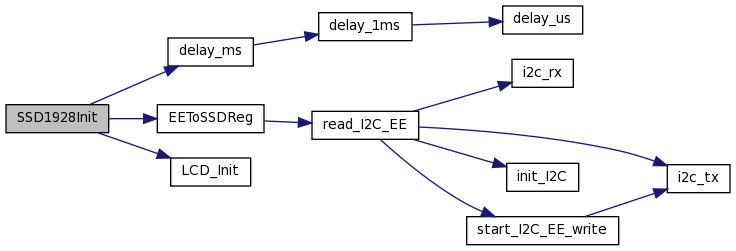

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd192X_lcd_init	(	UINT32	startaddr,
		INT32	linewidth,
		INT32	bpp,
		INT32	orient,
		INT32	rgb
	)

References REG_DISPLAY_MODE, REG_MAIN_WIN_ADDR_OFFSET0, REG_MAIN_WIN_DISP_START_ADDR0, REG_POWER_SAVE_CONFIG, REG_SPECIAL_EFFECTS, ROUNDUP, SSD_REGRB, SSD_REGWB, SSD_REGWL, and SSD_REGWW.

Referenced by ssd_window_hide().

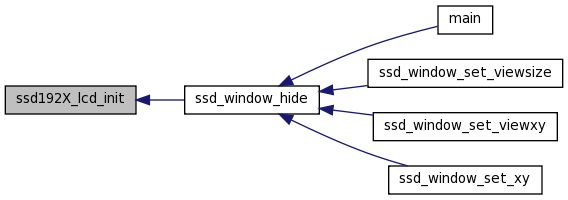

Here is the caller graph for this function:

---

Variable Documentation

const INT32 lcd_init[][2]
