capi/ssd192X.h File Reference

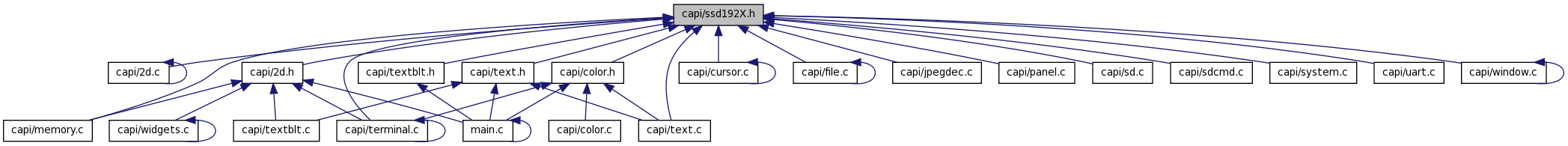

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  SSDRGBType
struct  SSDRGBAType

Defines

#define RGB16bpp(r, g, b)   ((g & 0x7) << 5 | (b & 0x1f)) << 8 | (((r & 0x1f) <<3) | ((g & 0x38)>>3))
#define RGB16bpp1(r, g, b)   ((r & 0x7) << 5 | (g & 0x1f))
#define RGB16bpp2(r, g, b)   (((b & 0x1f) <<3) | ((r & 0x38)>>3))
#define MakeRGB16bpp(rgb)   RGB16bpp(rgb.r, rgb.g, rgb.b)
#define MODE_2D_16bpp   0x0
#define MODE_2D_32bpp   0x1
#define MODE_2D_YUV   0x2
#define MODE_2D_1bpp   0x4
#define MODE_2D_8bpp   0x5
#define REG_DISP_BUFFER_SIZE   0x01
#define REG_CONFIG_READBACK   0x02
#define REG_REVISION_CODE   0x03
#define REG_MEMCLK_CONFIG   0x04
#define REG_PCLK_CONFIG   0x05
#define REG_VCLK_CONFIG_0   0x06
#define REG_VCLK_CONFIG_1   0x07
#define REG_LUT_BLUE_WRITE_DATA   0x08
#define REG_LUT_GREEN_WRITE_DATA   0x09
#define REG_LUT_RED_WRITE_DATA   0x0a
#define REG_LUT_WRITE_ADDR   0x0b
#define REG_LUT_BLUE_READ_DATA   0x0c
#define REG_LUT_GREEN_READ_DATA   0x0d
#define REG_LUT_RED_READ_DATA   0x0e
#define REG_LUT_READ_ADDR   0x0f
#define REG_PANEL_TYPE   0x10
#define REG_MOD_RATE   0x11
#define REG_HORIZ_TOTAL_0   0x12
#define REG_HORIZ_TOTAL_1   0x13
#define REG_HDP   0x14
#define REG_HDP_START_POS0   0x16
#define REG_HDP_START_POS1   0x17
#define REG_VERT_TOTAL0   0x18
#define REG_VERT_TOTAL1   0x19
#define REG_VDP0   0x1c
#define REG_VDP1   0x1d
#define REG_VDP_START_POS0   0x1e
#define REG_VDP_START_POS1   0x1f
#define REG_HSYNC_PULSE_WIDTH   0x20
#define REG_LLINE_PULSE_START_SUBPIXEL_POS   0x21
#define REG_HSYNC_PULSE_START_POS0   0x22
#define REG_HSYNC_PULSE_START_POS1   0x23
#define REG_VSYNC_PULSE_WIDTH   0x24
#define REG_VSYNC_PULSE_START_POS0   0x26
#define REG_VSYNC_PULSE_START_POS1   0x27
#define REG_FPFRAME_START_OFFSET0   0x30
#define REG_FPFRAME_START_OFFSET1   0x31
#define REG_FPFRAME_STOP_OFFSET0   0x34
#define REG_FPFRAME_STOP_OFFSET1   0x35
#define REG_HRTFT_SPECIAL_OUTPUT   0x38
#define REG_GPIO1_PULSE_START   0x3c
#define REG_GPIO1_PULSE_STOP   0x3e
#define REG_GPIO2_PULSE_DELAY   0x40
#define REG_LCD_SUBPIXEL_ALIGNMENT   0x42
#define REG_STN_COLOR_DEPTH   0x45
#define REG_INTERRUPT_FLAG   0x48
#define REG_INTERRUPT_ENABLE   0x4A
#define REG_DYN_DITHER_CONTROL   0x50
#define REG_DISPLAY_MODE   0x70
#define REG_SPECIAL_EFFECTS   0x71
#define REG_MAIN_WIN_DISP_START_ADDR0   0x74
#define REG_MAIN_WIN_DISP_START_ADDR1   0x75
#define REG_MAIN_WIN_DISP_START_ADDR2   0x76
#define REG_MAIN_WIN_ADDR_OFFSET0   0x78
#define REG_MAIN_WIN_ADDR_OFFSET1   0x79
#define REG_FLOAT_WIN_DISP_START_ADDR0   0x7c
#define REG_FLOAT_WIN_DISP_START_ADDR1   0x7d
#define REG_FLOAT_WIN_DISP_START_ADDR2   0x7e
#define REG_FLOAT_WIN_ADDR_OFFSET0   0x80
#define REG_FLOAT_WIN_ADDR_OFFSET1   0x81
#define REG_FLOAT_WIN_X_START_POS0   0x84
#define REG_FLOAT_WIN_X_START_POS1   0x85
#define REG_FLOAT_WIN_Y_START_POS0   0x88
#define REG_FLOAT_WIN_Y_START_POS1   0x89
#define REG_FLOAT_WIN_X_END_POS0   0x8c
#define REG_FLOAT_WIN_X_END_POS1   0x8d
#define REG_FLOAT_WIN_Y_END_POS0   0x90
#define REG_FLOAT_WIN_Y_END_POS1   0x91
#define REG_POWER_SAVE_CONFIG   0xa0
#define REG_SOFTWARE_RESET   0xa2
#define REG_SCRATCH_PAD0   0xa4
#define REG_SCRATCH_PAD1   0xa5
#define REG_GPIO_CONFIG0   0xa8
#define REG_GPIO_CONFIG1   0xa9
#define REG_GPIO_STATUS_CONTROL0   0xac
#define REG_GPIO_STATUS_CONTROL1   0xad
#define REG_PWM_CV_CLOCK_CONTROL   0xb0
#define REG_PWM_CV_CLOCK_CONFIG   0xb1
#define REG_CV_CLOCK_BURST_LENGTH   0xb2
#define REG_PWM_CLOCK_DUTY_CYCLE   0xb3
#define REG_PWM1_CLOCK_CONTROL   0xb4
#define REG_PWM1_CLOCK_CONFIG   0xb5
#define REG_PWM1_CLOCK_DUTY_CYCLE   0xb7
#define REG_PWM2_CLOCK_CONTROL   0xb8
#define REG_PWM2_CLOCK_CONFIG   0xb9
#define REG_PWM2_CLOCK_DUTY_CYCLE   0xbb
#define REG_PWM3_CLOCK_CONTROL   0xbc
#define REG_PWM3_CLOCK_CONFIG   0xbd
#define REG_PWM3_CLOCK_DUTY_CYCLE   0xbf
#define CURSOR_NORMAL   0x00
#define CURSOR_INVERT   0xaa
#define REG_CURSOR_FEATURE   0xc0
#define REG_CURSOR1_BLINK_TOTAL0   0xc4
#define REG_CURSOR1_BLINK_TOTAL1   0xc5
#define REG_CURSOR1_BLINK_ON0   0xc8
#define REG_CURSOR1_BLINK_ON1   0xc9
#define REG_CURSOR1_MEM_START0   0xcc
#define REG_CURSOR1_MEM_START1   0xcd
#define REG_CURSOR1_MEM_START2   0xce
#define REG_CURSOR1_POSX0   0xd0
#define REG_CURSOR1_POSX1   0xd1
#define REG_CURSOR1_POSY0   0xd4
#define REG_CURSOR1_POSY1   0xd5
#define REG_CURSOR1_HORIZ_SIZE_0   0xd8
#define REG_CURSOR1_HORIZ_SIZE_1   0xd9
#define REG_CURSOR1_VERT_SIZE_0   0xdc
#define REG_CURSOR1_VERT_SIZE_1   0xdd
#define REG_CURSOR1_COL_IND1_0   0xe0
#define REG_CURSOR1_COL_IND1_1   0xe1
#define REG_CURSOR1_COL_IND1_2   0xe2
#define REG_CURSOR1_COL_IND1_3   0xe3
#define REG_CURSOR1_COL_IND2_0   0xe4
#define REG_CURSOR1_COL_IND2_1   0xe5
#define REG_CURSOR1_COL_IND2_2   0xe6
#define REG_CURSOR1_COL_IND2_3   0xe7
#define REG_CURSOR1_COL_IND3_0   0xe8
#define REG_CURSOR1_COL_IND3_1   0xe9
#define REG_CURSOR1_COL_IND3_2   0xea
#define REG_CURSOR1_COL_IND3_3   0xeb
#define REG_CURSOR2_BLINK_TOTAL0   0xec
#define REG_CURSOR2_BLINK_TOTAL1   0xed
#define REG_CURSOR2_BLINK_ON0   0xf0
#define REG_CURSOR2_BLINK_ON1   0xf1
#define REG_CURSOR2_MEM_START0   0xf4
#define REG_CURSOR2_MEM_START1   0xf5
#define REG_CURSOR2_MEM_START2   0xf6
#define REG_CURSOR2_POSX0   0xf8
#define REG_CURSOR2_POSX1   0xf9
#define REG_CURSOR2_POSY0   0xfc
#define REG_CURSOR2_POSY1   0xfd
#define REG_CURSOR2_HORIZ_SIZE_0   0x100
#define REG_CURSOR2_HORIZ_SIZE_1   0x101
#define REG_CURSOR2_VERT_SIZE_0   0x104
#define REG_CURSOR2_VERT_SIZE_1   0x105
#define REG_CURSOR2_COL_IND1_0   0x108
#define REG_CURSOR2_COL_IND1_1   0x109
#define REG_CURSOR2_COL_IND1_2   0x10a
#define REG_CURSOR2_COL_IND1_3   0x10b
#define REG_CURSOR2_COL_IND2_0   0x10c
#define REG_CURSOR2_COL_IND2_1   0x10d
#define REG_CURSOR2_COL_IND2_2   0x10e
#define REG_CURSOR2_COL_IND2_3   0x10f
#define REG_CURSOR2_COL_IND3_0   0x110
#define REG_CURSOR2_COL_IND3_1   0x111
#define REG_CURSOR2_COL_IND3_2   0x112
#define REG_CURSOR2_COL_IND3_3   0x113
#define REG_PLL_CLK_SET_0   0x126
#define REG_PLL_CLK_SET_1   0x127
#define REG_PLL_CLK_SET_2   0x12B
#define REG_MAIN_REFLESH   0x12c
#define REG_PCLK_FREQ_RATIO_0   0x158
#define REG_PCLK_FREQ_RATIO_1   0x159
#define REG_PCLK_FREQ_RATIO_2   0x15a
#define REG_DV_OP_MODE   0x160
#define REG_DV_FRAME_SAMPLING   0x161
#define REG_DV_NFRAME_POS_0   0x162
#define REG_DV_NFRAME_POS_1   0x163
#define REG_DV_JHORI_SIZE_0   0x164
#define REG_DV_JHORI_SIZE_1   0x165
#define REG_DV_JVERT_SIZE_0   0x168
#define REG_DV_JVERT_SIZE_1   0x169
#define REG_DV_JMEM_STR_0   0x16c
#define REG_DV_JMEM_STR_1   0x16d
#define REG_DV_JMEM_STR_2   0x16e
#define REG_DV_JMEM_STR_3   0x16f
#define REG_DV_VHDEC_RATIO   0x170
#define REG_DV_VVDEC_RATIO   0x171
#define REG_DV_JHDEC_RATIO   0x172
#define REG_DV_JVDEC_RATIO   0x173
#define REG_DV_HORI_PERIOD_0   0x174
#define REG_DV_HORI_PERIOD_1   0x175
#define REG_DV_HORI_MAX_0   0x17c
#define REG_DV_HORI_MAX_1   0x17d
#define REG_DV_VERT_MAX_0   0x180
#define REG_DV_VERT_MAX_1   0x181
#define REG_DV_HCROP_STR_0   0x184
#define REG_DV_HCROP_STR_1   0x185
#define REG_DV_VCROP_STR_0   0x188
#define REG_DV_VCROP_STR_1   0x189
#define REG_DV_HCROP_SIZE_0   0x18c
#define REG_DV_HCROP_SIZE_1   0x18d
#define REG_DV_VCROP_SIZE_0   0x190
#define REG_DV_VCROP_SIZE_1   0x191
#define REG_DV_FRAME_PULSE_WIDTH   0x194
#define REG_DV_VMEM_STR_ADDR1_0   0x19c
#define REG_DV_VMEM_STR_ADDR1_1   0x19d
#define REG_DV_VMEM_STR_ADDR1_2   0x19e
#define REG_DV_VMEM_STR_ADDR1_3   0x19f
#define REG_DV_VMEM_STR_ADDR2_0   0x1a0
#define REG_DV_VMEM_STR_ADDR2_1   0x1a1
#define REG_DV_VMEM_STR_ADDR2_2   0x1a2
#define REG_DV_VMEM_STR_ADDR2_3   0x1a3
#define REG_DV_OFORMAT   0x1a4
#define REG_DV_ALPHA   0x1a5
#define REG_DV_SUBPIXEL_MODE   0x1a5
#define REG_DV_CSC_MODE   0x1a8
#define REG_DV_Y   0x1a9
#define REG_DV_CB   0x1aa
#define REG_DV_CR   0x1ab
#define REG_DV_TV_0   0x1ac
#define REG_DV_TV_1   0x1ad
#define REG_DV_TV_2   0x1ae
#define REG_DV_ENB   0x1af
#define REG_DV_DV0_START_ADDR_0   0x1b0
#define REG_DV_DV0_START_ADDR_1   0x1b1
#define REG_DV_DV0_START_ADDR_2   0x1b2
#define REG_DV_DV1_START_ADDR_0   0x1b4
#define REG_DV_DV1_START_ADDR_1   0x1b5
#define REG_DV_DV1_START_ADDR_2   0x1b6
#define REG_2D_1d0   0x1d0
#define REG_2D_1d1   0x1d1
#define REG_2D_1d2   0x1d2
#define REG_2D_1d4   0x1d4
#define REG_2D_1d5   0x1d5
#define REG_2D_1d6   0x1d6
#define REG_2D_1d8   0x1d8
#define REG_2D_1d9   0x1d9
#define REG_2D_1dc   0x1dc
#define REG_2D_1dd   0x1dd
#define REG_2D_1de   0x1de
#define REG_2D_1e4   0x1e4
#define REG_2D_1e5   0x1e5
#define REG_2D_1e8   0x1e8
#define REG_2D_1e9   0x1e9
#define REG_2D_1ec   0x1ec
#define REG_2D_1ed   0x1ed
#define REG_2D_1f0   0x1f0
#define REG_2D_1f1   0x1f1
#define REG_2D_1f4   0x1f4
#define REG_2D_1f5   0x1f5
#define REG_2D_1f6   0x1f6
#define REG_2D_1f8   0x1f8
#define REG_2D_1f9   0x1f9
#define REG_2D_1fc   0x1fc
#define REG_2D_1fd   0x1fd
#define REG_2D_1fe   0x1fe
#define REG_2D_204   0x204
#define REG_2D_205   0x205
#define REG_2D_206   0x206
#define REG_2D_208   0x208
#define REG_2D_209   0x209
#define REG_2D_214   0x214
#define REG_2D_215   0x215
#define REG_2D_218   0x218
#define REG_2D_219   0x219
#define REG_2D_220   0x220
#define REG_2D_CMD_1   0x1d0
#define REG_2D_CMD_2   0x1d1
#define REG_2D_CMD_FIFO_STATUS   0x1d2
#define REG_2D_SRC_WND_START_ADDR0   0x1d4
#define REG_2D_SRC_WND_START_ADDR1   0x1d5
#define REG_2D_SRC_WND_START_ADDR2   0x1d6
#define REG_2D_SRC_WND_ADDR_OFFSET0   0x1d8
#define REG_2D_SRC_WND_ADDR_OFFSET1   0x1d9
#define REG_2D_SRC_WND_COLOR_MODE   0x1dc
#define REG_2D_DEST_WND_COLOR_MODE   0x1dd
#define REG_2D_SRC_WND_WIDTH0   0x1e4
#define REG_2D_SRC_WND_WIDTH1   0x1e5
#define REG_2D_SRC_WND_HEIGHT0   0x1e8
#define REG_2D_SRC_WND_HEIGHT1   0x1e9
#define REG_2D_DEST_WND_WIDTH0   0x1ec
#define REG_2D_DEST_WND_WIDTH1   0x1ed
#define REG_2D_DEST_WND_HEIGHT0   0x1f0
#define REG_2D_DEST_WND_HEIGHT1   0x1f1
#define REG_2D_DEST_WND_START_ADDR0   0x1f4
#define REG_2D_DEST_WND_START_ADDR1   0x1f5
#define REG_2D_DEST_WND_START_ADDR2   0x1f6
#define REG_2D_DEST_WND_ADDR_OFFSET0   0x1f8
#define REG_2D_DEST_WND_ADDR_OFFSET1   0x1f9
#define REG_2D_WRITE_PATTERN0   0x1fc
#define REG_2D_WRITE_PATTERN1   0x1fd
#define REG_2D_WRITE_PATTERN2   0x1fe
#define REG_2D_BRUSH_WND_START_ADDR0   0x204
#define REG_2D_BRUSH_WND_START_ADDR1   0x205
#define REG_2D_BRUSH_WND_START_ADDR2   0x206
#define REG_2D_BRUSH_WND_ADDR_OFFSET0   0x208
#define REG_2D_BRUSH_WND_ADDR_OFFSET1   0x209
#define REG_2D_BRUSH_WND_WIDTH0   0x214
#define REG_2D_BRUSH_WND_WIDTH1   0x215
#define REG_2D_BRUSH_WND_HEIGHT0   0x218
#define REG_2D_BRUSH_WND_HEIGHT1   0x219
#define REG_2D_CMD_FIFO_INT_EN   0x21c
#define REG_2D_CMD_FIFO_INT_STATUS   0x21e
#define REG_2D_CMD_FIFO_FLAG   0x220
#define REG_2D_CMD_FIFO_IND   0x222
#define REG_I2C_DATA_OUT   0x230
#define REG_I2C_CTL   0x231
#define REG_I2C_EN_OUT   0x232
#define REG_I2C_BAUD   0x233
#define REG_I2C_STATUS   0x234
#define REG_I2C_INTERRUPT   0x235
#define REG_I2C_DATA_READY   0x236
#define REG_I2C_DATA_IN   0x237
#define REG_Sub_mode   0x250
#define REG_Sub_CLK_Divide   0x252
#define REG_Sub_Hori_Size   0x254
#define REG_Sub_Vert_Size   0x25c
#define REG_Sub_Type   0x260
#define REG_Sub_Bpp   0x261
#define REG_Sub_TFT_Start   0x262
#define REG_Sub_SCLK_Divide   0x263
#define REG_Sub_Ctl_0   0x270
#define REG_Sub_Ctl_1   0x271
#define REG_Sub_YVU   0x268
#define REG_Sub_Y_Offset   0x269
#define REG_Sub_Cb_Offset   0x26a
#define REG_Sub_Cr_Offset   0x26b
#define REG_Sub_Data_0   0x26c
#define REG_Sub_Data_1   0x26d
#define REG_Sub_RS   0x26e
#define REG_Sub_Start_Adr_0   0x274
#define REG_Sub_Start_Adr_1   0x275
#define REG_Sub_Start_Adr_2   0x276
#define REG_Sub_Offset_0   0x278
#define REG_Sub_Offset_1   0x279
#define REG_Sub_Ready   0x27d
#define REG_LCD0_Rise_0   0x2b0
#define REG_LCD0_Rise_1   0x2b1
#define REG_LCD0_Fall_0   0x2b4
#define REG_LCD0_Fall_1   0x2b5
#define REG_LCD0_Period_0   0x2b8
#define REG_LCD0_Period_1   0x2b9
#define REG_LCD0_Ctl_0   0x2bc
#define REG_LCD0_Ctl_1   0x2bd
#define REG_LCD1_Rise_0   0x2c0
#define REG_LCD1_Rise_1   0x2c1
#define REG_LCD1_Fall_0   0x2c4
#define REG_LCD1_Fall_1   0x2c5
#define REG_LCD1_Period_0   0x2c8
#define REG_LCD1_Period_1   0x2c9
#define REG_LCD1_Ctl_0   0x2cc
#define REG_LCD1_Ctl_1   0x2cd
#define REG_LCD2_Rise_0   0x2d0
#define REG_LCD2_Rise_1   0x2d1
#define REG_LCD2_Fall_0   0x2d4
#define REG_LCD2_Fall_1   0x2d5
#define REG_LCD2_Period_0   0x2d8
#define REG_LCD2_Period_1   0x2d9
#define REG_LCD2_Ctl_0   0x2dc
#define REG_LCD2_Ctl_1   0x2dd
#define REG_LCD3_Rise_0   0x2e0
#define REG_LCD3_Rise_1   0x2e1
#define REG_LCD3_Fall_0   0x2e4
#define REG_LCD3_Fall_1   0x2e5
#define REG_LCD3_Period_0   0x2e8
#define REG_LCD3_Period_1   0x2e9
#define REG_LCD3_Ctl_0   0x2ec
#define REG_LCD3_Ctl_1   0x2ed
#define REG_LCD4_Rise_0   0x2f0
#define REG_LCD4_Rise_1   0x2f1
#define REG_LCD4_Fall_0   0x2f4
#define REG_LCD4_Fall_1   0x2f5
#define REG_LCD4_Period_0   0x2f8
#define REG_LCD4_Period_1   0x2f9
#define REG_LCD4_Ctl_0   0x2fc
#define REG_LCD4_Ctl_1   0x2fd
#define REG_LCD5_Rise_0   0x300
#define REG_LCD5_Rise_1   0x301
#define REG_LCD5_Fall_0   0x304
#define REG_LCD5_Fall_1   0x305
#define REG_LCD5_Period_0   0x308
#define REG_LCD5_Period_1   0x309
#define REG_LCD5_Ctl_0   0x30c
#define REG_LCD5_Ctl_1   0x30d
#define REG_LCD6_Rise_0   0x310
#define REG_LCD6_Rise_1   0x311
#define REG_LCD6_Fall_0   0x314
#define REG_LCD6_Fall_1   0x315
#define REG_LCD6_Period_0   0x318
#define REG_LCD6_Period_1   0x319
#define REG_LCD6_Ctl_0   0x31c
#define REG_LCD6_Ctl_1   0x31d
#define REG_LCD7_Rise_0   0x320
#define REG_LCD7_Rise_1   0x321
#define REG_LCD7_Fall_0   0x324
#define REG_LCD7_Fall_1   0x325
#define REG_LCD7_Period_0   0x328
#define REG_LCD7_Period_1   0x329
#define REG_LCD7_Ctl_0   0x32c
#define REG_LCD7_Ctl_1   0x32d
#define REG_FRC_FRAME_CTL   0x334
#define REG_FRC_ENABLE   0x336
#define REG_JPEG_RESIZER_CTL   0x360
#define REG_JPEG_RESIZER_STARTX_0   0x364
#define REG_JPEG_RESIZER_STARTX_1   0x365
#define REG_JPEG_RESIZER_STARTY_0   0x366
#define REG_JPEG_RESIZER_STARTY_1   0x367
#define REG_JPEG_RESIZER_ENDX_0   0x368
#define REG_JPEG_RESIZER_ENDX_1   0x369
#define REG_JPEG_RESIZER_ENDY_0   0x36a
#define REG_JPEG_RESIZER_ENDY_1   0x36b
#define REG_JPEG_RESIZER_OP_0   0x36c
#define REG_JPEG_RESIZER_OP_1   0x36e
#define REG_JPEG_CTRL   0x380
#define REG_JPEG_STATUS   0x382
#define REG_JPEG_STATUS1   0x383
#define REG_JPEG_RAW_STATUS   0x384
#define REG_JPEG_RAW_STATUS1   0x385
#define REG_JPEG_INTR_CTL0   0x386
#define REG_JPEG_INTR_CTL1   0x387
#define REG_JPEG_START_STOP   0x38a
#define REG_JPEG_FIFO_CTL   0x3a0
#define REG_JPEG_FIFO_STATUS   0x3a2
#define REG_JPEG_FIFO_SIZE   0x3a4
#define REG_JPEG_ENCODE_SIZE_LIMIT_0   0x3B0
#define REG_JPEG_ENCODE_SIZE_LIMIT_1   0x3B1
#define REG_JPEG_ENCODE_SIZE_LIMIT_2   0x3B2
#define REG_JPEG_ENCODE_SIZE_RESULT_0   0x3b4
#define REG_JPEG_ENCODE_SIZE_RESULT_1   0x3b5
#define REG_JPEG_ENCODE_SIZE_RESULT_2   0x3b6
#define REG_JPEG_FILE_SIZE_0   0x3B8
#define REG_JPEG_FILE_SIZE_1   0x3B9
#define REG_JPEG_FILE_SIZE_2   0x3BA
#define REG_JPEG_DECODE_X_SIZE   0x3d8
#define REG_JPEG_DECODE_Y_SIZE   0x3dc
#define REG_JPEG_OP_MODE_ENC   0x400
#define REG_JPEG_OP_MODE   0x401
#define REG_JPEG_CMD   0x402
#define REG_DRI_SETTING   0x40a
#define REG_JPEG_DECODE_VALUE   0x404
#define REG_JPEG_Y_PIXEL_SIZE_0   0x40c
#define REG_JPEG_Y_PIXEL_SIZE_1   0x40d
#define REG_JPEG_X_PIXEL_SIZE_0   0x40e
#define REG_JPEG_X_PIXEL_SIZE_1   0x40f
#define REG_JPEG_SRC_START_ADDR_0   0x410
#define REG_JPEG_SRC_START_ADDR_1   0x411
#define REG_JPEG_SRC_START_ADDR_2   0x412
#define REG_JPEG_SRC_START_ADDR_3   0x413
#define REG_JPEG_DEST_START_ADDR_0   0x414
#define REG_JPEG_DEST_START_ADDR_1   0x415
#define REG_JPEG_DEST_START_ADDR_2   0x416
#define REG_JPEG_DEST_START_ADDR_3   0x417
#define REG_JPEG_RST_MARKER   0x41c
#define REG_JPEG_RST_MARKER_STATUS   0x41e
#define REG_JPEG_INSERT_MARKER00   0x420
#define REG_JPEG_INSERT_MARKER01   0x422
#define REG_JPEG_MARKER_LENGTH00   0x424
#define REG_JPEG_MARKER_LENGTH01   0x426
#define REG_JPEG_MARKER_DATA_00   0x428
#define REG_JPEG_MARKER_DATA_01   0x42a
#define REG_JPEG_MARKER_DATA_02   0x42c
#define REG_JPEG_MARKER_DATA_03   0x42e
#define REG_JPEG_MARKER_DATA_04   0x430
#define REG_JPEG_MARKER_DATA_05   0x432
#define REG_JPEG_MARKER_DATA_06   0x434
#define REG_JPEG_MARKER_DATA_07   0x436
#define REG_JPEG_MARKER_DATA_08   0x438
#define REG_JPEG_MARKER_DATA_09   0x43a
#define REG_JPEG_MARKER_DATA_10   0x43c
#define REG_JPEG_MARKER_DATA_11   0x43e
#define REG_JPEG_MARKER_DATA_12   0x440
#define REG_JPEG_MARKER_DATA_13   0x442
#define REG_JPEG_MARKER_DATA_14   0x444
#define REG_JPEG_MARKER_DATA_15   0x446
#define REG_JPEG_MARKER_DATA_16   0x448
#define REG_JPEG_MARKER_DATA_17   0x44a
#define REG_JPEG_MARKER_DATA_18   0x44c
#define REG_JPEG_MARKER_DATA_19   0x44e
#define REG_JPEG_MARKER_DATA_20   0x450
#define REG_JPEG_MARKER_DATA_21   0x452
#define REG_JPEG_MARKER_DATA_22   0x454
#define REG_JPEG_MARKER_DATA_23   0x456
#define REG_JPEG_MARKER_DATA_24   0x458
#define REG_JPEG_MARKER_DATA_25   0x45a
#define REG_JPEG_MARKER_DATA_26   0x45c
#define REG_JPEG_MARKER_DATA_27   0x45e
#define REG_JPEG_MARKER_DATA_28   0x460
#define REG_JPEG_MARKER_DATA_29   0x462
#define REG_JPEG_MARKER_DATA_30   0x464
#define REG_JPEG_MARKER_DATA_31   0x466
#define REG_JPEG_SOI_CONST_00   0x468
#define REG_JPEG_SOI_CONST_01   0x46a
#define REG_JPEG_JFIF_CONST_00   0x46c
#define REG_JPEG_JFIF_CONST_01   0x46e
#define REG_JPEG_JFIF_CONST_02   0x470
#define REG_JPEG_JFIF_CONST_03   0x472
#define REG_JPEG_JFIF_CONST_04   0x474
#define REG_JPEG_JFIF_CONST_05   0x476
#define REG_JPEG_JFIF_CONST_06   0x478
#define REG_JPEG_JFIF_CONST_07   0x47a
#define REG_JPEG_JFIF_CONST_08   0x47c
#define REG_JPEG_JFIF_CONST_09   0x47e
#define REG_JPEG_JFIF_CONST_10   0x480
#define REG_JPEG_JFIF_CONST_11   0x482
#define REG_JPEG_JFIF_CONST_12   0x484
#define REG_JPEG_JFIF_CONST_13   0x486
#define REG_JPEG_JFIF_CONST_14   0x488
#define REG_JPEG_JFIF_CONST_15   0x48a
#define REG_JPEG_JFIF_CONST_16   0x48c
#define REG_JPEG_JFIF_CONST_17   0x48e
#define REG_JPEG_LUM_DC_HT_CONST_00   0x490
#define REG_JPEG_LUM_DC_HT_CONST_01   0x492
#define REG_JPEG_LUM_DC_HT_CONST_02   0x494
#define REG_JPEG_LUM_DC_HT_CONST_03   0x496
#define REG_JPEG_LUM_DC_HT_CONST_04   0x498
#define REG_JPEG_CHR_DC_HT_CONST_00   0x4a0
#define REG_JPEG_CHR_DC_HT_CONST_01   0x4a2
#define REG_JPEG_CHR_DC_HT_CONST_02   0x4a4
#define REG_JPEG_CHR_DC_HT_CONST_03   0x4a6
#define REG_JPEG_CHR_DC_HT_CONST_04   0x4a8
#define REG_JPEG_LUM_AC_HT_CONST_00   0x4b0
#define REG_JPEG_LUM_AC_HT_CONST_01   0x4b2
#define REG_JPEG_LUM_AC_HT_CONST_02   0x4b4
#define REG_JPEG_LUM_AC_HT_CONST_03   0x4b6
#define REG_JPEG_LUM_AC_HT_CONST_04   0x4b8
#define REG_JPEG_CHR_AC_HT_CONST_00   0x4c0
#define REG_JPEG_CHR_AC_HT_CONST_01   0x4c2
#define REG_JPEG_CHR_AC_HT_CONST_02   0x4c4
#define REG_JPEG_CHR_AC_HT_CONST_03   0x4c6
#define REG_JPEG_CHR_AC_HT_CONST_04   0x4c8
#define REG_JPEG_LUM_QT_CONST_00   0x4d0
#define REG_JPEG_LUM_QT_CONST_01   0x4d2
#define REG_JPEG_LUM_QT_CONST_02   0x4d4
#define REG_JPEG_LUM_QT_CONST_03   0x4d6
#define REG_JPEG_LUM_QT_CONST_04   0x4d8
#define REG_JPEG_CHR_QT_CONST_00   0x4e0
#define REG_JPEG_CHR_QT_CONST_01   0x4e2
#define REG_JPEG_CHR_QT_CONST_02   0x4e4
#define REG_JPEG_CHR_QT_CONST_03   0x4e6
#define REG_JPEG_CHR_QT_CONST_04   0x4e8
#define REG_JPEG_SOF_CONST_00   0x4f0
#define REG_JPEG_SOF_CONST_01   0x4f2
#define REG_JPEG_SOF_CONST_02   0x4f4
#define REG_JPEG_SOF_CONST_03   0x4f6
#define REG_JPEG_SOF_CONST_04   0x4f8
#define REG_JPEG_QUANT_T0_00   0x500
#define REG_JPEG_QUANT_T0_01   0x502
#define REG_JPEG_QUANT_T0_02   0x504
#define REG_JPEG_QUANT_T0_03   0x506
#define REG_JPEG_QUANT_T0_04   0x508
#define REG_JPEG_QUANT_T0_05   0x50a
#define REG_JPEG_QUANT_T0_06   0x50c
#define REG_JPEG_QUANT_T0_07   0x50e
#define REG_JPEG_QUANT_T0_08   0x510
#define REG_JPEG_QUANT_T0_09   0x512
#define REG_JPEG_QUANT_T0_10   0x514
#define REG_JPEG_QUANT_T0_11   0x516
#define REG_JPEG_QUANT_T0_12   0x518
#define REG_JPEG_QUANT_T0_13   0x51a
#define REG_JPEG_QUANT_T0_14   0x51c
#define REG_JPEG_QUANT_T0_15   0x51e
#define REG_JPEG_QUANT_T0_16   0x520
#define REG_JPEG_QUANT_T0_17   0x522
#define REG_JPEG_QUANT_T0_18   0x524
#define REG_JPEG_QUANT_T0_19   0x526
#define REG_JPEG_QUANT_T0_20   0x528
#define REG_JPEG_QUANT_T0_21   0x52a
#define REG_JPEG_QUANT_T0_22   0x52c
#define REG_JPEG_QUANT_T0_23   0x52e
#define REG_JPEG_QUANT_T0_24   0x530
#define REG_JPEG_QUANT_T0_25   0x532
#define REG_JPEG_QUANT_T0_26   0x534
#define REG_JPEG_QUANT_T0_27   0x536
#define REG_JPEG_QUANT_T0_28   0x538
#define REG_JPEG_QUANT_T0_29   0x53a
#define REG_JPEG_QUANT_T0_30   0x53c
#define REG_JPEG_QUANT_T0_31   0x53e
#define REG_JPEG_QUANT_T0_32   0x540
#define REG_JPEG_QUANT_T0_33   0x542
#define REG_JPEG_QUANT_T0_34   0x544
#define REG_JPEG_QUANT_T0_35   0x546
#define REG_JPEG_QUANT_T0_36   0x548
#define REG_JPEG_QUANT_T0_37   0x54a
#define REG_JPEG_QUANT_T0_38   0x54c
#define REG_JPEG_QUANT_T0_39   0x54e
#define REG_JPEG_QUANT_T0_40   0x550
#define REG_JPEG_QUANT_T0_41   0x552
#define REG_JPEG_QUANT_T0_42   0x554
#define REG_JPEG_QUANT_T0_43   0x556
#define REG_JPEG_QUANT_T0_44   0x558
#define REG_JPEG_QUANT_T0_45   0x55a
#define REG_JPEG_QUANT_T0_46   0x55c
#define REG_JPEG_QUANT_T0_47   0x55e
#define REG_JPEG_QUANT_T0_48   0x560
#define REG_JPEG_QUANT_T0_49   0x562
#define REG_JPEG_QUANT_T0_50   0x564
#define REG_JPEG_QUANT_T0_51   0x566
#define REG_JPEG_QUANT_T0_52   0x568
#define REG_JPEG_QUANT_T0_53   0x56a
#define REG_JPEG_QUANT_T0_54   0x56c
#define REG_JPEG_QUANT_T0_55   0x56e
#define REG_JPEG_QUANT_T0_56   0x570
#define REG_JPEG_QUANT_T0_57   0x572
#define REG_JPEG_QUANT_T0_58   0x574
#define REG_JPEG_QUANT_T0_59   0x576
#define REG_JPEG_QUANT_T0_60   0x578
#define REG_JPEG_QUANT_T0_61   0x57a
#define REG_JPEG_QUANT_T0_62   0x57c
#define REG_JPEG_QUANT_T0_63   0x57e
#define REG_JPEG_QUANT_T1_00   0x580
#define REG_JPEG_QUANT_T1_01   0x582
#define REG_JPEG_QUANT_T1_02   0x584
#define REG_JPEG_QUANT_T1_03   0x586
#define REG_JPEG_QUANT_T1_04   0x588
#define REG_JPEG_QUANT_T1_05   0x58a
#define REG_JPEG_QUANT_T1_06   0x58c
#define REG_JPEG_QUANT_T1_07   0x58e
#define REG_JPEG_QUANT_T1_08   0x590
#define REG_JPEG_QUANT_T1_09   0x592
#define REG_JPEG_QUANT_T1_10   0x594
#define REG_JPEG_QUANT_T1_11   0x596
#define REG_JPEG_QUANT_T1_12   0x598
#define REG_JPEG_QUANT_T1_13   0x59a
#define REG_JPEG_QUANT_T1_14   0x59c
#define REG_JPEG_QUANT_T1_15   0x59e
#define REG_JPEG_QUANT_T1_16   0x5a0
#define REG_JPEG_QUANT_T1_17   0x5a2
#define REG_JPEG_QUANT_T1_18   0x5a4
#define REG_JPEG_QUANT_T1_19   0x5a6
#define REG_JPEG_QUANT_T1_20   0x5a8
#define REG_JPEG_QUANT_T1_21   0x5aa
#define REG_JPEG_QUANT_T1_22   0x5ac
#define REG_JPEG_QUANT_T1_23   0x5ae
#define REG_JPEG_QUANT_T1_24   0x5b0
#define REG_JPEG_QUANT_T1_25   0x5b2
#define REG_JPEG_QUANT_T1_26   0x5b4
#define REG_JPEG_QUANT_T1_27   0x5b6
#define REG_JPEG_QUANT_T1_28   0x5b8
#define REG_JPEG_QUANT_T1_29   0x5ba
#define REG_JPEG_QUANT_T1_30   0x5bc
#define REG_JPEG_QUANT_T1_31   0x5be
#define REG_JPEG_QUANT_T1_32   0x5c0
#define REG_JPEG_QUANT_T1_33   0x5c2
#define REG_JPEG_QUANT_T1_34   0x5c4
#define REG_JPEG_QUANT_T1_35   0x5c6
#define REG_JPEG_QUANT_T1_36   0x5c8
#define REG_JPEG_QUANT_T1_37   0x5ca
#define REG_JPEG_QUANT_T1_38   0x5cc
#define REG_JPEG_QUANT_T1_39   0x5ce
#define REG_JPEG_QUANT_T1_40   0x5d0
#define REG_JPEG_QUANT_T1_41   0x5d2
#define REG_JPEG_QUANT_T1_42   0x5d4
#define REG_JPEG_QUANT_T1_43   0x5d6
#define REG_JPEG_QUANT_T1_44   0x5d8
#define REG_JPEG_QUANT_T1_45   0x5da
#define REG_JPEG_QUANT_T1_46   0x5dc
#define REG_JPEG_QUANT_T1_47   0x5de
#define REG_JPEG_QUANT_T1_48   0x5e0
#define REG_JPEG_QUANT_T1_49   0x5e2
#define REG_JPEG_QUANT_T1_50   0x5e4
#define REG_JPEG_QUANT_T1_51   0x5e6
#define REG_JPEG_QUANT_T1_52   0x5e8
#define REG_JPEG_QUANT_T1_53   0x5ea
#define REG_JPEG_QUANT_T1_54   0x5ec
#define REG_JPEG_QUANT_T1_55   0x5ee
#define REG_JPEG_QUANT_T1_56   0x5f0
#define REG_JPEG_QUANT_T1_57   0x5f2
#define REG_JPEG_QUANT_T1_58   0x5f4
#define REG_JPEG_QUANT_T1_59   0x5f6
#define REG_JPEG_QUANT_T1_60   0x5f8
#define REG_JPEG_QUANT_T1_61   0x5fa
#define REG_JPEG_QUANT_T1_62   0x5fc
#define REG_JPEG_QUANT_T1_63   0x5fe
#define REG_JPEG_DC_T0_R0_00   0x600
#define REG_JPEG_DC_T0_R0_01   0x602
#define REG_JPEG_DC_T0_R0_02   0x604
#define REG_JPEG_DC_T0_R0_03   0x606
#define REG_JPEG_DC_T0_R0_04   0x608
#define REG_JPEG_DC_T0_R0_05   0x60a
#define REG_JPEG_DC_T0_R0_06   0x60c
#define REG_JPEG_DC_T0_R0_07   0x60e
#define REG_JPEG_DC_T0_R0_08   0x610
#define REG_JPEG_DC_T0_R0_09   0x612
#define REG_JPEG_DC_T0_R0_10   0x614
#define REG_JPEG_DC_T0_R0_11   0x616
#define REG_JPEG_DC_T0_R0_12   0x618
#define REG_JPEG_DC_T0_R0_13   0x61a
#define REG_JPEG_DC_T0_R0_14   0x61c
#define REG_JPEG_DC_T0_R0_15   0x61e
#define REG_JPEG_DC_T0_R1_00   0x620
#define REG_JPEG_DC_T0_R1_01   0x622
#define REG_JPEG_DC_T0_R1_02   0x624
#define REG_JPEG_DC_T0_R1_03   0x626
#define REG_JPEG_DC_T0_R1_04   0x628
#define REG_JPEG_DC_T0_R1_05   0x62a
#define REG_JPEG_DC_T0_R1_06   0x62c
#define REG_JPEG_DC_T0_R1_07   0x62e
#define REG_JPEG_DC_T0_R1_08   0x630
#define REG_JPEG_DC_T0_R1_09   0x632
#define REG_JPEG_DC_T0_R1_10   0x634
#define REG_JPEG_DC_T0_R1_11   0x636
#define REG_JPEG_AC_T0_R0_00   0x640
#define REG_JPEG_AC_T0_R0_01   0x642
#define REG_JPEG_AC_T0_R0_02   0x644
#define REG_JPEG_AC_T0_R0_03   0x646
#define REG_JPEG_AC_T0_R0_04   0x648
#define REG_JPEG_AC_T0_R0_05   0x64a
#define REG_JPEG_AC_T0_R0_06   0x64c
#define REG_JPEG_AC_T0_R0_07   0x64e
#define REG_JPEG_AC_T0_R0_08   0x650
#define REG_JPEG_AC_T0_R0_09   0x652
#define REG_JPEG_AC_T0_R0_10   0x654
#define REG_JPEG_AC_T0_R0_11   0x656
#define REG_JPEG_AC_T0_R0_12   0x658
#define REG_JPEG_AC_T0_R0_13   0x65a
#define REG_JPEG_AC_T0_R0_14   0x65c
#define REG_JPEG_AC_T0_R0_15   0x65e
#define REG_JPEG_AC_T0_R1_00   0x660
#define REG_JPEG_AC_T0_R1_01   0x662
#define REG_JPEG_AC_T0_R1_02   0x664
#define REG_JPEG_AC_T0_R1_03   0x666
#define REG_JPEG_AC_T0_R1_04   0x668
#define REG_JPEG_AC_T0_R1_05   0x66a
#define REG_JPEG_AC_T0_R1_06   0x66c
#define REG_JPEG_AC_T0_R1_07   0x66e
#define REG_JPEG_AC_T0_R1_08   0x670
#define REG_JPEG_AC_T0_R1_09   0x672
#define REG_JPEG_AC_T0_R1_10   0x674
#define REG_JPEG_AC_T0_R1_11   0x676
#define REG_JPEG_AC_T0_R1_12   0x678
#define REG_JPEG_AC_T0_R1_13   0x67a
#define REG_JPEG_AC_T0_R1_14   0x67c
#define REG_JPEG_AC_T0_R1_15   0x67e
#define REG_JPEG_AC_T0_R1_16   0x680
#define REG_JPEG_AC_T0_R1_17   0x682
#define REG_JPEG_AC_T0_R1_18   0x684
#define REG_JPEG_AC_T0_R1_19   0x686
#define REG_JPEG_AC_T0_R1_20   0x688
#define REG_JPEG_AC_T0_R1_21   0x68a
#define REG_JPEG_AC_T0_R1_22   0x68c
#define REG_JPEG_AC_T0_R1_23   0x68e
#define REG_JPEG_AC_T0_R1_24   0x690
#define REG_JPEG_AC_T0_R1_25   0x692
#define REG_JPEG_AC_T0_R1_26   0x694
#define REG_JPEG_AC_T0_R1_27   0x696
#define REG_JPEG_AC_T0_R1_28   0x698
#define REG_JPEG_AC_T0_R1_29   0x69a
#define REG_JPEG_AC_T0_R1_30   0x69c
#define REG_JPEG_AC_T0_R1_31   0x69e
#define REG_JPEG_AC_T0_R1_32   0x6a0
#define REG_JPEG_AC_T0_R1_33   0x6a2
#define REG_JPEG_AC_T0_R1_34   0x6a4
#define REG_JPEG_AC_T0_R1_35   0x6a6
#define REG_JPEG_AC_T0_R1_36   0x6a8
#define REG_JPEG_AC_T0_R1_37   0x6aa
#define REG_JPEG_AC_T0_R1_38   0x6ac
#define REG_JPEG_AC_T0_R1_39   0x6ae
#define REG_JPEG_AC_T0_R1_40   0x6b0
#define REG_JPEG_AC_T0_R1_41   0x6b2
#define REG_JPEG_AC_T0_R1_42   0x6b4
#define REG_JPEG_AC_T0_R1_43   0x6b6
#define REG_JPEG_AC_T0_R1_44   0x6b8
#define REG_JPEG_AC_T0_R1_45   0x6ba
#define REG_JPEG_AC_T0_R1_46   0x6bc
#define REG_JPEG_AC_T0_R1_47   0x6be
#define REG_JPEG_AC_T0_R1_48   0x6c0
#define REG_JPEG_AC_T0_R1_49   0x6c2
#define REG_JPEG_AC_T0_R1_50   0x6c4
#define REG_JPEG_AC_T0_R1_51   0x6c6
#define REG_JPEG_AC_T0_R1_52   0x6c8
#define REG_JPEG_AC_T0_R1_53   0x6ca
#define REG_JPEG_AC_T0_R1_54   0x6cc
#define REG_JPEG_AC_T0_R1_55   0x6ce
#define REG_JPEG_AC_T0_R1_56   0x6d0
#define REG_JPEG_AC_T0_R1_57   0x6d2
#define REG_JPEG_AC_T0_R1_58   0x6d4
#define REG_JPEG_AC_T0_R1_59   0x6d6
#define REG_JPEG_AC_T0_R1_60   0x6d8
#define REG_JPEG_AC_T0_R1_61   0x6da
#define REG_JPEG_AC_T0_R1_62   0x6dc
#define REG_JPEG_AC_T0_R1_63   0x6de
#define REG_JPEG_AC_T0_R1_64   0x6e0
#define REG_JPEG_AC_T0_R1_65   0x6e2
#define REG_JPEG_AC_T0_R1_66   0x6e4
#define REG_JPEG_AC_T0_R1_67   0x6e6
#define REG_JPEG_AC_T0_R1_68   0x6e8
#define REG_JPEG_AC_T0_R1_69   0x6ea
#define REG_JPEG_AC_T0_R1_70   0x6ec
#define REG_JPEG_AC_T0_R1_71   0x6ee
#define REG_JPEG_AC_T0_R1_72   0x6f0
#define REG_JPEG_AC_T0_R1_73   0x6f2
#define REG_JPEG_AC_T0_R1_74   0x6f4
#define REG_JPEG_AC_T0_R1_75   0x6f6
#define REG_JPEG_AC_T0_R1_76   0x6f8
#define REG_JPEG_AC_T0_R1_77   0x6fa
#define REG_JPEG_AC_T0_R1_78   0x6fc
#define REG_JPEG_AC_T0_R1_79   0x6fe
#define REG_JPEG_AC_T0_R1_80   0x700
#define REG_JPEG_AC_T0_R1_81   0x702
#define REG_JPEG_AC_T0_R1_82   0x704
#define REG_JPEG_AC_T0_R1_83   0x706
#define REG_JPEG_AC_T0_R1_84   0x708
#define REG_JPEG_AC_T0_R1_85   0x70a
#define REG_JPEG_AC_T0_R1_86   0x70c
#define REG_JPEG_AC_T0_R1_87   0x70e
#define REG_JPEG_AC_T0_R1_88   0x710
#define REG_JPEG_AC_T0_R1_89   0x712
#define REG_JPEG_AC_T0_R1_90   0x714
#define REG_JPEG_AC_T0_R1_91   0x716
#define REG_JPEG_AC_T0_R1_92   0x718
#define REG_JPEG_AC_T0_R1_93   0x71a
#define REG_JPEG_AC_T0_R1_94   0x71c
#define REG_JPEG_AC_T0_R1_95   0x71e
#define REG_JPEG_AC_T0_R1_96   0x720
#define REG_JPEG_AC_T0_R1_97   0x722
#define REG_JPEG_AC_T0_R1_98   0x724
#define REG_JPEG_AC_T0_R1_99   0x726
#define REG_JPEG_AC_T0_R1_100   0x728
#define REG_JPEG_AC_T0_R1_101   0x72a
#define REG_JPEG_AC_T0_R1_102   0x72c
#define REG_JPEG_AC_T0_R1_103   0x72e
#define REG_JPEG_AC_T0_R1_104   0x730
#define REG_JPEG_AC_T0_R1_105   0x732
#define REG_JPEG_AC_T0_R1_106   0x734
#define REG_JPEG_AC_T0_R1_107   0x736
#define REG_JPEG_AC_T0_R1_108   0x738
#define REG_JPEG_AC_T0_R1_109   0x73a
#define REG_JPEG_AC_T0_R1_110   0x73c
#define REG_JPEG_AC_T0_R1_111   0x73e
#define REG_JPEG_AC_T0_R1_112   0x740
#define REG_JPEG_AC_T0_R1_113   0x742
#define REG_JPEG_AC_T0_R1_114   0x744
#define REG_JPEG_AC_T0_R1_115   0x746
#define REG_JPEG_AC_T0_R1_116   0x748
#define REG_JPEG_AC_T0_R1_117   0x74a
#define REG_JPEG_AC_T0_R1_118   0x74c
#define REG_JPEG_AC_T0_R1_119   0x74e
#define REG_JPEG_AC_T0_R1_120   0x750
#define REG_JPEG_AC_T0_R1_121   0x752
#define REG_JPEG_AC_T0_R1_122   0x754
#define REG_JPEG_AC_T0_R1_123   0x756
#define REG_JPEG_AC_T0_R1_124   0x758
#define REG_JPEG_AC_T0_R1_125   0x75a
#define REG_JPEG_AC_T0_R1_126   0x75c
#define REG_JPEG_AC_T0_R1_127   0x75e
#define REG_JPEG_AC_T0_R1_128   0x760
#define REG_JPEG_AC_T0_R1_129   0x762
#define REG_JPEG_AC_T0_R1_130   0x764
#define REG_JPEG_AC_T0_R1_131   0x766
#define REG_JPEG_AC_T0_R1_132   0x768
#define REG_JPEG_AC_T0_R1_133   0x76a
#define REG_JPEG_AC_T0_R1_134   0x76c
#define REG_JPEG_AC_T0_R1_135   0x76e
#define REG_JPEG_AC_T0_R1_136   0x770
#define REG_JPEG_AC_T0_R1_137   0x772
#define REG_JPEG_AC_T0_R1_138   0x774
#define REG_JPEG_AC_T0_R1_139   0x776
#define REG_JPEG_AC_T0_R1_140   0x778
#define REG_JPEG_AC_T0_R1_141   0x77a
#define REG_JPEG_AC_T0_R1_142   0x77c
#define REG_JPEG_AC_T0_R1_143   0x77e
#define REG_JPEG_AC_T0_R1_144   0x780
#define REG_JPEG_AC_T0_R1_145   0x782
#define REG_JPEG_AC_T0_R1_146   0x784
#define REG_JPEG_AC_T0_R1_147   0x786
#define REG_JPEG_AC_T0_R1_148   0x788
#define REG_JPEG_AC_T0_R1_149   0x78a
#define REG_JPEG_AC_T0_R1_150   0x78c
#define REG_JPEG_AC_T0_R1_151   0x78e
#define REG_JPEG_AC_T0_R1_152   0x790
#define REG_JPEG_AC_T0_R1_153   0x792
#define REG_JPEG_AC_T0_R1_154   0x794
#define REG_JPEG_AC_T0_R1_155   0x796
#define REG_JPEG_AC_T0_R1_156   0x798
#define REG_JPEG_AC_T0_R1_157   0x79a
#define REG_JPEG_AC_T0_R1_158   0x79c
#define REG_JPEG_AC_T0_R1_159   0x79e
#define REG_JPEG_AC_T0_R1_160   0x7a0
#define REG_JPEG_AC_T0_R1_161   0x7a2
#define REG_JPEG_DC_T1_R0_00   0x800
#define REG_JPEG_DC_T1_R0_01   0x802
#define REG_JPEG_DC_T1_R0_02   0x804
#define REG_JPEG_DC_T1_R0_03   0x806
#define REG_JPEG_DC_T1_R0_04   0x808
#define REG_JPEG_DC_T1_R0_05   0x80a
#define REG_JPEG_DC_T1_R0_06   0x80c
#define REG_JPEG_DC_T1_R0_07   0x80e
#define REG_JPEG_DC_T1_R0_08   0x810
#define REG_JPEG_DC_T1_R0_09   0x812
#define REG_JPEG_DC_T1_R0_10   0x814
#define REG_JPEG_DC_T1_R0_11   0x816
#define REG_JPEG_DC_T1_R0_12   0x818
#define REG_JPEG_DC_T1_R0_13   0x81a
#define REG_JPEG_DC_T1_R0_14   0x81c
#define REG_JPEG_DC_T1_R0_15   0x81e
#define REG_JPEG_DC_T1_R1_00   0x820
#define REG_JPEG_DC_T1_R1_01   0x822
#define REG_JPEG_DC_T1_R1_02   0x824
#define REG_JPEG_DC_T1_R1_03   0x826
#define REG_JPEG_DC_T1_R1_04   0x828
#define REG_JPEG_DC_T1_R1_05   0x82a
#define REG_JPEG_DC_T1_R1_06   0x82c
#define REG_JPEG_DC_T1_R1_07   0x82e
#define REG_JPEG_DC_T1_R1_08   0x830
#define REG_JPEG_DC_T1_R1_09   0x832
#define REG_JPEG_DC_T1_R1_10   0x834
#define REG_JPEG_DC_T1_R1_11   0x836
#define REG_JPEG_AC_T1_R0_00   0x840
#define REG_JPEG_AC_T1_R0_01   0x842
#define REG_JPEG_AC_T1_R0_02   0x844
#define REG_JPEG_AC_T1_R0_03   0x846
#define REG_JPEG_AC_T1_R0_04   0x848
#define REG_JPEG_AC_T1_R0_05   0x84a
#define REG_JPEG_AC_T1_R0_06   0x84c
#define REG_JPEG_AC_T1_R0_07   0x84e
#define REG_JPEG_AC_T1_R0_08   0x850
#define REG_JPEG_AC_T1_R0_09   0x852
#define REG_JPEG_AC_T1_R0_10   0x854
#define REG_JPEG_AC_T1_R0_11   0x856
#define REG_JPEG_AC_T1_R0_12   0x858
#define REG_JPEG_AC_T1_R0_13   0x85a
#define REG_JPEG_AC_T1_R0_14   0x85c
#define REG_JPEG_AC_T1_R0_15   0x85e
#define REG_JPEG_AC_T1_R1_00   0x860
#define REG_JPEG_AC_T1_R1_01   0x862
#define REG_JPEG_AC_T1_R1_02   0x864
#define REG_JPEG_AC_T1_R1_03   0x866
#define REG_JPEG_AC_T1_R1_04   0x868
#define REG_JPEG_AC_T1_R1_05   0x86a
#define REG_JPEG_AC_T1_R1_06   0x86c
#define REG_JPEG_AC_T1_R1_07   0x86e
#define REG_JPEG_AC_T1_R1_08   0x870
#define REG_JPEG_AC_T1_R1_09   0x872
#define REG_JPEG_AC_T1_R1_10   0x874
#define REG_JPEG_AC_T1_R1_11   0x876
#define REG_JPEG_AC_T1_R1_12   0x878
#define REG_JPEG_AC_T1_R1_13   0x87a
#define REG_JPEG_AC_T1_R1_14   0x87c
#define REG_JPEG_AC_T1_R1_15   0x87e
#define REG_JPEG_AC_T1_R1_16   0x880
#define REG_JPEG_AC_T1_R1_17   0x882
#define REG_JPEG_AC_T1_R1_18   0x884
#define REG_JPEG_AC_T1_R1_19   0x886
#define REG_JPEG_AC_T1_R1_20   0x888
#define REG_JPEG_AC_T1_R1_21   0x88a
#define REG_JPEG_AC_T1_R1_22   0x88c
#define REG_JPEG_AC_T1_R1_23   0x88e
#define REG_JPEG_AC_T1_R1_24   0x890
#define REG_JPEG_AC_T1_R1_25   0x892
#define REG_JPEG_AC_T1_R1_26   0x894
#define REG_JPEG_AC_T1_R1_27   0x896
#define REG_JPEG_AC_T1_R1_28   0x898
#define REG_JPEG_AC_T1_R1_29   0x89a
#define REG_JPEG_AC_T1_R1_30   0x89c
#define REG_JPEG_AC_T1_R1_31   0x89e
#define REG_JPEG_AC_T1_R1_32   0x8a0
#define REG_JPEG_AC_T1_R1_33   0x8a2
#define REG_JPEG_AC_T1_R1_34   0x8a4
#define REG_JPEG_AC_T1_R1_35   0x8a6
#define REG_JPEG_AC_T1_R1_36   0x8a8
#define REG_JPEG_AC_T1_R1_37   0x8aa
#define REG_JPEG_AC_T1_R1_38   0x8ac
#define REG_JPEG_AC_T1_R1_39   0x8ae
#define REG_JPEG_AC_T1_R1_40   0x8b0
#define REG_JPEG_AC_T1_R1_41   0x8b2
#define REG_JPEG_AC_T1_R1_42   0x8b4
#define REG_JPEG_AC_T1_R1_43   0x8b6
#define REG_JPEG_AC_T1_R1_44   0x8b8
#define REG_JPEG_AC_T1_R1_45   0x8ba
#define REG_JPEG_AC_T1_R1_46   0x8bc
#define REG_JPEG_AC_T1_R1_47   0x8be
#define REG_JPEG_AC_T1_R1_48   0x8c0
#define REG_JPEG_AC_T1_R1_49   0x8c2
#define REG_JPEG_AC_T1_R1_50   0x8c4
#define REG_JPEG_AC_T1_R1_51   0x8c6
#define REG_JPEG_AC_T1_R1_52   0x8c8
#define REG_JPEG_AC_T1_R1_53   0x8ca
#define REG_JPEG_AC_T1_R1_54   0x8cc
#define REG_JPEG_AC_T1_R1_55   0x8ce
#define REG_JPEG_AC_T1_R1_56   0x8d0
#define REG_JPEG_AC_T1_R1_57   0x8d2
#define REG_JPEG_AC_T1_R1_58   0x8d4
#define REG_JPEG_AC_T1_R1_59   0x8d6
#define REG_JPEG_AC_T1_R1_60   0x8d8
#define REG_JPEG_AC_T1_R1_61   0x8da
#define REG_JPEG_AC_T1_R1_62   0x8dc
#define REG_JPEG_AC_T1_R1_63   0x8de
#define REG_JPEG_AC_T1_R1_64   0x8e0
#define REG_JPEG_AC_T1_R1_65   0x8e2
#define REG_JPEG_AC_T1_R1_66   0x8e4
#define REG_JPEG_AC_T1_R1_67   0x8e6
#define REG_JPEG_AC_T1_R1_68   0x8e8
#define REG_JPEG_AC_T1_R1_69   0x8ea
#define REG_JPEG_AC_T1_R1_70   0x8ec
#define REG_JPEG_AC_T1_R1_71   0x8ee
#define REG_JPEG_AC_T1_R1_72   0x8f0
#define REG_JPEG_AC_T1_R1_73   0x8f2
#define REG_JPEG_AC_T1_R1_74   0x8f4
#define REG_JPEG_AC_T1_R1_75   0x8f6
#define REG_JPEG_AC_T1_R1_76   0x8f8
#define REG_JPEG_AC_T1_R1_77   0x8fa
#define REG_JPEG_AC_T1_R1_78   0x8fc
#define REG_JPEG_AC_T1_R1_79   0x8fe
#define REG_JPEG_AC_T1_R1_80   0x900
#define REG_JPEG_AC_T1_R1_81   0x902
#define REG_JPEG_AC_T1_R1_82   0x904
#define REG_JPEG_AC_T1_R1_83   0x906
#define REG_JPEG_AC_T1_R1_84   0x908
#define REG_JPEG_AC_T1_R1_85   0x90a
#define REG_JPEG_AC_T1_R1_86   0x90c
#define REG_JPEG_AC_T1_R1_87   0x90e
#define REG_JPEG_AC_T1_R1_88   0x910
#define REG_JPEG_AC_T1_R1_89   0x912
#define REG_JPEG_AC_T1_R1_90   0x914
#define REG_JPEG_AC_T1_R1_91   0x916
#define REG_JPEG_AC_T1_R1_92   0x918
#define REG_JPEG_AC_T1_R1_93   0x91a
#define REG_JPEG_AC_T1_R1_94   0x91c
#define REG_JPEG_AC_T1_R1_95   0x91e
#define REG_JPEG_AC_T1_R1_96   0x920
#define REG_JPEG_AC_T1_R1_97   0x922
#define REG_JPEG_AC_T1_R1_98   0x924
#define REG_JPEG_AC_T1_R1_99   0x926
#define REG_JPEG_AC_T1_R1_100   0x928
#define REG_JPEG_AC_T1_R1_101   0x92a
#define REG_JPEG_AC_T1_R1_102   0x92c
#define REG_JPEG_AC_T1_R1_103   0x92e
#define REG_JPEG_AC_T1_R1_104   0x930
#define REG_JPEG_AC_T1_R1_105   0x932
#define REG_JPEG_AC_T1_R1_106   0x934
#define REG_JPEG_AC_T1_R1_107   0x936
#define REG_JPEG_AC_T1_R1_108   0x938
#define REG_JPEG_AC_T1_R1_109   0x93a
#define REG_JPEG_AC_T1_R1_110   0x93c
#define REG_JPEG_AC_T1_R1_111   0x93e
#define REG_JPEG_AC_T1_R1_112   0x940
#define REG_JPEG_AC_T1_R1_113   0x942
#define REG_JPEG_AC_T1_R1_114   0x944
#define REG_JPEG_AC_T1_R1_115   0x946
#define REG_JPEG_AC_T1_R1_116   0x948
#define REG_JPEG_AC_T1_R1_117   0x94a
#define REG_JPEG_AC_T1_R1_118   0x94c
#define REG_JPEG_AC_T1_R1_119   0x94e
#define REG_JPEG_AC_T1_R1_120   0x950
#define REG_JPEG_AC_T1_R1_121   0x952
#define REG_JPEG_AC_T1_R1_122   0x954
#define REG_JPEG_AC_T1_R1_123   0x956
#define REG_JPEG_AC_T1_R1_124   0x958
#define REG_JPEG_AC_T1_R1_125   0x95a
#define REG_JPEG_AC_T1_R1_126   0x95c
#define REG_JPEG_AC_T1_R1_127   0x95e
#define REG_JPEG_AC_T1_R1_128   0x960
#define REG_JPEG_AC_T1_R1_129   0x962
#define REG_JPEG_AC_T1_R1_130   0x964
#define REG_JPEG_AC_T1_R1_131   0x966
#define REG_JPEG_AC_T1_R1_132   0x968
#define REG_JPEG_AC_T1_R1_133   0x96a
#define REG_JPEG_AC_T1_R1_134   0x96c
#define REG_JPEG_AC_T1_R1_135   0x96e
#define REG_JPEG_AC_T1_R1_136   0x970
#define REG_JPEG_AC_T1_R1_137   0x972
#define REG_JPEG_AC_T1_R1_138   0x974
#define REG_JPEG_AC_T1_R1_139   0x976
#define REG_JPEG_AC_T1_R1_140   0x978
#define REG_JPEG_AC_T1_R1_141   0x97a
#define REG_JPEG_AC_T1_R1_142   0x97c
#define REG_JPEG_AC_T1_R1_143   0x97e
#define REG_JPEG_AC_T1_R1_144   0x980
#define REG_JPEG_AC_T1_R1_145   0x982
#define REG_JPEG_AC_T1_R1_146   0x984
#define REG_JPEG_AC_T1_R1_147   0x986
#define REG_JPEG_AC_T1_R1_148   0x988
#define REG_JPEG_AC_T1_R1_149   0x98a
#define REG_JPEG_AC_T1_R1_150   0x98c
#define REG_JPEG_AC_T1_R1_151   0x98e
#define REG_JPEG_AC_T1_R1_152   0x990
#define REG_JPEG_AC_T1_R1_153   0x992
#define REG_JPEG_AC_T1_R1_154   0x994
#define REG_JPEG_AC_T1_R1_155   0x996
#define REG_JPEG_AC_T1_R1_156   0x998
#define REG_JPEG_AC_T1_R1_157   0x99a
#define REG_JPEG_AC_T1_R1_158   0x99c
#define REG_JPEG_AC_T1_R1_159   0x99e
#define REG_JPEG_AC_T1_R1_160   0x9a0
#define REG_JPEG_AC_T1_R1_161   0x9a2
#define REG_JPEG_QTABLE_CONST_0   0x9b0
#define REG_JPEG_QTABLE_CONST_1   0x9b2
#define REG_JPEG_QTABLE_CONST_2   0x9b4
#define REG_JPEG_QTABLE_CONST_3   0x9b6
#define REG_JPEG_QTABLE0_SAMPLE   0x9b8
#define REG_JPEG_QTABLE1_SAMPLE   0x9bc
#define REG_JPEG_QTABLE2_SAMPLE   0x9c0
#define REG_JPEG_DRI_CONST_0   0x9c4
#define REG_JPEG_DRI_CONST_1   0x9c6
#define REG_JPEG_DRI_CONST_2   0x9c8
#define REG_JPEG_DRI_CONST_3   0x9ca
#define REG_JPEG_SOS_CONST_0   0x9cc
#define REG_JPEG_SOS_CONST_1   0x9ce
#define REG_JPEG_SOS_CONST_2   0x9d0
#define REG_JPEG_SOS_CONST_3   0x9d2
#define REG_JPEG_SOS_CONST_4   0x9d4
#define REG_JPEG_EOI_CONST_0   0x9e4
#define REG_JPEG_EOI_CONST_1   0x9e6
#define REG_JPEG_EOI_CONST_2   0x9e8
#define REG_JPEG_EOI_CONST_3   0x9ea
#define REG_JPEG_EOI_CONST_4   0x9ec
#define REG_JPEG_VERT_PIX_SIZE0   0x9f0
#define REG_JPEG_VERT_PIX_SIZE1   0x9f2
#define REG_JPEG_HORI_PIX_SIZE0   0x9f4
#define REG_JPEG_HORI_PIX_SIZE1   0x9f6
#define REG_JPEG_DRI_CONFIG0   0x9f8
#define REG_JPEG_DRI_CONFIG1   0x9fa
#define REG_DEFINE_END   0xffff

Define Documentation

#define CURSOR_INVERT   0xaa
#define CURSOR_NORMAL   0x00

Referenced by main().

#define MakeRGB16bpp ( rgb   )     RGB16bpp(rgb.r, rgb.g, rgb.b)
#define MODE_2D_16bpp   0x0
#define MODE_2D_1bpp   0x4
#define MODE_2D_32bpp   0x1
#define MODE_2D_8bpp   0x5
#define MODE_2D_YUV   0x2
#define REG_2D_1d0   0x1d0
#define REG_2D_1d1   0x1d1
#define REG_2D_1d2   0x1d2
#define REG_2D_1d4   0x1d4
#define REG_2D_1d5   0x1d5
#define REG_2D_1d6   0x1d6
#define REG_2D_1d8   0x1d8
#define REG_2D_1d9   0x1d9
#define REG_2D_1dc   0x1dc
#define REG_2D_1dd   0x1dd
#define REG_2D_1de   0x1de
#define REG_2D_1e4   0x1e4
#define REG_2D_1e5   0x1e5
#define REG_2D_1e8   0x1e8
#define REG_2D_1e9   0x1e9
#define REG_2D_1ec   0x1ec
#define REG_2D_1ed   0x1ed
#define REG_2D_1f0   0x1f0
#define REG_2D_1f1   0x1f1
#define REG_2D_1f4   0x1f4
#define REG_2D_1f5   0x1f5
#define REG_2D_1f6   0x1f6
#define REG_2D_1f8   0x1f8
#define REG_2D_1f9   0x1f9
#define REG_2D_1fc   0x1fc
#define REG_2D_1fd   0x1fd
#define REG_2D_1fe   0x1fe
#define REG_2D_204   0x204
#define REG_2D_205   0x205
#define REG_2D_206   0x206
#define REG_2D_208   0x208
#define REG_2D_209   0x209
#define REG_2D_214   0x214
#define REG_2D_215   0x215
#define REG_2D_218   0x218
#define REG_2D_219   0x219
#define REG_2D_220   0x220
#define REG_2D_BRUSH_WND_ADDR_OFFSET0   0x208
#define REG_2D_BRUSH_WND_ADDR_OFFSET1   0x209
#define REG_2D_BRUSH_WND_HEIGHT0   0x218
#define REG_2D_BRUSH_WND_HEIGHT1   0x219
#define REG_2D_BRUSH_WND_START_ADDR0   0x204
#define REG_2D_BRUSH_WND_START_ADDR1   0x205
#define REG_2D_BRUSH_WND_START_ADDR2   0x206
#define REG_2D_BRUSH_WND_WIDTH0   0x214
#define REG_2D_BRUSH_WND_WIDTH1   0x215
#define REG_2D_CMD_1   0x1d0
#define REG_2D_CMD_2   0x1d1
#define REG_2D_CMD_FIFO_FLAG   0x220
#define REG_2D_CMD_FIFO_IND   0x222
#define REG_2D_CMD_FIFO_INT_EN   0x21c
#define REG_2D_CMD_FIFO_INT_STATUS   0x21e
#define REG_2D_CMD_FIFO_STATUS   0x1d2
#define REG_2D_DEST_WND_ADDR_OFFSET0   0x1f8
#define REG_2D_DEST_WND_ADDR_OFFSET1   0x1f9
#define REG_2D_DEST_WND_COLOR_MODE   0x1dd
#define REG_2D_DEST_WND_HEIGHT0   0x1f0
#define REG_2D_DEST_WND_HEIGHT1   0x1f1
#define REG_2D_DEST_WND_START_ADDR0   0x1f4
#define REG_2D_DEST_WND_START_ADDR1   0x1f5
#define REG_2D_DEST_WND_START_ADDR2   0x1f6
#define REG_2D_DEST_WND_WIDTH0   0x1ec
#define REG_2D_DEST_WND_WIDTH1   0x1ed
#define REG_2D_SRC_WND_ADDR_OFFSET0   0x1d8
#define REG_2D_SRC_WND_ADDR_OFFSET1   0x1d9
#define REG_2D_SRC_WND_COLOR_MODE   0x1dc
#define REG_2D_SRC_WND_HEIGHT0   0x1e8
#define REG_2D_SRC_WND_HEIGHT1   0x1e9
#define REG_2D_SRC_WND_START_ADDR0   0x1d4
#define REG_2D_SRC_WND_START_ADDR1   0x1d5
#define REG_2D_SRC_WND_START_ADDR2   0x1d6
#define REG_2D_SRC_WND_WIDTH0   0x1e4
#define REG_2D_SRC_WND_WIDTH1   0x1e5
#define REG_2D_WRITE_PATTERN0   0x1fc
#define REG_2D_WRITE_PATTERN1   0x1fd
#define REG_2D_WRITE_PATTERN2   0x1fe
#define REG_CONFIG_READBACK   0x02
#define REG_CURSOR1_BLINK_ON0   0xc8
#define REG_CURSOR1_BLINK_ON1   0xc9
#define REG_CURSOR1_BLINK_TOTAL0   0xc4
#define REG_CURSOR1_BLINK_TOTAL1   0xc5
#define REG_CURSOR1_COL_IND1_0   0xe0
#define REG_CURSOR1_COL_IND1_1   0xe1
#define REG_CURSOR1_COL_IND1_2   0xe2
#define REG_CURSOR1_COL_IND1_3   0xe3
#define REG_CURSOR1_COL_IND2_0   0xe4
#define REG_CURSOR1_COL_IND2_1   0xe5
#define REG_CURSOR1_COL_IND2_2   0xe6
#define REG_CURSOR1_COL_IND2_3   0xe7
#define REG_CURSOR1_COL_IND3_0   0xe8
#define REG_CURSOR1_COL_IND3_1   0xe9
#define REG_CURSOR1_COL_IND3_2   0xea
#define REG_CURSOR1_COL_IND3_3   0xeb
#define REG_CURSOR1_HORIZ_SIZE_0   0xd8
#define REG_CURSOR1_HORIZ_SIZE_1   0xd9
#define REG_CURSOR1_MEM_START0   0xcc
#define REG_CURSOR1_MEM_START1   0xcd
#define REG_CURSOR1_MEM_START2   0xce
#define REG_CURSOR1_POSX0   0xd0
#define REG_CURSOR1_POSX1   0xd1
#define REG_CURSOR1_POSY0   0xd4
#define REG_CURSOR1_POSY1   0xd5
#define REG_CURSOR1_VERT_SIZE_0   0xdc
#define REG_CURSOR1_VERT_SIZE_1   0xdd
#define REG_CURSOR2_BLINK_ON0   0xf0
#define REG_CURSOR2_BLINK_ON1   0xf1
#define REG_CURSOR2_BLINK_TOTAL0   0xec
#define REG_CURSOR2_BLINK_TOTAL1   0xed
#define REG_CURSOR2_COL_IND1_0   0x108
#define REG_CURSOR2_COL_IND1_1   0x109
#define REG_CURSOR2_COL_IND1_2   0x10a
#define REG_CURSOR2_COL_IND1_3   0x10b
#define REG_CURSOR2_COL_IND2_0   0x10c
#define REG_CURSOR2_COL_IND2_1   0x10d
#define REG_CURSOR2_COL_IND2_2   0x10e
#define REG_CURSOR2_COL_IND2_3   0x10f
#define REG_CURSOR2_COL_IND3_0   0x110
#define REG_CURSOR2_COL_IND3_1   0x111
#define REG_CURSOR2_COL_IND3_2   0x112
#define REG_CURSOR2_COL_IND3_3   0x113
#define REG_CURSOR2_HORIZ_SIZE_0   0x100
#define REG_CURSOR2_HORIZ_SIZE_1   0x101
#define REG_CURSOR2_MEM_START0   0xf4
#define REG_CURSOR2_MEM_START1   0xf5
#define REG_CURSOR2_MEM_START2   0xf6
#define REG_CURSOR2_POSX0   0xf8
#define REG_CURSOR2_POSX1   0xf9
#define REG_CURSOR2_POSY0   0xfc
#define REG_CURSOR2_POSY1   0xfd
#define REG_CURSOR2_VERT_SIZE_0   0x104
#define REG_CURSOR2_VERT_SIZE_1   0x105
#define REG_CURSOR_FEATURE   0xc0
#define REG_CV_CLOCK_BURST_LENGTH   0xb2
#define REG_DEFINE_END   0xffff
#define REG_DISP_BUFFER_SIZE   0x01
#define REG_DISPLAY_MODE   0x70
#define REG_DRI_SETTING   0x40a
#define REG_DV_ALPHA   0x1a5
#define REG_DV_CB   0x1aa
#define REG_DV_CR   0x1ab
#define REG_DV_CSC_MODE   0x1a8
#define REG_DV_DV0_START_ADDR_0   0x1b0
#define REG_DV_DV0_START_ADDR_1   0x1b1
#define REG_DV_DV0_START_ADDR_2   0x1b2
#define REG_DV_DV1_START_ADDR_0   0x1b4
#define REG_DV_DV1_START_ADDR_1   0x1b5
#define REG_DV_DV1_START_ADDR_2   0x1b6
#define REG_DV_ENB   0x1af
#define REG_DV_FRAME_PULSE_WIDTH   0x194
#define REG_DV_FRAME_SAMPLING   0x161
#define REG_DV_HCROP_SIZE_0   0x18c
#define REG_DV_HCROP_SIZE_1   0x18d
#define REG_DV_HCROP_STR_0   0x184
#define REG_DV_HCROP_STR_1   0x185
#define REG_DV_HORI_MAX_0   0x17c
#define REG_DV_HORI_MAX_1   0x17d
#define REG_DV_HORI_PERIOD_0   0x174
#define REG_DV_HORI_PERIOD_1   0x175
#define REG_DV_JHDEC_RATIO   0x172
#define REG_DV_JHORI_SIZE_0   0x164
#define REG_DV_JHORI_SIZE_1   0x165
#define REG_DV_JMEM_STR_0   0x16c
#define REG_DV_JMEM_STR_1   0x16d
#define REG_DV_JMEM_STR_2   0x16e
#define REG_DV_JMEM_STR_3   0x16f
#define REG_DV_JVDEC_RATIO   0x173
#define REG_DV_JVERT_SIZE_0   0x168
#define REG_DV_JVERT_SIZE_1   0x169
#define REG_DV_NFRAME_POS_0   0x162
#define REG_DV_NFRAME_POS_1   0x163
#define REG_DV_OFORMAT   0x1a4
#define REG_DV_OP_MODE   0x160
#define REG_DV_SUBPIXEL_MODE   0x1a5
#define REG_DV_TV_0   0x1ac
#define REG_DV_TV_1   0x1ad
#define REG_DV_TV_2   0x1ae
#define REG_DV_VCROP_SIZE_0   0x190
#define REG_DV_VCROP_SIZE_1   0x191
#define REG_DV_VCROP_STR_0   0x188
#define REG_DV_VCROP_STR_1   0x189
#define REG_DV_VERT_MAX_0   0x180
#define REG_DV_VERT_MAX_1   0x181
#define REG_DV_VHDEC_RATIO   0x170
#define REG_DV_VMEM_STR_ADDR1_0   0x19c
#define REG_DV_VMEM_STR_ADDR1_1   0x19d
#define REG_DV_VMEM_STR_ADDR1_2   0x19e
#define REG_DV_VMEM_STR_ADDR1_3   0x19f
#define REG_DV_VMEM_STR_ADDR2_0   0x1a0
#define REG_DV_VMEM_STR_ADDR2_1   0x1a1
#define REG_DV_VMEM_STR_ADDR2_2   0x1a2
#define REG_DV_VMEM_STR_ADDR2_3   0x1a3
#define REG_DV_VVDEC_RATIO   0x171
#define REG_DV_Y   0x1a9
#define REG_DYN_DITHER_CONTROL   0x50
#define REG_FLOAT_WIN_ADDR_OFFSET0   0x80
#define REG_FLOAT_WIN_ADDR_OFFSET1   0x81
#define REG_FLOAT_WIN_DISP_START_ADDR0   0x7c
#define REG_FLOAT_WIN_DISP_START_ADDR1   0x7d
#define REG_FLOAT_WIN_DISP_START_ADDR2   0x7e
#define REG_FLOAT_WIN_X_END_POS0   0x8c
#define REG_FLOAT_WIN_X_END_POS1   0x8d
#define REG_FLOAT_WIN_X_START_POS0   0x84
#define REG_FLOAT_WIN_X_START_POS1   0x85
#define REG_FLOAT_WIN_Y_END_POS0   0x90
#define REG_FLOAT_WIN_Y_END_POS1   0x91
#define REG_FLOAT_WIN_Y_START_POS0   0x88
#define REG_FLOAT_WIN_Y_START_POS1   0x89
#define REG_FPFRAME_START_OFFSET0   0x30
#define REG_FPFRAME_START_OFFSET1   0x31
#define REG_FPFRAME_STOP_OFFSET0   0x34
#define REG_FPFRAME_STOP_OFFSET1   0x35
#define REG_FRC_ENABLE   0x336
#define REG_FRC_FRAME_CTL   0x334
#define REG_GPIO1_PULSE_START   0x3c
#define REG_GPIO1_PULSE_STOP   0x3e
#define REG_GPIO2_PULSE_DELAY   0x40
#define REG_GPIO_CONFIG0   0xa8
#define REG_GPIO_CONFIG1   0xa9
#define REG_GPIO_STATUS_CONTROL0   0xac
#define REG_GPIO_STATUS_CONTROL1   0xad
#define REG_HDP   0x14
#define REG_HDP_START_POS0   0x16
#define REG_HDP_START_POS1   0x17
#define REG_HORIZ_TOTAL_0   0x12
#define REG_HORIZ_TOTAL_1   0x13
#define REG_HRTFT_SPECIAL_OUTPUT   0x38
#define REG_HSYNC_PULSE_START_POS0   0x22
#define REG_HSYNC_PULSE_START_POS1   0x23
#define REG_HSYNC_PULSE_WIDTH   0x20
#define REG_I2C_BAUD   0x233
#define REG_I2C_CTL   0x231
#define REG_I2C_DATA_IN   0x237
#define REG_I2C_DATA_OUT   0x230
#define REG_I2C_DATA_READY   0x236
#define REG_I2C_EN_OUT   0x232
#define REG_I2C_INTERRUPT   0x235
#define REG_I2C_STATUS   0x234
#define REG_INTERRUPT_ENABLE   0x4A
#define REG_INTERRUPT_FLAG   0x48
#define REG_JPEG_AC_T0_R0_00   0x640
#define REG_JPEG_AC_T0_R0_01   0x642
#define REG_JPEG_AC_T0_R0_02   0x644
#define REG_JPEG_AC_T0_R0_03   0x646
#define REG_JPEG_AC_T0_R0_04   0x648
#define REG_JPEG_AC_T0_R0_05   0x64a
#define REG_JPEG_AC_T0_R0_06   0x64c
#define REG_JPEG_AC_T0_R0_07   0x64e
#define REG_JPEG_AC_T0_R0_08   0x650
#define REG_JPEG_AC_T0_R0_09   0x652
#define REG_JPEG_AC_T0_R0_10   0x654
#define REG_JPEG_AC_T0_R0_11   0x656
#define REG_JPEG_AC_T0_R0_12   0x658
#define REG_JPEG_AC_T0_R0_13   0x65a
#define REG_JPEG_AC_T0_R0_14   0x65c
#define REG_JPEG_AC_T0_R0_15   0x65e
#define REG_JPEG_AC_T0_R1_00   0x660
#define REG_JPEG_AC_T0_R1_01   0x662
#define REG_JPEG_AC_T0_R1_02   0x664
#define REG_JPEG_AC_T0_R1_03   0x666
#define REG_JPEG_AC_T0_R1_04   0x668
#define REG_JPEG_AC_T0_R1_05   0x66a
#define REG_JPEG_AC_T0_R1_06   0x66c
#define REG_JPEG_AC_T0_R1_07   0x66e
#define REG_JPEG_AC_T0_R1_08   0x670
#define REG_JPEG_AC_T0_R1_09   0x672
#define REG_JPEG_AC_T0_R1_10   0x674
#define REG_JPEG_AC_T0_R1_100   0x728
#define REG_JPEG_AC_T0_R1_101   0x72a
#define REG_JPEG_AC_T0_R1_102   0x72c
#define REG_JPEG_AC_T0_R1_103   0x72e
#define REG_JPEG_AC_T0_R1_104   0x730
#define REG_JPEG_AC_T0_R1_105   0x732
#define REG_JPEG_AC_T0_R1_106   0x734
#define REG_JPEG_AC_T0_R1_107   0x736
#define REG_JPEG_AC_T0_R1_108   0x738
#define REG_JPEG_AC_T0_R1_109   0x73a
#define REG_JPEG_AC_T0_R1_11   0x676
#define REG_JPEG_AC_T0_R1_110   0x73c
#define REG_JPEG_AC_T0_R1_111   0x73e
#define REG_JPEG_AC_T0_R1_112   0x740
#define REG_JPEG_AC_T0_R1_113   0x742
#define REG_JPEG_AC_T0_R1_114   0x744
#define REG_JPEG_AC_T0_R1_115   0x746
#define REG_JPEG_AC_T0_R1_116   0x748
#define REG_JPEG_AC_T0_R1_117   0x74a
#define REG_JPEG_AC_T0_R1_118   0x74c
#define REG_JPEG_AC_T0_R1_119   0x74e
#define REG_JPEG_AC_T0_R1_12   0x678
#define REG_JPEG_AC_T0_R1_120   0x750
#define REG_JPEG_AC_T0_R1_121   0x752
#define REG_JPEG_AC_T0_R1_122   0x754
#define REG_JPEG_AC_T0_R1_123   0x756
#define REG_JPEG_AC_T0_R1_124   0x758
#define REG_JPEG_AC_T0_R1_125   0x75a
#define REG_JPEG_AC_T0_R1_126   0x75c
#define REG_JPEG_AC_T0_R1_127   0x75e
#define REG_JPEG_AC_T0_R1_128   0x760
#define REG_JPEG_AC_T0_R1_129   0x762
#define REG_JPEG_AC_T0_R1_13   0x67a
#define REG_JPEG_AC_T0_R1_130   0x764
#define REG_JPEG_AC_T0_R1_131   0x766
#define REG_JPEG_AC_T0_R1_132   0x768
#define REG_JPEG_AC_T0_R1_133   0x76a
#define REG_JPEG_AC_T0_R1_134   0x76c
#define REG_JPEG_AC_T0_R1_135   0x76e
#define REG_JPEG_AC_T0_R1_136   0x770
#define REG_JPEG_AC_T0_R1_137   0x772
#define REG_JPEG_AC_T0_R1_138   0x774
#define REG_JPEG_AC_T0_R1_139   0x776
#define REG_JPEG_AC_T0_R1_14   0x67c
#define REG_JPEG_AC_T0_R1_140   0x778
#define REG_JPEG_AC_T0_R1_141   0x77a
#define REG_JPEG_AC_T0_R1_142   0x77c
#define REG_JPEG_AC_T0_R1_143   0x77e
#define REG_JPEG_AC_T0_R1_144   0x780
#define REG_JPEG_AC_T0_R1_145   0x782
#define REG_JPEG_AC_T0_R1_146   0x784
#define REG_JPEG_AC_T0_R1_147   0x786
#define REG_JPEG_AC_T0_R1_148   0x788
#define REG_JPEG_AC_T0_R1_149   0x78a
#define REG_JPEG_AC_T0_R1_15   0x67e
#define REG_JPEG_AC_T0_R1_150   0x78c
#define REG_JPEG_AC_T0_R1_151   0x78e
#define REG_JPEG_AC_T0_R1_152   0x790
#define REG_JPEG_AC_T0_R1_153   0x792
#define REG_JPEG_AC_T0_R1_154   0x794
#define REG_JPEG_AC_T0_R1_155   0x796
#define REG_JPEG_AC_T0_R1_156   0x798
#define REG_JPEG_AC_T0_R1_157   0x79a
#define REG_JPEG_AC_T0_R1_158   0x79c
#define REG_JPEG_AC_T0_R1_159   0x79e
#define REG_JPEG_AC_T0_R1_16   0x680
#define REG_JPEG_AC_T0_R1_160   0x7a0
#define REG_JPEG_AC_T0_R1_161   0x7a2
#define REG_JPEG_AC_T0_R1_17   0x682
#define REG_JPEG_AC_T0_R1_18   0x684
#define REG_JPEG_AC_T0_R1_19   0x686
#define REG_JPEG_AC_T0_R1_20   0x688
#define REG_JPEG_AC_T0_R1_21   0x68a
#define REG_JPEG_AC_T0_R1_22   0x68c
#define REG_JPEG_AC_T0_R1_23   0x68e
#define REG_JPEG_AC_T0_R1_24   0x690
#define REG_JPEG_AC_T0_R1_25   0x692
#define REG_JPEG_AC_T0_R1_26   0x694
#define REG_JPEG_AC_T0_R1_27   0x696
#define REG_JPEG_AC_T0_R1_28   0x698
#define REG_JPEG_AC_T0_R1_29   0x69a
#define REG_JPEG_AC_T0_R1_30   0x69c
#define REG_JPEG_AC_T0_R1_31   0x69e
#define REG_JPEG_AC_T0_R1_32   0x6a0
#define REG_JPEG_AC_T0_R1_33   0x6a2
#define REG_JPEG_AC_T0_R1_34   0x6a4
#define REG_JPEG_AC_T0_R1_35   0x6a6
#define REG_JPEG_AC_T0_R1_36   0x6a8
#define REG_JPEG_AC_T0_R1_37   0x6aa
#define REG_JPEG_AC_T0_R1_38   0x6ac
#define REG_JPEG_AC_T0_R1_39   0x6ae
#define REG_JPEG_AC_T0_R1_40   0x6b0
#define REG_JPEG_AC_T0_R1_41   0x6b2
#define REG_JPEG_AC_T0_R1_42   0x6b4
#define REG_JPEG_AC_T0_R1_43   0x6b6
#define REG_JPEG_AC_T0_R1_44   0x6b8
#define REG_JPEG_AC_T0_R1_45   0x6ba
#define REG_JPEG_AC_T0_R1_46   0x6bc
#define REG_JPEG_AC_T0_R1_47   0x6be
#define REG_JPEG_AC_T0_R1_48   0x6c0
#define REG_JPEG_AC_T0_R1_49   0x6c2
#define REG_JPEG_AC_T0_R1_50   0x6c4
#define REG_JPEG_AC_T0_R1_51   0x6c6
#define REG_JPEG_AC_T0_R1_52   0x6c8
#define REG_JPEG_AC_T0_R1_53   0x6ca
#define REG_JPEG_AC_T0_R1_54   0x6cc
#define REG_JPEG_AC_T0_R1_55   0x6ce
#define REG_JPEG_AC_T0_R1_56   0x6d0
#define REG_JPEG_AC_T0_R1_57   0x6d2
#define REG_JPEG_AC_T0_R1_58   0x6d4
#define REG_JPEG_AC_T0_R1_59   0x6d6
#define REG_JPEG_AC_T0_R1_60   0x6d8
#define REG_JPEG_AC_T0_R1_61   0x6da
#define REG_JPEG_AC_T0_R1_62   0x6dc
#define REG_JPEG_AC_T0_R1_63   0x6de
#define REG_JPEG_AC_T0_R1_64   0x6e0
#define REG_JPEG_AC_T0_R1_65   0x6e2
#define REG_JPEG_AC_T0_R1_66   0x6e4
#define REG_JPEG_AC_T0_R1_67   0x6e6
#define REG_JPEG_AC_T0_R1_68   0x6e8
#define REG_JPEG_AC_T0_R1_69   0x6ea
#define REG_JPEG_AC_T0_R1_70   0x6ec
#define REG_JPEG_AC_T0_R1_71   0x6ee
#define REG_JPEG_AC_T0_R1_72   0x6f0
#define REG_JPEG_AC_T0_R1_73   0x6f2
#define REG_JPEG_AC_T0_R1_74   0x6f4
#define REG_JPEG_AC_T0_R1_75   0x6f6
#define REG_JPEG_AC_T0_R1_76   0x6f8
#define REG_JPEG_AC_T0_R1_77   0x6fa
#define REG_JPEG_AC_T0_R1_78   0x6fc
#define REG_JPEG_AC_T0_R1_79   0x6fe
#define REG_JPEG_AC_T0_R1_80   0x700
#define REG_JPEG_AC_T0_R1_81   0x702
#define REG_JPEG_AC_T0_R1_82   0x704
#define REG_JPEG_AC_T0_R1_83   0x706
#define REG_JPEG_AC_T0_R1_84   0x708
#define REG_JPEG_AC_T0_R1_85   0x70a
#define REG_JPEG_AC_T0_R1_86   0x70c
#define REG_JPEG_AC_T0_R1_87   0x70e
#define REG_JPEG_AC_T0_R1_88   0x710
#define REG_JPEG_AC_T0_R1_89   0x712
#define REG_JPEG_AC_T0_R1_90   0x714
#define REG_JPEG_AC_T0_R1_91   0x716
#define REG_JPEG_AC_T0_R1_92   0x718
#define REG_JPEG_AC_T0_R1_93   0x71a
#define REG_JPEG_AC_T0_R1_94   0x71c
#define REG_JPEG_AC_T0_R1_95   0x71e
#define REG_JPEG_AC_T0_R1_96   0x720
#define REG_JPEG_AC_T0_R1_97   0x722
#define REG_JPEG_AC_T0_R1_98   0x724
#define REG_JPEG_AC_T0_R1_99   0x726
#define REG_JPEG_AC_T1_R0_00   0x840
#define REG_JPEG_AC_T1_R0_01   0x842
#define REG_JPEG_AC_T1_R0_02   0x844
#define REG_JPEG_AC_T1_R0_03   0x846
#define REG_JPEG_AC_T1_R0_04   0x848
#define REG_JPEG_AC_T1_R0_05   0x84a
#define REG_JPEG_AC_T1_R0_06   0x84c
#define REG_JPEG_AC_T1_R0_07   0x84e
#define REG_JPEG_AC_T1_R0_08   0x850
#define REG_JPEG_AC_T1_R0_09   0x852
#define REG_JPEG_AC_T1_R0_10   0x854
#define REG_JPEG_AC_T1_R0_11   0x856
#define REG_JPEG_AC_T1_R0_12   0x858
#define REG_JPEG_AC_T1_R0_13   0x85a
#define REG_JPEG_AC_T1_R0_14   0x85c
#define REG_JPEG_AC_T1_R0_15   0x85e
#define REG_JPEG_AC_T1_R1_00   0x860
#define REG_JPEG_AC_T1_R1_01   0x862
#define REG_JPEG_AC_T1_R1_02   0x864
#define REG_JPEG_AC_T1_R1_03   0x866
#define REG_JPEG_AC_T1_R1_04   0x868
#define REG_JPEG_AC_T1_R1_05   0x86a
#define REG_JPEG_AC_T1_R1_06   0x86c
#define REG_JPEG_AC_T1_R1_07   0x86e
#define REG_JPEG_AC_T1_R1_08   0x870
#define REG_JPEG_AC_T1_R1_09   0x872
#define REG_JPEG_AC_T1_R1_10   0x874
#define REG_JPEG_AC_T1_R1_100   0x928
#define REG_JPEG_AC_T1_R1_101   0x92a
#define REG_JPEG_AC_T1_R1_102   0x92c
#define REG_JPEG_AC_T1_R1_103   0x92e
#define REG_JPEG_AC_T1_R1_104   0x930
#define REG_JPEG_AC_T1_R1_105   0x932
#define REG_JPEG_AC_T1_R1_106   0x934
#define REG_JPEG_AC_T1_R1_107   0x936
#define REG_JPEG_AC_T1_R1_108   0x938
#define REG_JPEG_AC_T1_R1_109   0x93a
#define REG_JPEG_AC_T1_R1_11   0x876
#define REG_JPEG_AC_T1_R1_110   0x93c
#define REG_JPEG_AC_T1_R1_111   0x93e
#define REG_JPEG_AC_T1_R1_112   0x940
#define REG_JPEG_AC_T1_R1_113   0x942
#define REG_JPEG_AC_T1_R1_114   0x944
#define REG_JPEG_AC_T1_R1_115   0x946
#define REG_JPEG_AC_T1_R1_116   0x948
#define REG_JPEG_AC_T1_R1_117   0x94a
#define REG_JPEG_AC_T1_R1_118   0x94c
#define REG_JPEG_AC_T1_R1_119   0x94e
#define REG_JPEG_AC_T1_R1_12   0x878
#define REG_JPEG_AC_T1_R1_120   0x950
#define REG_JPEG_AC_T1_R1_121   0x952
#define REG_JPEG_AC_T1_R1_122   0x954
#define REG_JPEG_AC_T1_R1_123   0x956
#define REG_JPEG_AC_T1_R1_124   0x958
#define REG_JPEG_AC_T1_R1_125   0x95a
#define REG_JPEG_AC_T1_R1_126   0x95c
#define REG_JPEG_AC_T1_R1_127   0x95e
#define REG_JPEG_AC_T1_R1_128   0x960
#define REG_JPEG_AC_T1_R1_129   0x962
#define REG_JPEG_AC_T1_R1_13   0x87a
#define REG_JPEG_AC_T1_R1_130   0x964
#define REG_JPEG_AC_T1_R1_131   0x966
#define REG_JPEG_AC_T1_R1_132   0x968
#define REG_JPEG_AC_T1_R1_133   0x96a
#define REG_JPEG_AC_T1_R1_134   0x96c
#define REG_JPEG_AC_T1_R1_135   0x96e
#define REG_JPEG_AC_T1_R1_136   0x970
#define REG_JPEG_AC_T1_R1_137   0x972
#define REG_JPEG_AC_T1_R1_138   0x974
#define REG_JPEG_AC_T1_R1_139   0x976
#define REG_JPEG_AC_T1_R1_14   0x87c
#define REG_JPEG_AC_T1_R1_140   0x978
#define REG_JPEG_AC_T1_R1_141   0x97a
#define REG_JPEG_AC_T1_R1_142   0x97c
#define REG_JPEG_AC_T1_R1_143   0x97e
#define REG_JPEG_AC_T1_R1_144   0x980
#define REG_JPEG_AC_T1_R1_145   0x982
#define REG_JPEG_AC_T1_R1_146   0x984
#define REG_JPEG_AC_T1_R1_147   0x986
#define REG_JPEG_AC_T1_R1_148   0x988
#define REG_JPEG_AC_T1_R1_149   0x98a
#define REG_JPEG_AC_T1_R1_15   0x87e
#define REG_JPEG_AC_T1_R1_150   0x98c
#define REG_JPEG_AC_T1_R1_151   0x98e
#define REG_JPEG_AC_T1_R1_152   0x990
#define REG_JPEG_AC_T1_R1_153   0x992
#define REG_JPEG_AC_T1_R1_154   0x994
#define REG_JPEG_AC_T1_R1_155   0x996
#define REG_JPEG_AC_T1_R1_156   0x998
#define REG_JPEG_AC_T1_R1_157   0x99a
#define REG_JPEG_AC_T1_R1_158   0x99c
#define REG_JPEG_AC_T1_R1_159   0x99e
#define REG_JPEG_AC_T1_R1_16   0x880
#define REG_JPEG_AC_T1_R1_160   0x9a0
#define REG_JPEG_AC_T1_R1_161   0x9a2
#define REG_JPEG_AC_T1_R1_17   0x882
#define REG_JPEG_AC_T1_R1_18   0x884
#define REG_JPEG_AC_T1_R1_19   0x886
#define REG_JPEG_AC_T1_R1_20   0x888
#define REG_JPEG_AC_T1_R1_21   0x88a
#define REG_JPEG_AC_T1_R1_22   0x88c
#define REG_JPEG_AC_T1_R1_23   0x88e
#define REG_JPEG_AC_T1_R1_24   0x890
#define REG_JPEG_AC_T1_R1_25   0x892
#define REG_JPEG_AC_T1_R1_26   0x894
#define REG_JPEG_AC_T1_R1_27   0x896
#define REG_JPEG_AC_T1_R1_28   0x898
#define REG_JPEG_AC_T1_R1_29   0x89a
#define REG_JPEG_AC_T1_R1_30   0x89c
#define REG_JPEG_AC_T1_R1_31   0x89e
#define REG_JPEG_AC_T1_R1_32   0x8a0
#define REG_JPEG_AC_T1_R1_33   0x8a2
#define REG_JPEG_AC_T1_R1_34   0x8a4
#define REG_JPEG_AC_T1_R1_35   0x8a6
#define REG_JPEG_AC_T1_R1_36   0x8a8
#define REG_JPEG_AC_T1_R1_37   0x8aa
#define REG_JPEG_AC_T1_R1_38   0x8ac
#define REG_JPEG_AC_T1_R1_39   0x8ae
#define REG_JPEG_AC_T1_R1_40   0x8b0
#define REG_JPEG_AC_T1_R1_41   0x8b2
#define REG_JPEG_AC_T1_R1_42   0x8b4
#define REG_JPEG_AC_T1_R1_43   0x8b6
#define REG_JPEG_AC_T1_R1_44   0x8b8
#define REG_JPEG_AC_T1_R1_45   0x8ba
#define REG_JPEG_AC_T1_R1_46   0x8bc
#define REG_JPEG_AC_T1_R1_47   0x8be
#define REG_JPEG_AC_T1_R1_48   0x8c0
#define REG_JPEG_AC_T1_R1_49   0x8c2
#define REG_JPEG_AC_T1_R1_50   0x8c4
#define REG_JPEG_AC_T1_R1_51   0x8c6
#define REG_JPEG_AC_T1_R1_52   0x8c8
#define REG_JPEG_AC_T1_R1_53   0x8ca
#define REG_JPEG_AC_T1_R1_54   0x8cc
#define REG_JPEG_AC_T1_R1_55   0x8ce
#define REG_JPEG_AC_T1_R1_56   0x8d0
#define REG_JPEG_AC_T1_R1_57   0x8d2
#define REG_JPEG_AC_T1_R1_58   0x8d4
#define REG_JPEG_AC_T1_R1_59   0x8d6
#define REG_JPEG_AC_T1_R1_60   0x8d8
#define REG_JPEG_AC_T1_R1_61   0x8da
#define REG_JPEG_AC_T1_R1_62   0x8dc
#define REG_JPEG_AC_T1_R1_63   0x8de
#define REG_JPEG_AC_T1_R1_64   0x8e0
#define REG_JPEG_AC_T1_R1_65   0x8e2
#define REG_JPEG_AC_T1_R1_66   0x8e4
#define REG_JPEG_AC_T1_R1_67   0x8e6
#define REG_JPEG_AC_T1_R1_68   0x8e8
#define REG_JPEG_AC_T1_R1_69   0x8ea
#define REG_JPEG_AC_T1_R1_70   0x8ec
#define REG_JPEG_AC_T1_R1_71   0x8ee
#define REG_JPEG_AC_T1_R1_72   0x8f0
#define REG_JPEG_AC_T1_R1_73   0x8f2
#define REG_JPEG_AC_T1_R1_74   0x8f4
#define REG_JPEG_AC_T1_R1_75   0x8f6
#define REG_JPEG_AC_T1_R1_76   0x8f8
#define REG_JPEG_AC_T1_R1_77   0x8fa
#define REG_JPEG_AC_T1_R1_78   0x8fc
#define REG_JPEG_AC_T1_R1_79   0x8fe
#define REG_JPEG_AC_T1_R1_80   0x900
#define REG_JPEG_AC_T1_R1_81   0x902
#define REG_JPEG_AC_T1_R1_82   0x904
#define REG_JPEG_AC_T1_R1_83   0x906
#define REG_JPEG_AC_T1_R1_84   0x908
#define REG_JPEG_AC_T1_R1_85   0x90a
#define REG_JPEG_AC_T1_R1_86   0x90c
#define REG_JPEG_AC_T1_R1_87   0x90e
#define REG_JPEG_AC_T1_R1_88   0x910
#define REG_JPEG_AC_T1_R1_89   0x912
#define REG_JPEG_AC_T1_R1_90   0x914
#define REG_JPEG_AC_T1_R1_91   0x916
#define REG_JPEG_AC_T1_R1_92   0x918
#define REG_JPEG_AC_T1_R1_93   0x91a
#define REG_JPEG_AC_T1_R1_94   0x91c
#define REG_JPEG_AC_T1_R1_95   0x91e
#define REG_JPEG_AC_T1_R1_96   0x920
#define REG_JPEG_AC_T1_R1_97   0x922
#define REG_JPEG_AC_T1_R1_98   0x924
#define REG_JPEG_AC_T1_R1_99   0x926
#define REG_JPEG_CHR_AC_HT_CONST_00   0x4c0
#define REG_JPEG_CHR_AC_HT_CONST_01   0x4c2
#define REG_JPEG_CHR_AC_HT_CONST_02   0x4c4
#define REG_JPEG_CHR_AC_HT_CONST_03   0x4c6
#define REG_JPEG_CHR_AC_HT_CONST_04   0x4c8
#define REG_JPEG_CHR_DC_HT_CONST_00   0x4a0
#define REG_JPEG_CHR_DC_HT_CONST_01   0x4a2
#define REG_JPEG_CHR_DC_HT_CONST_02   0x4a4
#define REG_JPEG_CHR_DC_HT_CONST_03   0x4a6
#define REG_JPEG_CHR_DC_HT_CONST_04   0x4a8
#define REG_JPEG_CHR_QT_CONST_00   0x4e0
#define REG_JPEG_CHR_QT_CONST_01   0x4e2
#define REG_JPEG_CHR_QT_CONST_02   0x4e4
#define REG_JPEG_CHR_QT_CONST_03   0x4e6
#define REG_JPEG_CHR_QT_CONST_04   0x4e8
#define REG_JPEG_CMD   0x402
#define REG_JPEG_CTRL   0x380
#define REG_JPEG_DC_T0_R0_00   0x600
#define REG_JPEG_DC_T0_R0_01   0x602
#define REG_JPEG_DC_T0_R0_02   0x604
#define REG_JPEG_DC_T0_R0_03   0x606
#define REG_JPEG_DC_T0_R0_04   0x608
#define REG_JPEG_DC_T0_R0_05   0x60a
#define REG_JPEG_DC_T0_R0_06   0x60c
#define REG_JPEG_DC_T0_R0_07   0x60e
#define REG_JPEG_DC_T0_R0_08   0x610
#define REG_JPEG_DC_T0_R0_09   0x612
#define REG_JPEG_DC_T0_R0_10   0x614
#define REG_JPEG_DC_T0_R0_11   0x616
#define REG_JPEG_DC_T0_R0_12   0x618
#define REG_JPEG_DC_T0_R0_13   0x61a
#define REG_JPEG_DC_T0_R0_14   0x61c
#define REG_JPEG_DC_T0_R0_15   0x61e
#define REG_JPEG_DC_T0_R1_00   0x620
#define REG_JPEG_DC_T0_R1_01   0x622
#define REG_JPEG_DC_T0_R1_02   0x624
#define REG_JPEG_DC_T0_R1_03   0x626
#define REG_JPEG_DC_T0_R1_04   0x628
#define REG_JPEG_DC_T0_R1_05   0x62a
#define REG_JPEG_DC_T0_R1_06   0x62c
#define REG_JPEG_DC_T0_R1_07   0x62e
#define REG_JPEG_DC_T0_R1_08   0x630
#define REG_JPEG_DC_T0_R1_09   0x632
#define REG_JPEG_DC_T0_R1_10   0x634
#define REG_JPEG_DC_T0_R1_11   0x636
#define REG_JPEG_DC_T1_R0_00   0x800
#define REG_JPEG_DC_T1_R0_01   0x802
#define REG_JPEG_DC_T1_R0_02   0x804
#define REG_JPEG_DC_T1_R0_03   0x806
#define REG_JPEG_DC_T1_R0_04   0x808
#define REG_JPEG_DC_T1_R0_05   0x80a
#define REG_JPEG_DC_T1_R0_06   0x80c
#define REG_JPEG_DC_T1_R0_07   0x80e
#define REG_JPEG_DC_T1_R0_08   0x810
#define REG_JPEG_DC_T1_R0_09   0x812
#define REG_JPEG_DC_T1_R0_10   0x814
#define REG_JPEG_DC_T1_R0_11   0x816
#define REG_JPEG_DC_T1_R0_12   0x818
#define REG_JPEG_DC_T1_R0_13   0x81a
#define REG_JPEG_DC_T1_R0_14   0x81c
#define REG_JPEG_DC_T1_R0_15   0x81e
#define REG_JPEG_DC_T1_R1_00   0x820
#define REG_JPEG_DC_T1_R1_01   0x822
#define REG_JPEG_DC_T1_R1_02   0x824
#define REG_JPEG_DC_T1_R1_03   0x826
#define REG_JPEG_DC_T1_R1_04   0x828
#define REG_JPEG_DC_T1_R1_05   0x82a
#define REG_JPEG_DC_T1_R1_06   0x82c
#define REG_JPEG_DC_T1_R1_07   0x82e
#define REG_JPEG_DC_T1_R1_08   0x830
#define REG_JPEG_DC_T1_R1_09   0x832
#define REG_JPEG_DC_T1_R1_10   0x834
#define REG_JPEG_DC_T1_R1_11   0x836
#define REG_JPEG_DECODE_VALUE   0x404
#define REG_JPEG_DECODE_X_SIZE   0x3d8
#define REG_JPEG_DECODE_Y_SIZE   0x3dc
#define REG_JPEG_DEST_START_ADDR_0   0x414
#define REG_JPEG_DEST_START_ADDR_1   0x415
#define REG_JPEG_DEST_START_ADDR_2   0x416
#define REG_JPEG_DEST_START_ADDR_3   0x417
#define REG_JPEG_DRI_CONFIG0   0x9f8
#define REG_JPEG_DRI_CONFIG1   0x9fa
#define REG_JPEG_DRI_CONST_0   0x9c4
#define REG_JPEG_DRI_CONST_1   0x9c6
#define REG_JPEG_DRI_CONST_2   0x9c8
#define REG_JPEG_DRI_CONST_3   0x9ca
#define REG_JPEG_ENCODE_SIZE_LIMIT_0   0x3B0
#define REG_JPEG_ENCODE_SIZE_LIMIT_1   0x3B1
#define REG_JPEG_ENCODE_SIZE_LIMIT_2   0x3B2
#define REG_JPEG_ENCODE_SIZE_RESULT_0   0x3b4
#define REG_JPEG_ENCODE_SIZE_RESULT_1   0x3b5
#define REG_JPEG_ENCODE_SIZE_RESULT_2   0x3b6
#define REG_JPEG_EOI_CONST_0   0x9e4
#define REG_JPEG_EOI_CONST_1   0x9e6
#define REG_JPEG_EOI_CONST_2   0x9e8
#define REG_JPEG_EOI_CONST_3   0x9ea
#define REG_JPEG_EOI_CONST_4   0x9ec
#define REG_JPEG_FIFO_CTL   0x3a0
#define REG_JPEG_FIFO_SIZE   0x3a4
#define REG_JPEG_FIFO_STATUS   0x3a2
#define REG_JPEG_FILE_SIZE_0   0x3B8
#define REG_JPEG_FILE_SIZE_1   0x3B9
#define REG_JPEG_FILE_SIZE_2   0x3BA
#define REG_JPEG_HORI_PIX_SIZE0   0x9f4
#define REG_JPEG_HORI_PIX_SIZE1   0x9f6
#define REG_JPEG_INSERT_MARKER00   0x420
#define REG_JPEG_INSERT_MARKER01   0x422
#define REG_JPEG_INTR_CTL0   0x386
#define REG_JPEG_INTR_CTL1   0x387
#define REG_JPEG_JFIF_CONST_00   0x46c
#define REG_JPEG_JFIF_CONST_01   0x46e
#define REG_JPEG_JFIF_CONST_02   0x470
#define REG_JPEG_JFIF_CONST_03   0x472
#define REG_JPEG_JFIF_CONST_04   0x474
#define REG_JPEG_JFIF_CONST_05   0x476
#define REG_JPEG_JFIF_CONST_06   0x478
#define REG_JPEG_JFIF_CONST_07   0x47a
#define REG_JPEG_JFIF_CONST_08   0x47c
#define REG_JPEG_JFIF_CONST_09   0x47e
#define REG_JPEG_JFIF_CONST_10   0x480
#define REG_JPEG_JFIF_CONST_11   0x482
#define REG_JPEG_JFIF_CONST_12   0x484
#define REG_JPEG_JFIF_CONST_13   0x486
#define REG_JPEG_JFIF_CONST_14   0x488
#define REG_JPEG_JFIF_CONST_15   0x48a
#define REG_JPEG_JFIF_CONST_16   0x48c
#define REG_JPEG_JFIF_CONST_17   0x48e
#define REG_JPEG_LUM_AC_HT_CONST_00   0x4b0
#define REG_JPEG_LUM_AC_HT_CONST_01   0x4b2
#define REG_JPEG_LUM_AC_HT_CONST_02   0x4b4
#define REG_JPEG_LUM_AC_HT_CONST_03   0x4b6
#define REG_JPEG_LUM_AC_HT_CONST_04   0x4b8
#define REG_JPEG_LUM_DC_HT_CONST_00   0x490
#define REG_JPEG_LUM_DC_HT_CONST_01   0x492
#define REG_JPEG_LUM_DC_HT_CONST_02   0x494
#define REG_JPEG_LUM_DC_HT_CONST_03   0x496
#define REG_JPEG_LUM_DC_HT_CONST_04   0x498
#define REG_JPEG_LUM_QT_CONST_00   0x4d0
#define REG_JPEG_LUM_QT_CONST_01   0x4d2
#define REG_JPEG_LUM_QT_CONST_02   0x4d4
#define REG_JPEG_LUM_QT_CONST_03   0x4d6
#define REG_JPEG_LUM_QT_CONST_04   0x4d8
#define REG_JPEG_MARKER_DATA_00   0x428
#define REG_JPEG_MARKER_DATA_01   0x42a
#define REG_JPEG_MARKER_DATA_02   0x42c
#define REG_JPEG_MARKER_DATA_03   0x42e
#define REG_JPEG_MARKER_DATA_04   0x430
#define REG_JPEG_MARKER_DATA_05   0x432
#define REG_JPEG_MARKER_DATA_06   0x434
#define REG_JPEG_MARKER_DATA_07   0x436
#define REG_JPEG_MARKER_DATA_08   0x438
#define REG_JPEG_MARKER_DATA_09   0x43a
#define REG_JPEG_MARKER_DATA_10   0x43c
#define REG_JPEG_MARKER_DATA_11   0x43e
#define REG_JPEG_MARKER_DATA_12   0x440
#define REG_JPEG_MARKER_DATA_13   0x442
#define REG_JPEG_MARKER_DATA_14   0x444
#define REG_JPEG_MARKER_DATA_15   0x446
#define REG_JPEG_MARKER_DATA_16   0x448
#define REG_JPEG_MARKER_DATA_17   0x44a
#define REG_JPEG_MARKER_DATA_18   0x44c
#define REG_JPEG_MARKER_DATA_19   0x44e
#define REG_JPEG_MARKER_DATA_20   0x450
#define REG_JPEG_MARKER_DATA_21   0x452
#define REG_JPEG_MARKER_DATA_22   0x454
#define REG_JPEG_MARKER_DATA_23   0x456
#define REG_JPEG_MARKER_DATA_24   0x458
#define REG_JPEG_MARKER_DATA_25   0x45a
#define REG_JPEG_MARKER_DATA_26   0x45c
#define REG_JPEG_MARKER_DATA_27   0x45e
#define REG_JPEG_MARKER_DATA_28   0x460
#define REG_JPEG_MARKER_DATA_29   0x462
#define REG_JPEG_MARKER_DATA_30   0x464
#define REG_JPEG_MARKER_DATA_31   0x466
#define REG_JPEG_MARKER_LENGTH00   0x424
#define REG_JPEG_MARKER_LENGTH01   0x426
#define REG_JPEG_OP_MODE   0x401
#define REG_JPEG_OP_MODE_ENC   0x400
#define REG_JPEG_QTABLE0_SAMPLE   0x9b8
#define REG_JPEG_QTABLE1_SAMPLE   0x9bc
#define REG_JPEG_QTABLE2_SAMPLE   0x9c0
#define REG_JPEG_QTABLE_CONST_0   0x9b0
#define REG_JPEG_QTABLE_CONST_1   0x9b2
#define REG_JPEG_QTABLE_CONST_2   0x9b4
#define REG_JPEG_QTABLE_CONST_3   0x9b6
#define REG_JPEG_QUANT_T0_00   0x500
#define REG_JPEG_QUANT_T0_01   0x502
#define REG_JPEG_QUANT_T0_02   0x504
#define REG_JPEG_QUANT_T0_03   0x506
#define REG_JPEG_QUANT_T0_04   0x508
#define REG_JPEG_QUANT_T0_05   0x50a
#define REG_JPEG_QUANT_T0_06   0x50c
#define REG_JPEG_QUANT_T0_07   0x50e
#define REG_JPEG_QUANT_T0_08   0x510
#define REG_JPEG_QUANT_T0_09   0x512
#define REG_JPEG_QUANT_T0_10   0x514
#define REG_JPEG_QUANT_T0_11   0x516
#define REG_JPEG_QUANT_T0_12   0x518
#define REG_JPEG_QUANT_T0_13   0x51a
#define REG_JPEG_QUANT_T0_14   0x51c
#define REG_JPEG_QUANT_T0_15   0x51e
#define REG_JPEG_QUANT_T0_16   0x520
#define REG_JPEG_QUANT_T0_17   0x522
#define REG_JPEG_QUANT_T0_18   0x524
#define REG_JPEG_QUANT_T0_19   0x526
#define REG_JPEG_QUANT_T0_20   0x528
#define REG_JPEG_QUANT_T0_21   0x52a
#define REG_JPEG_QUANT_T0_22   0x52c
#define REG_JPEG_QUANT_T0_23   0x52e
#define REG_JPEG_QUANT_T0_24   0x530
#define REG_JPEG_QUANT_T0_25   0x532
#define REG_JPEG_QUANT_T0_26   0x534
#define REG_JPEG_QUANT_T0_27   0x536
#define REG_JPEG_QUANT_T0_28   0x538
#define REG_JPEG_QUANT_T0_29   0x53a
#define REG_JPEG_QUANT_T0_30   0x53c
#define REG_JPEG_QUANT_T0_31   0x53e
#define REG_JPEG_QUANT_T0_32   0x540
#define REG_JPEG_QUANT_T0_33   0x542
#define REG_JPEG_QUANT_T0_34   0x544
#define REG_JPEG_QUANT_T0_35   0x546
#define REG_JPEG_QUANT_T0_36   0x548
#define REG_JPEG_QUANT_T0_37   0x54a
#define REG_JPEG_QUANT_T0_38   0x54c
#define REG_JPEG_QUANT_T0_39   0x54e
#define REG_JPEG_QUANT_T0_40   0x550
#define REG_JPEG_QUANT_T0_41   0x552
#define REG_JPEG_QUANT_T0_42   0x554
#define REG_JPEG_QUANT_T0_43   0x556
#define REG_JPEG_QUANT_T0_44   0x558
#define REG_JPEG_QUANT_T0_45   0x55a
#define REG_JPEG_QUANT_T0_46   0x55c
#define REG_JPEG_QUANT_T0_47   0x55e
#define REG_JPEG_QUANT_T0_48   0x560
#define REG_JPEG_QUANT_T0_49   0x562
#define REG_JPEG_QUANT_T0_50   0x564
#define REG_JPEG_QUANT_T0_51   0x566
#define REG_JPEG_QUANT_T0_52   0x568
#define REG_JPEG_QUANT_T0_53   0x56a
#define REG_JPEG_QUANT_T0_54   0x56c
#define REG_JPEG_QUANT_T0_55   0x56e
#define REG_JPEG_QUANT_T0_56   0x570
#define REG_JPEG_QUANT_T0_57   0x572
#define REG_JPEG_QUANT_T0_58   0x574
#define REG_JPEG_QUANT_T0_59   0x576
#define REG_JPEG_QUANT_T0_60   0x578
#define REG_JPEG_QUANT_T0_61   0x57a
#define REG_JPEG_QUANT_T0_62   0x57c
#define REG_JPEG_QUANT_T0_63   0x57e
#define REG_JPEG_QUANT_T1_00   0x580
#define REG_JPEG_QUANT_T1_01   0x582
#define REG_JPEG_QUANT_T1_02   0x584
#define REG_JPEG_QUANT_T1_03   0x586
#define REG_JPEG_QUANT_T1_04   0x588
#define REG_JPEG_QUANT_T1_05   0x58a
#define REG_JPEG_QUANT_T1_06   0x58c
#define REG_JPEG_QUANT_T1_07   0x58e
#define REG_JPEG_QUANT_T1_08   0x590
#define REG_JPEG_QUANT_T1_09   0x592
#define REG_JPEG_QUANT_T1_10   0x594
#define REG_JPEG_QUANT_T1_11   0x596
#define REG_JPEG_QUANT_T1_12   0x598
#define REG_JPEG_QUANT_T1_13   0x59a
#define REG_JPEG_QUANT_T1_14   0x59c
#define REG_JPEG_QUANT_T1_15   0x59e
#define REG_JPEG_QUANT_T1_16   0x5a0
#define REG_JPEG_QUANT_T1_17   0x5a2
#define REG_JPEG_QUANT_T1_18   0x5a4
#define REG_JPEG_QUANT_T1_19   0x5a6
#define REG_JPEG_QUANT_T1_20   0x5a8
#define REG_JPEG_QUANT_T1_21   0x5aa
#define REG_JPEG_QUANT_T1_22   0x5ac
#define REG_JPEG_QUANT_T1_23   0x5ae
#define REG_JPEG_QUANT_T1_24   0x5b0
#define REG_JPEG_QUANT_T1_25   0x5b2
#define REG_JPEG_QUANT_T1_26   0x5b4
#define REG_JPEG_QUANT_T1_27   0x5b6
#define REG_JPEG_QUANT_T1_28   0x5b8
#define REG_JPEG_QUANT_T1_29   0x5ba
#define REG_JPEG_QUANT_T1_30   0x5bc
#define REG_JPEG_QUANT_T1_31   0x5be
#define REG_JPEG_QUANT_T1_32   0x5c0
#define REG_JPEG_QUANT_T1_33   0x5c2
#define REG_JPEG_QUANT_T1_34   0x5c4
#define REG_JPEG_QUANT_T1_35   0x5c6
#define REG_JPEG_QUANT_T1_36   0x5c8
#define REG_JPEG_QUANT_T1_37   0x5ca
#define REG_JPEG_QUANT_T1_38   0x5cc
#define REG_JPEG_QUANT_T1_39   0x5ce
#define REG_JPEG_QUANT_T1_40   0x5d0
#define REG_JPEG_QUANT_T1_41   0x5d2
#define REG_JPEG_QUANT_T1_42   0x5d4
#define REG_JPEG_QUANT_T1_43   0x5d6
#define REG_JPEG_QUANT_T1_44   0x5d8
#define REG_JPEG_QUANT_T1_45   0x5da
#define REG_JPEG_QUANT_T1_46   0x5dc
#define REG_JPEG_QUANT_T1_47   0x5de
#define REG_JPEG_QUANT_T1_48   0x5e0
#define REG_JPEG_QUANT_T1_49   0x5e2
#define REG_JPEG_QUANT_T1_50   0x5e4
#define REG_JPEG_QUANT_T1_51   0x5e6
#define REG_JPEG_QUANT_T1_52   0x5e8
#define REG_JPEG_QUANT_T1_53   0x5ea
#define REG_JPEG_QUANT_T1_54   0x5ec
#define REG_JPEG_QUANT_T1_55   0x5ee
#define REG_JPEG_QUANT_T1_56   0x5f0
#define REG_JPEG_QUANT_T1_57   0x5f2
#define REG_JPEG_QUANT_T1_58   0x5f4
#define REG_JPEG_QUANT_T1_59   0x5f6
#define REG_JPEG_QUANT_T1_60   0x5f8
#define REG_JPEG_QUANT_T1_61   0x5fa
#define REG_JPEG_QUANT_T1_62   0x5fc
#define REG_JPEG_QUANT_T1_63   0x5fe
#define REG_JPEG_RAW_STATUS   0x384
#define REG_JPEG_RAW_STATUS1   0x385
#define REG_JPEG_RESIZER_CTL   0x360
#define REG_JPEG_RESIZER_ENDX_0   0x368
#define REG_JPEG_RESIZER_ENDX_1   0x369
#define REG_JPEG_RESIZER_ENDY_0   0x36a
#define REG_JPEG_RESIZER_ENDY_1   0x36b
#define REG_JPEG_RESIZER_OP_0   0x36c
#define REG_JPEG_RESIZER_OP_1   0x36e
#define REG_JPEG_RESIZER_STARTX_0   0x364
#define REG_JPEG_RESIZER_STARTX_1   0x365
#define REG_JPEG_RESIZER_STARTY_0   0x366
#define REG_JPEG_RESIZER_STARTY_1   0x367
#define REG_JPEG_RST_MARKER   0x41c
#define REG_JPEG_RST_MARKER_STATUS   0x41e
#define REG_JPEG_SOF_CONST_00   0x4f0
#define REG_JPEG_SOF_CONST_01   0x4f2
#define REG_JPEG_SOF_CONST_02   0x4f4
#define REG_JPEG_SOF_CONST_03   0x4f6
#define REG_JPEG_SOF_CONST_04   0x4f8
#define REG_JPEG_SOI_CONST_00   0x468
#define REG_JPEG_SOI_CONST_01   0x46a
#define REG_JPEG_SOS_CONST_0   0x9cc
#define REG_JPEG_SOS_CONST_1   0x9ce
#define REG_JPEG_SOS_CONST_2   0x9d0
#define REG_JPEG_SOS_CONST_3   0x9d2
#define REG_JPEG_SOS_CONST_4   0x9d4
#define REG_JPEG_SRC_START_ADDR_0   0x410
#define REG_JPEG_SRC_START_ADDR_1   0x411
#define REG_JPEG_SRC_START_ADDR_2   0x412
#define REG_JPEG_SRC_START_ADDR_3   0x413
#define REG_JPEG_START_STOP   0x38a
#define REG_JPEG_STATUS   0x382
#define REG_JPEG_STATUS1   0x383
#define REG_JPEG_VERT_PIX_SIZE0   0x9f0
#define REG_JPEG_VERT_PIX_SIZE1   0x9f2
#define REG_JPEG_X_PIXEL_SIZE_0   0x40e
#define REG_JPEG_X_PIXEL_SIZE_1   0x40f
#define REG_JPEG_Y_PIXEL_SIZE_0   0x40c
#define REG_JPEG_Y_PIXEL_SIZE_1   0x40d
#define REG_LCD0_Ctl_0   0x2bc
#define REG_LCD0_Ctl_1   0x2bd
#define REG_LCD0_Fall_0   0x2b4
#define REG_LCD0_Fall_1   0x2b5
#define REG_LCD0_Period_0   0x2b8
#define REG_LCD0_Period_1   0x2b9
#define REG_LCD0_Rise_0   0x2b0
#define REG_LCD0_Rise_1   0x2b1
#define REG_LCD1_Ctl_0   0x2cc
#define REG_LCD1_Ctl_1   0x2cd
#define REG_LCD1_Fall_0   0x2c4
#define REG_LCD1_Fall_1   0x2c5
#define REG_LCD1_Period_0   0x2c8
#define REG_LCD1_Period_1   0x2c9
#define REG_LCD1_Rise_0   0x2c0
#define REG_LCD1_Rise_1   0x2c1
#define REG_LCD2_Ctl_0   0x2dc
#define REG_LCD2_Ctl_1   0x2dd
#define REG_LCD2_Fall_0   0x2d4
#define REG_LCD2_Fall_1   0x2d5
#define REG_LCD2_Period_0   0x2d8
#define REG_LCD2_Period_1   0x2d9
#define REG_LCD2_Rise_0   0x2d0
#define REG_LCD2_Rise_1   0x2d1
#define REG_LCD3_Ctl_0   0x2ec
#define REG_LCD3_Ctl_1   0x2ed
#define REG_LCD3_Fall_0   0x2e4
#define REG_LCD3_Fall_1   0x2e5
#define REG_LCD3_Period_0   0x2e8
#define REG_LCD3_Period_1   0x2e9
#define REG_LCD3_Rise_0   0x2e0
#define REG_LCD3_Rise_1   0x2e1
#define REG_LCD4_Ctl_0   0x2fc
#define REG_LCD4_Ctl_1   0x2fd
#define REG_LCD4_Fall_0   0x2f4
#define REG_LCD4_Fall_1   0x2f5
#define REG_LCD4_Period_0   0x2f8
#define REG_LCD4_Period_1   0x2f9
#define REG_LCD4_Rise_0   0x2f0
#define REG_LCD4_Rise_1   0x2f1
#define REG_LCD5_Ctl_0   0x30c
#define REG_LCD5_Ctl_1   0x30d
#define REG_LCD5_Fall_0   0x304
#define REG_LCD5_Fall_1   0x305
#define REG_LCD5_Period_0   0x308
#define REG_LCD5_Period_1   0x309
#define REG_LCD5_Rise_0   0x300
#define REG_LCD5_Rise_1   0x301
#define REG_LCD6_Ctl_0   0x31c
#define REG_LCD6_Ctl_1   0x31d
#define REG_LCD6_Fall_0   0x314
#define REG_LCD6_Fall_1   0x315
#define REG_LCD6_Period_0   0x318
#define REG_LCD6_Period_1   0x319
#define REG_LCD6_Rise_0   0x310
#define REG_LCD6_Rise_1   0x311
#define REG_LCD7_Ctl_0   0x32c
#define REG_LCD7_Ctl_1   0x32d
#define REG_LCD7_Fall_0   0x324
#define REG_LCD7_Fall_1   0x325
#define REG_LCD7_Period_0   0x328
#define REG_LCD7_Period_1   0x329
#define REG_LCD7_Rise_0   0x320
#define REG_LCD7_Rise_1   0x321
#define REG_LCD_SUBPIXEL_ALIGNMENT   0x42
#define REG_LLINE_PULSE_START_SUBPIXEL_POS   0x21
#define REG_LUT_BLUE_READ_DATA   0x0c
#define REG_LUT_BLUE_WRITE_DATA   0x08
#define REG_LUT_GREEN_READ_DATA   0x0d
#define REG_LUT_GREEN_WRITE_DATA   0x09
#define REG_LUT_READ_ADDR   0x0f
#define REG_LUT_RED_READ_DATA   0x0e
#define REG_LUT_RED_WRITE_DATA   0x0a
#define REG_LUT_WRITE_ADDR   0x0b
#define REG_MAIN_REFLESH   0x12c
#define REG_MAIN_WIN_ADDR_OFFSET0   0x78
#define REG_MAIN_WIN_ADDR_OFFSET1   0x79
#define REG_MAIN_WIN_DISP_START_ADDR0   0x74
#define REG_MAIN_WIN_DISP_START_ADDR1   0x75
#define REG_MAIN_WIN_DISP_START_ADDR2   0x76
#define REG_MEMCLK_CONFIG   0x04
#define REG_MOD_RATE   0x11
#define REG_PANEL_TYPE   0x10
#define REG_PCLK_CONFIG   0x05
#define REG_PCLK_FREQ_RATIO_0   0x158
#define REG_PCLK_FREQ_RATIO_1   0x159
#define REG_PCLK_FREQ_RATIO_2   0x15a
#define REG_PLL_CLK_SET_0   0x126
#define REG_PLL_CLK_SET_1   0x127
#define REG_PLL_CLK_SET_2   0x12B
#define REG_POWER_SAVE_CONFIG   0xa0
#define REG_PWM1_CLOCK_CONFIG   0xb5
#define REG_PWM1_CLOCK_CONTROL   0xb4
#define REG_PWM1_CLOCK_DUTY_CYCLE   0xb7
#define REG_PWM2_CLOCK_CONFIG   0xb9
#define REG_PWM2_CLOCK_CONTROL   0xb8
#define REG_PWM2_CLOCK_DUTY_CYCLE   0xbb
#define REG_PWM3_CLOCK_CONFIG   0xbd
#define REG_PWM3_CLOCK_CONTROL   0xbc
#define REG_PWM3_CLOCK_DUTY_CYCLE   0xbf
#define REG_PWM_CLOCK_DUTY_CYCLE   0xb3
#define REG_PWM_CV_CLOCK_CONFIG   0xb1
#define REG_PWM_CV_CLOCK_CONTROL   0xb0
#define REG_REVISION_CODE   0x03
#define REG_SCRATCH_PAD0   0xa4
#define REG_SCRATCH_PAD1   0xa5
#define REG_SOFTWARE_RESET   0xa2
#define REG_SPECIAL_EFFECTS   0x71
#define REG_STN_COLOR_DEPTH   0x45
#define REG_Sub_Bpp   0x261
#define REG_Sub_Cb_Offset   0x26a
#define REG_Sub_CLK_Divide   0x252
#define REG_Sub_Cr_Offset   0x26b
#define REG_Sub_Ctl_0   0x270
#define REG_Sub_Ctl_1   0x271
#define REG_Sub_Data_0   0x26c
#define REG_Sub_Data_1   0x26d
#define REG_Sub_Hori_Size   0x254
#define REG_Sub_mode   0x250
#define REG_Sub_Offset_0   0x278
#define REG_Sub_Offset_1   0x279
#define REG_Sub_Ready   0x27d
#define REG_Sub_RS   0x26e
#define REG_Sub_SCLK_Divide   0x263
#define REG_Sub_Start_Adr_0   0x274
#define REG_Sub_Start_Adr_1   0x275
#define REG_Sub_Start_Adr_2   0x276
#define REG_Sub_TFT_Start   0x262
#define REG_Sub_Type   0x260
#define REG_Sub_Vert_Size   0x25c
#define REG_Sub_Y_Offset   0x269
#define REG_Sub_YVU   0x268
#define REG_VCLK_CONFIG_0   0x06
#define REG_VCLK_CONFIG_1   0x07
#define REG_VDP0   0x1c
#define REG_VDP1   0x1d
#define REG_VDP_START_POS0   0x1e
#define REG_VDP_START_POS1   0x1f
#define REG_VERT_TOTAL0   0x18
#define REG_VERT_TOTAL1   0x19
#define REG_VSYNC_PULSE_START_POS0   0x26
#define REG_VSYNC_PULSE_START_POS1   0x27
#define REG_VSYNC_PULSE_WIDTH   0x24
#define RGB16bpp ( r,
g,
 )     ((g & 0x7) << 5 | (b & 0x1f)) << 8 | (((r & 0x1f) <<3) | ((g & 0x38)>>3))
#define RGB16bpp1 ( r,
g,
 )     ((r & 0x7) << 5 | (g & 0x1f))
#define RGB16bpp2 ( r,
g,
 )     (((b & 0x1f) <<3) | ((r & 0x38)>>3))
Generated on Wed Mar 23 11:08:34 2011 for Omnima LCD by  doxygen 1.6.3
