capi/text.c File Reference

#include "io.h"
#include "type.h"
#include "ssd192X.h"
#include "text.h"
#include "color.h"
#include "msg.h"
#include "eeprom.h"
#include "trace.h"

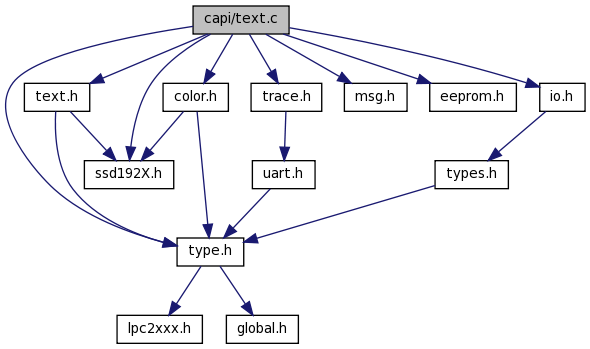

Include dependency graph for text.c:

Defines
#define	LARGENUM
#define	USESECONDFONT
#define	FONT_WIDTH   (8>>2)
#define	FONT_HEIGHT   8
Functions
UINT8	getFontWidth (UINT8 nFont)
UINT8	getFontHeight (UINT8 nFont)
UINT8	getFontChars (UINT8 nFont)
UINT8	TextDataLow (UINT8 pIconData)
UINT8	TextDataHigh (UINT8 pIconData)
UINT8	TextDataHigh2 (UINT8 pIconData)
UINT8	TextDataLow2 (UINT8 pIconData)
UINT8	GetFontByte (UINT8 nFont, UINT32 offset)
void	CurShapeToSSDMem (int pMemOffset)
void	CharToCursorMem (int pMemOffset, int destWidth, const UINT8 iAsciiNum, int iXPos, int iYPos, int iInvert)
void	StringToCursorMem (int pMemOffset, int destWidth, const char *str, int iXPos, int iYPos, int iInvert)
void	CharTo16bppMem (UINT8 nFont, UINT32 memOffset, UINT16 byWidth, UINT8 bypp, SSDRGBAType *pfrColor, SSDRGBAType *pbkColor, UINT8 nChar, UINT8 *charWidthOut)
void	FontCharToPos (UINT8 nFont, UINT16 wndWidth, const char chIn, UINT8 bIsAscii, INT16 *px, INT16 *py, UINT8 *pCharWidth)
void	MoveFontToSSD16bppMem (UINT8 nFont, UINT32 memOffset, UINT16 byWidth, UINT8 bypp, SSDRGBAType *pfrColor, SSDRGBAType *pbkColor)
Variables
fontHeaderType	fontDesc []
UINT8	bitLookup1 []
UINT8	bitLookup2 []
UINT8	sofaChromeByteLookup []

---

Define Documentation

#define FONT_HEIGHT   8

Referenced by CharToCursorMem().

#define FONT_WIDTH   (8>>2)

Referenced by CharToCursorMem().

#define LARGENUM

#define USESECONDFONT

---

Function Documentation

void CharTo16bppMem	(	UINT8	nFont,
		UINT32	memOffset,
		UINT16	byWidth,
		UINT8	bypp,
		SSDRGBAType *	pfrColor,
		SSDRGBAType *	pbkColor,
		UINT8	nChar,
		UINT8 *	charWidthOut
	)

References SSDRGBAType::a, bitLookup1, bitLookup2, Get16bitColor(), GetFontByte(), getFontHeight(), getFontWidth(), sofaChromeByteLookup, and SSD_MEMWW.

Referenced by MoveFontToSSD16bppMem().

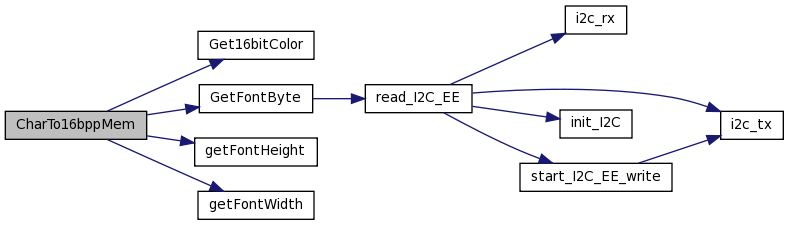

Here is the call graph for this function:

Here is the caller graph for this function:

void CharToCursorMem	(	int	pMemOffset,
		int	destWidth,
		const UINT8	iAsciiNum,
		int	iXPos,
		int	iYPos,
		int	iInvert
	)

References FONT_HEIGHT, FONT_WIDTH, GetFontByte(), SSD_MEMWB, TextDataHigh2(), and TextDataLow2().

Referenced by StringToCursorMem().

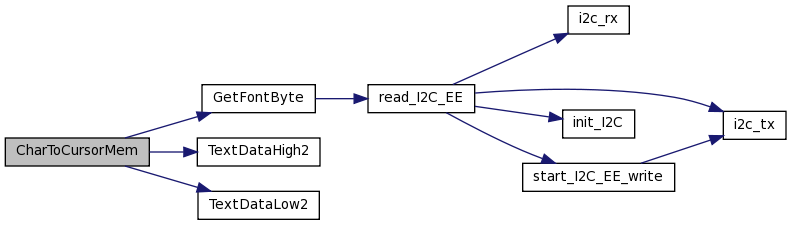

Here is the call graph for this function:

Here is the caller graph for this function:

void CurShapeToSSDMem

(

int

pMemOffset

)

References SSD_MEMWB.

Referenced by main().

Here is the caller graph for this function:

void FontCharToPos	(	UINT8	nFont,
		UINT16	wndWidth,
		const char	chIn,
		UINT8	bIsAscii,
		INT16 *	px,
		INT16 *	py,
		UINT8 *	pCharWidth
	)

References GetFontByte(), getFontChars(), getFontHeight(), and getFontWidth().

Referenced by MoveFontToSSD16bppMem(), and TextOut().

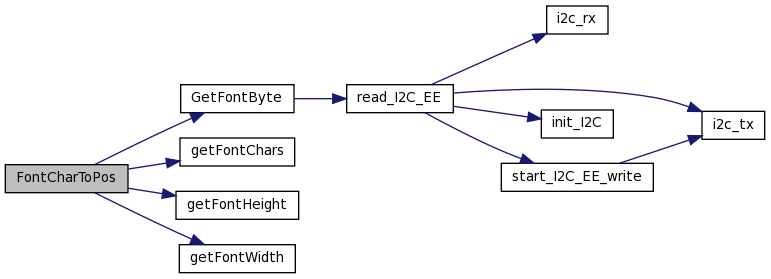

Here is the call graph for this function:

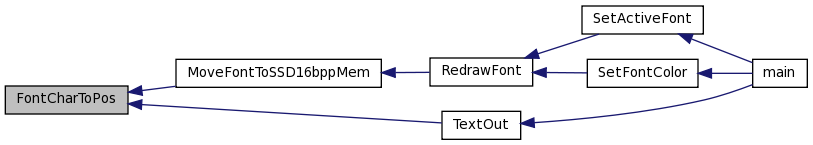

Here is the caller graph for this function:

UINT8 GetFontByte	(	UINT8	nFont,
		UINT32	offset
	)

References Font1Off, Font2Off, Font3Off, and read_I2C_EE().

Referenced by CharTo16bppMem(), CharToCursorMem(), and FontCharToPos().

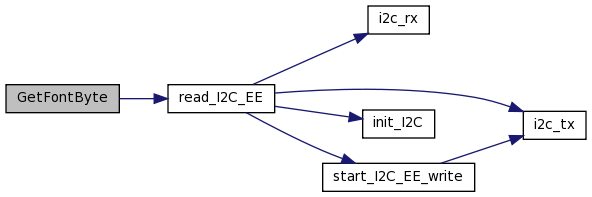

Here is the call graph for this function:

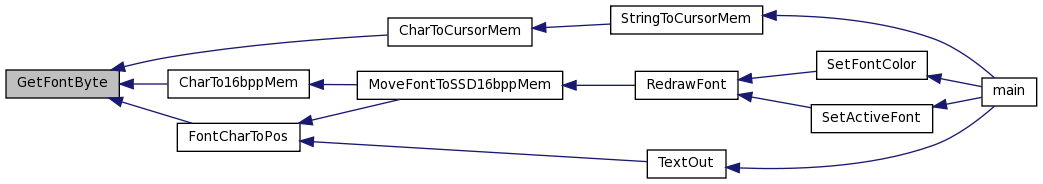

Here is the caller graph for this function:

UINT8 getFontChars

(

UINT8

nFont

)

References fontHeaderType::gliphs.

Referenced by FontCharToPos(), and MoveFontToSSD16bppMem().

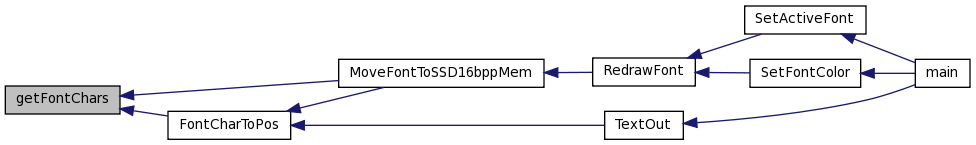

Here is the caller graph for this function:

UINT8 getFontHeight

(

UINT8

nFont

)

References fontHeaderType::height.

Referenced by CharTo16bppMem(), FontCharToPos(), and TextOut().

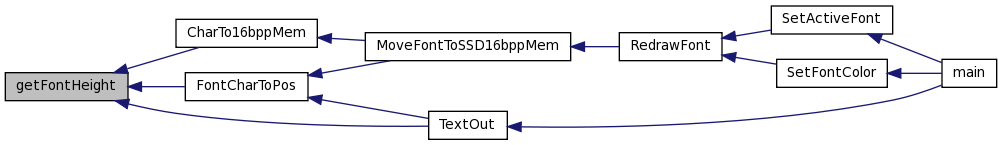

Here is the caller graph for this function:

UINT8 getFontWidth

(

UINT8

nFont

)

References fontHeaderType::width.

Referenced by CharTo16bppMem(), FontCharToPos(), and TextOut().

Here is the caller graph for this function:

void MoveFontToSSD16bppMem	(	UINT8	nFont,
		UINT32	memOffset,
		UINT16	byWidth,
		UINT8	bypp,
		SSDRGBAType *	pfrColor,
		SSDRGBAType *	pbkColor
	)

References CharTo16bppMem(), FontCharToPos(), and getFontChars().

Referenced by RedrawFont().

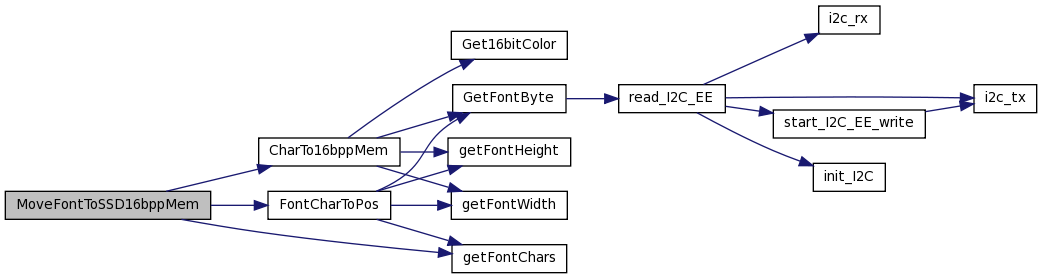

Here is the call graph for this function:

Here is the caller graph for this function:

void StringToCursorMem	(	int	pMemOffset,
		int	destWidth,
		const char *	str,
		int	iXPos,
		int	iYPos,
		int	iInvert
	)

References CharToCursorMem().

Referenced by main().

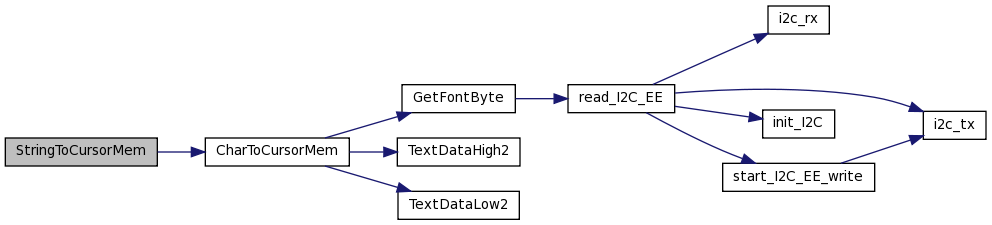

Here is the call graph for this function:

Here is the caller graph for this function:

UINT8 TextDataHigh

(

UINT8

pIconData

)

UINT8 TextDataHigh2

(

UINT8

pIconData

)

Referenced by CharToCursorMem().

Here is the caller graph for this function:

UINT8 TextDataLow

(

UINT8

pIconData

)

UINT8 TextDataLow2

(

UINT8

pIconData

)

Referenced by CharToCursorMem().

Here is the caller graph for this function:

---

Variable Documentation

UINT8 bitLookup1[]

Initial value:


{
        0x80,0x40,0x20,0x10,0x8,0x4,0x2,0x1
}

Referenced by CharTo16bppMem().

UINT8 bitLookup2[]

Initial value:


{
        0x80,0x40,0x20,0x10,0x8,0x4,0x2,0x1,
                0x80,0x40,0x20,0x10,0x8,0x4,0x2,0x1,
                0x80,0x40,0x20,0x10,0x8,0x4,0x2,0x1,
                0x80,0x40,0x20,0x10,0x8,0x4,0x2,0x1
}

Referenced by CharTo16bppMem().

fontHeaderType fontDesc[]

Initial value:


{

        {8,             8,         1,      127},
        {24,    10,        0,      40},
        {24,    32,        1,      12}
}

UINT8 sofaChromeByteLookup[]

Initial value:


{
        0,1,2,3
}

Referenced by CharTo16bppMem().
