capi/2d.c File Reference

#include "2d.h"
#include "type.h"
#include "ssd192X.h"

Include dependency graph for 2d.c:

This graph shows which files directly or indirectly include this file:

Defines
#define	abs(a, b)   a>b?(a-b):(b-a)
Functions
void	WAIT_2D ()
void	ssd_set_2d_rgb_reg (UINT8 r, UINT8 g, UINT8 b)
void	ssd_set_2d_16bit_color (UINT16 c)
void	ssd_set_16bbp_src_mode (SRCDST_MODE srcMode)
void	ssd_set_16bbp_dst_mode (SRCDST_MODE dstMode)
void	ssd_set_16bbp_srcdst_mode ()
void	ssd_start_fifo (UINT8 wait)
void	ssd_2d_line (WINDOW *pWnd, UINT16 x1, UINT16 y1, UINT16 x2, UINT16 y2, UINT16 c)
void	ssd_2d_arc (WINDOW *pWnd, UINT16 x1, UINT16 y1, UINT16 rx, UINT16 ry, UINT16 startAng, UINT16 endAng, UINT16 c)
void	ssd_2d_rect (WINDOW *pWnd, INT32 x, INT32 y, INT32 x2, INT32 y2, UINT16 rgb16Colour)
void	ssd_2d_rect_outline (WINDOW *pWnd, INT32 x, INT32 y, INT32 x2, INT32 y2, UINT16 rgb16Colour)
void	ssd192X_2d_stretch (INT32 SRC_STARTADDR, UINT16 SRC_LINEWIDTH, UINT16 SRC_WIDTH, UINT16 SRC_HEIGHT, INT32 DEST_STARTADDR, UINT16 DEST_LINEWIDTH, UINT16 DEST_WIDTH, UINT16 DEST_HEIGHT, UINT8 ORIENT)
void	ssd192X_2d_blt (INT32 SRC_STARTADDR, UINT16 SRC_LINEWIDTH, UINT16 SRC_WIDTH, UINT16 SRC_HEIGHT, INT32 DEST_STARTADDR, UINT16 DEST_LINEWIDTH, ROTATE_TYPE orient)
void	ssd_2d_blt (WINDOW *pSrcWnd, UINT16 x1, UINT16 y1, UINT16 srcWidth, UINT16 srcHeight, WINDOW *pDstWnd, UINT16 x2, UINT16 y2, UINT16 dstWidth, UINT16 dstHeight, UINT8 orient)
void	ClearDisplay (int DEST_STARTADDR, int DEST_LINEWIDTH, int DEST_WIDTH, int DEST_HEIGHT)

---

Define Documentation

#define abs	(	a,
		b		)	a>b?(a-b):(b-a)

Referenced by MoveSelDown(), MoveSelLeft(), MoveSelRight(), MoveSelUp(), and ssd_2d_rect().

---

Function Documentation

void ClearDisplay	(	int	DEST_STARTADDR,
		int	DEST_LINEWIDTH,
		int	DEST_WIDTH,
		int	DEST_HEIGHT
	)

References ssd192X_2d_stretch(), and SSD_MEMWW.

Referenced by main().

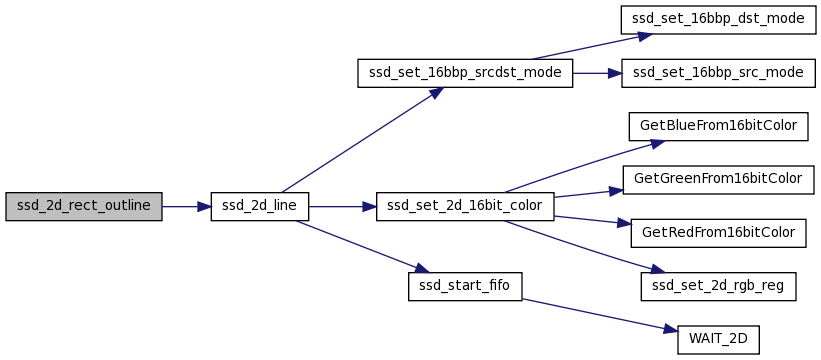

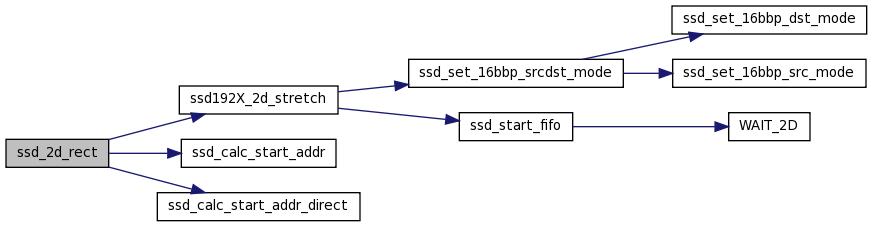

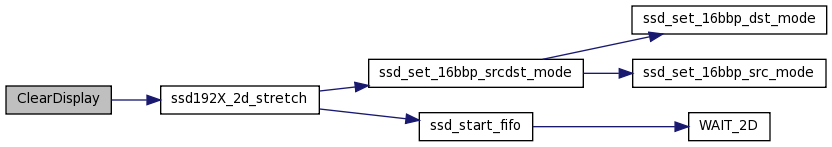

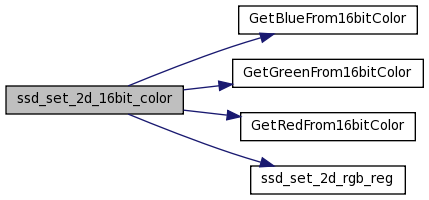

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd192X_2d_blt	(	INT32	SRC_STARTADDR,
		UINT16	SRC_LINEWIDTH,
		UINT16	SRC_WIDTH,
		UINT16	SRC_HEIGHT,
		INT32	DEST_STARTADDR,
		UINT16	DEST_LINEWIDTH,
		ROTATE_TYPE	orient
	)

References BLIT_BIT, BLIT_TRANS, REG_2D_CMD_2, REG_2D_DEST_WND_ADDR_OFFSET0, REG_2D_DEST_WND_START_ADDR0, REG_2D_SRC_WND_ADDR_OFFSET0, REG_2D_SRC_WND_HEIGHT0, REG_2D_SRC_WND_START_ADDR0, REG_2D_SRC_WND_WIDTH0, SSD_REGWB, SSD_REGWL, SSD_REGWW, ssd_set_16bbp_srcdst_mode(), ssd_set_2d_rgb_reg(), ssd_start_fifo(), and TRANSPARENT.

Referenced by ssd_2d_blt().

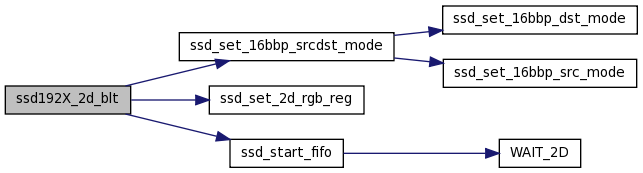

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd192X_2d_stretch	(	INT32	SRC_STARTADDR,
		UINT16	SRC_LINEWIDTH,
		UINT16	SRC_WIDTH,
		UINT16	SRC_HEIGHT,
		INT32	DEST_STARTADDR,
		UINT16	DEST_LINEWIDTH,
		UINT16	DEST_WIDTH,
		UINT16	DEST_HEIGHT,
		UINT8	ORIENT
	)

References BLIT_STRETCH, REG_2D_CMD_2, REG_2D_DEST_WND_ADDR_OFFSET0, REG_2D_DEST_WND_HEIGHT0, REG_2D_DEST_WND_START_ADDR0, REG_2D_DEST_WND_WIDTH0, REG_2D_SRC_WND_ADDR_OFFSET0, REG_2D_SRC_WND_HEIGHT0, REG_2D_SRC_WND_START_ADDR0, REG_2D_SRC_WND_WIDTH0, SSD_REGWB, SSD_REGWL, SSD_REGWW, ssd_set_16bbp_srcdst_mode(), and ssd_start_fifo().

Referenced by ClearDisplay(), ssd_2d_blt(), and ssd_2d_rect().

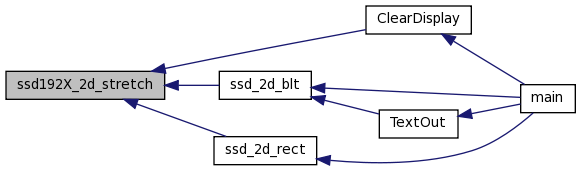

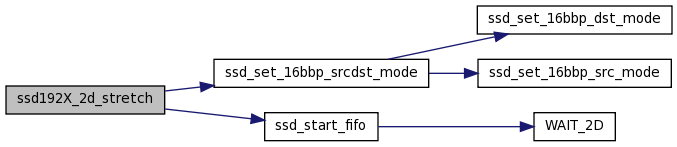

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd_2d_arc	(	WINDOW *	pWnd,
		UINT16	x1,
		UINT16	y1,
		UINT16	rx,
		UINT16	ry,
		UINT16	startAng,
		UINT16	endAng,
		UINT16	c
	)

References DRAW_ELLIPSE, _WINDOW::height, _WINDOW::mem_ssdoffset, REG_2D_CMD_2, REG_2D_DEST_WND_ADDR_OFFSET0, REG_2D_DEST_WND_HEIGHT0, REG_2D_DEST_WND_START_ADDR0, REG_2D_DEST_WND_WIDTH0, REG_2D_SRC_WND_ADDR_OFFSET0, REG_2D_SRC_WND_HEIGHT0, REG_2D_SRC_WND_START_ADDR0, REG_2D_SRC_WND_WIDTH0, SSD_REGWB, SSD_REGWL, SSD_REGWW, ssd_set_16bbp_srcdst_mode(), ssd_set_2d_16bit_color(), ssd_start_fifo(), and _WINDOW::width.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd_2d_blt	(	WINDOW *	pSrcWnd,
		UINT16	x1,
		UINT16	y1,
		UINT16	srcWidth,
		UINT16	srcHeight,
		WINDOW *	pDstWnd,
		UINT16	x2,
		UINT16	y2,
		UINT16	dstWidth,
		UINT16	dstHeight,
		UINT8	orient
	)

References ssd192X_2d_blt(), ssd192X_2d_stretch(), ssd_calc_start_addr(), and _WINDOW::width.

Referenced by main(), and TextOut().

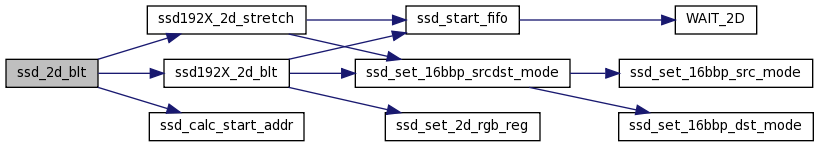

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd_2d_line	(	WINDOW *	pWnd,
		UINT16	x1,
		UINT16	y1,
		UINT16	x2,
		UINT16	y2,
		UINT16	c
	)

References DRAW_LINE, _WINDOW::mem_ssdoffset, REG_2D_CMD_2, REG_2D_DEST_WND_ADDR_OFFSET0, REG_2D_DEST_WND_HEIGHT0, REG_2D_DEST_WND_START_ADDR0, REG_2D_DEST_WND_WIDTH0, REG_2D_SRC_WND_ADDR_OFFSET0, REG_2D_SRC_WND_HEIGHT0, REG_2D_SRC_WND_WIDTH0, SSD_REGWB, SSD_REGWL, SSD_REGWW, ssd_set_16bbp_srcdst_mode(), ssd_set_2d_16bit_color(), ssd_start_fifo(), and _WINDOW::width.

Referenced by main(), and ssd_2d_rect_outline().

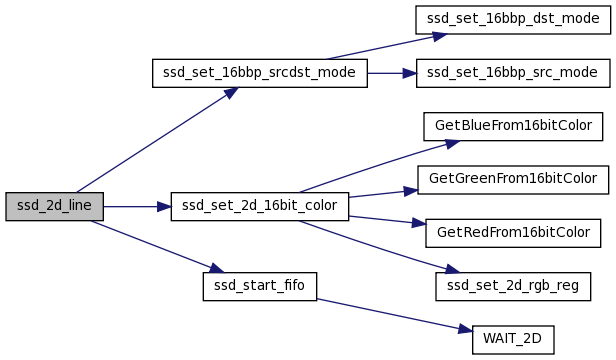

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd_2d_rect	(	WINDOW *	pWnd,
		INT32	x,
		INT32	y,
		INT32	x2,
		INT32	y2,
		UINT16	rgb16Colour
	)

References abs, ssd192X_2d_stretch(), ssd_calc_start_addr(), ssd_calc_start_addr_direct(), SSD_MEMWW, and _WINDOW::width.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd_2d_rect_outline	(	WINDOW *	pWnd,
		INT32	x,
		INT32	y,
		INT32	x2,
		INT32	y2,
		UINT16	rgb16Colour
	)

References ssd_2d_line().

Referenced by DrawWidgets(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd_set_16bbp_dst_mode

(

SRCDST_MODE

dstMode

)

References REG_2D_DEST_WND_COLOR_MODE, and SSD_REGWB.

Referenced by ssd_set_16bbp_srcdst_mode().

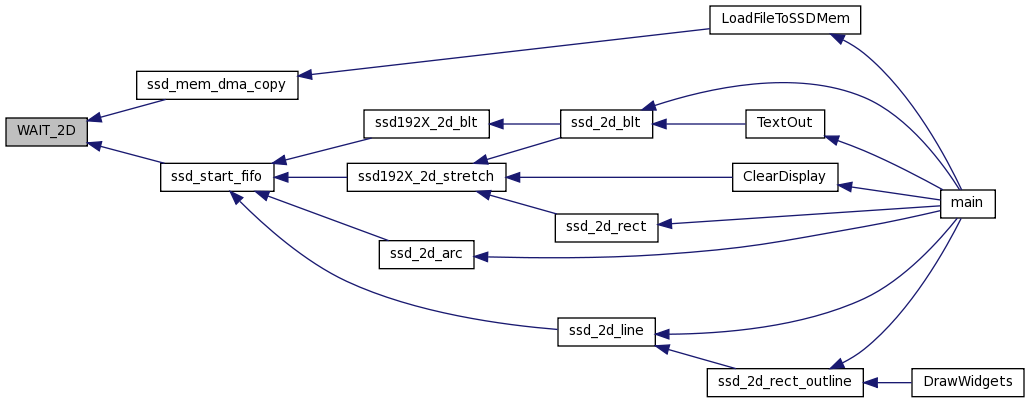

Here is the caller graph for this function:

void ssd_set_16bbp_src_mode

(

SRCDST_MODE

srcMode

)

References REG_2D_SRC_WND_COLOR_MODE, and SSD_REGWB.

Referenced by ssd_set_16bbp_srcdst_mode().

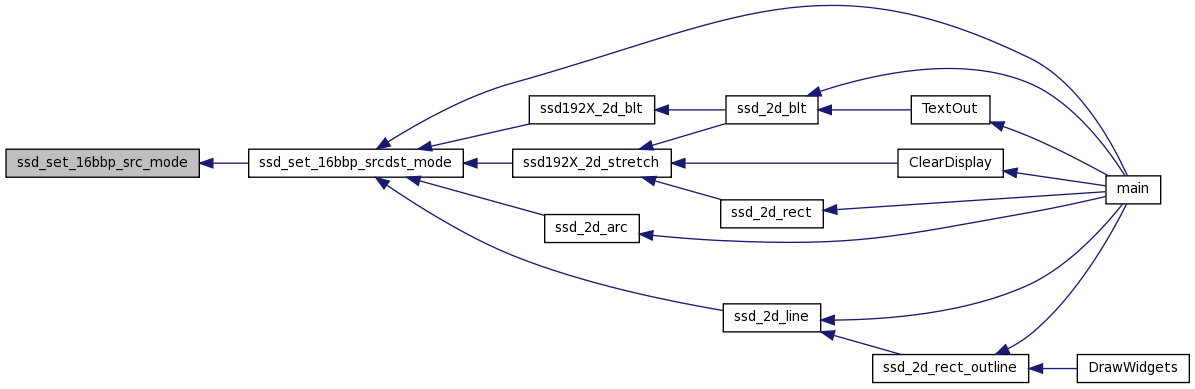

Here is the caller graph for this function:

void ssd_set_16bbp_srcdst_mode

(

)

References MODE_16BIT, ssd_set_16bbp_dst_mode(), and ssd_set_16bbp_src_mode().

Referenced by main(), ssd192X_2d_blt(), ssd192X_2d_stretch(), ssd_2d_arc(), and ssd_2d_line().

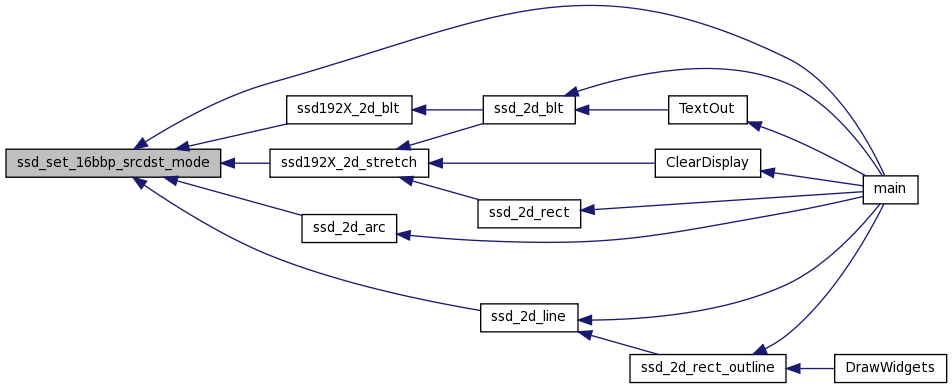

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd_set_2d_16bit_color

(

UINT16

c

)

References GetBlueFrom16bitColor(), GetGreenFrom16bitColor(), GetRedFrom16bitColor(), and ssd_set_2d_rgb_reg().

Referenced by ssd_2d_arc(), and ssd_2d_line().

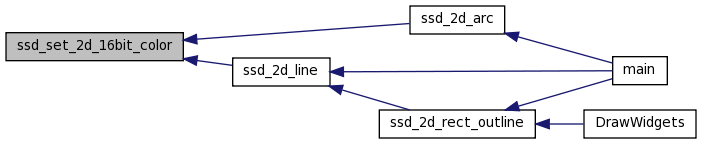

Here is the call graph for this function:

Here is the caller graph for this function:

void ssd_set_2d_rgb_reg	(	UINT8	r,
		UINT8	g,
		UINT8	b
	)

References REG_2D_WRITE_PATTERN0, REG_2D_WRITE_PATTERN1, REG_2D_WRITE_PATTERN2, and SSD_REGWB.

Referenced by ssd192X_2d_blt(), and ssd_set_2d_16bit_color().

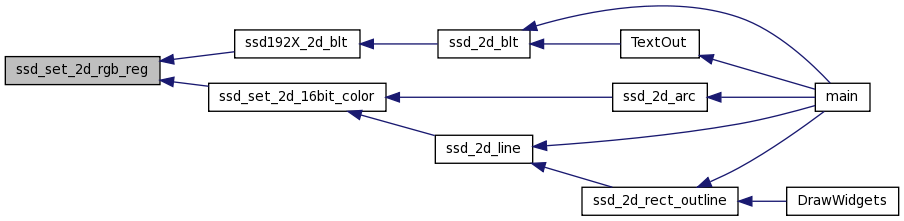

Here is the caller graph for this function:

void ssd_start_fifo

(

UINT8

wait

)

References REG_2D_CMD_FIFO_STATUS, SSD_REGWB, and WAIT_2D().

Referenced by ssd192X_2d_blt(), ssd192X_2d_stretch(), ssd_2d_arc(), and ssd_2d_line().

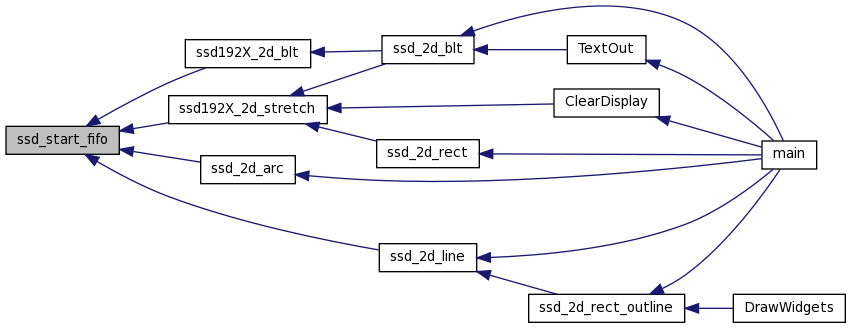

Here is the call graph for this function:

Here is the caller graph for this function:

void WAIT_2D

(

void

)

References REG_2D_CMD_FIFO_FLAG, and SSD_REGRB.

Referenced by ssd_mem_dma_copy(), and ssd_start_fifo().

Here is the caller graph for this function:
