Modular and easy to install MaxPAR system
You can easily install and expand your lighting system to best match your needs. You can now combine 6500K and 10000K or 20000K lamps to provide ideal PAR levels.
The kit includes all you need to set up a state of the art metal halide lamp.

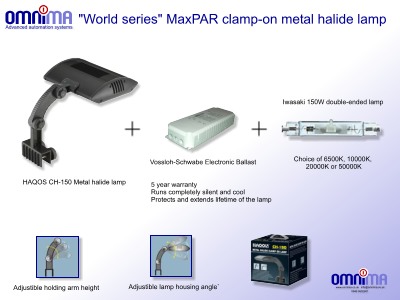

The kit includes:
- Iwasaki 150W PAR36 6500K, 10000K or 20000K Lamp

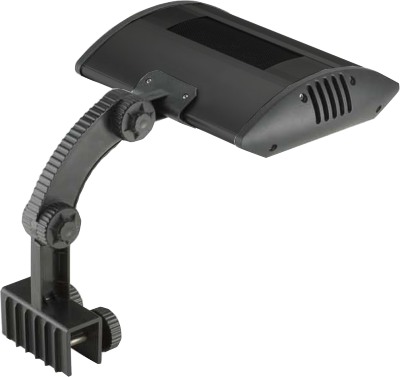

- Haqos clamp-on metal halide housing
- Vossloh-Schwabe electronic ballast, German made, completely silent and cool running
- 5 year manufacturer's warranty covering the housing and electronic ballast
- 3-core 1mm2 silicone mains cable
This kit produces optimal conditions for maximum coral growth!
To find out more about this product and the Omnima MaxPAR product range click here:
Omnima Forum - Lighting
Clamp-on lamp specification:
- Clamp-on housing dimensions: 24cm x 18cm x 6.5cm
- Maximum adjustible height: 24cm
- Minimum adjustible height: 14cm
- Maximum thickness of fixing grip: 44mm
Electonic ballast specification:
|
Casing: | Heat-resistant polycarbonate |
| Casing temperature tc: | max. 70?C |
| Ignition voltage: | 4,0 - 5,0 kV |
| DC operation: | 198-254V |
| Permissible load capacity: | 20-100pF |
| Total harmonic distortion: | <10% |
| Power factor: | 0.98 |
| |
| Constant power consumption |
| Idling firm |
| Luminaires with protection class I+II. |
| |
| Lamp type: | HI |
| Output [W]: | 150 |
| Lamp number: | 1 |
| Dimming: | Not dimmable, without ignitiontime bridging |
| Main voltage AC [V]: | 220 |
| Frequency [Hz]: | 50 |
| Kind of connection: | Push-in terminal |
| Protection class: | Class of protection I |
| Width B [mm]: | 89 |
| Height [mm]: | 37 |
| Length [mm]: | 224 |
| Fixing centre [mm]: | 174 |
| Max. ambient temperature [?C]: | 40 |
| |
| No flickering of defective lamps. |
| Temperature control with autom. reset. |
| Longer lamp life (appr.50%). Up to 25% energy savings. |
| Fixing bracket for screw |
| M4 for base mounting. |
| With cord grip, independent ballast. |
| |
| CE tested and certified |
| EN 61000-3-2 (Mains harmonics) |
| EN 55015 (RFI-suppression) |
| EN 61547 (EMC immunity to interference) |
|
