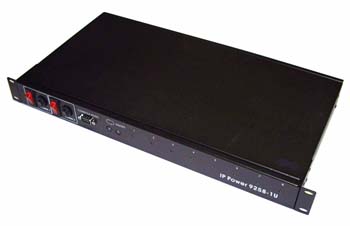

The IP 9258 can be controlled over a TCP/IP network using generic Ethernet or Web browser. Each independent outlet can be switched ON, OFF or Booted (OFF- delay-ON). IP9258 can supply maximum up to 10A/240VAC Power. Uses international standard IEC 320 Inlet/Outlet connectors that make it easy to use anywhere in the world using locally available PC cables and adapters.
- Turn on/off 8 power 240V outlets
- Remote access via Internet
- LAN/ethernet or RS232 Integrated web server allows control via a web browser Instant or timer based operation
- Operates as a standalone unit once configured
Features
- Network Server reboot - can be used to remotely reboot a PC or server at a remote site
- Network AC Power Control - can control and turn on/off high power switchs and 220/240V consumer electronic products via Internet,LAN/Ethernet
- Timer Power Switch - can pre-set the time schedule to turn power on / off remotely
- Access and monitor the unit using Internet Explorer, Firefox or WAP mobile phone from the GPRS network
- Control and monitor the switches via RS232 serial port as an alternative
- Supports SNMP
- Software development kits is provided
- Webpage (http) Command - allows end-user to easily control the switches remotely
- Firmware can be automatically updated via the Internet
Specification
- EC320 connector design, 1 male inlet (power in) and 4 female power outlets (Power output switched via Ethernet or RS232 serial port)
- Uses standard PC/IEC power cords
- Total power control up to 15A/240VAC for each 4 socket segment
- AC Power switch with power On/Off indicator
- 4 LED power switch status indicators
- 1 pc RJ45 port for Ethernet connection
- 1 pc RS232 port for UART control
- 1 pc Mounting bracket
- Dimension 440mm x 240mm x 45mm, metal case
- Operating Temperature: 0°C to +50°C
Options

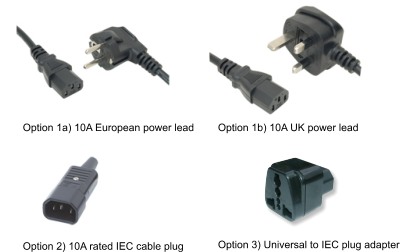

IP Power 9258 uses international standard IEC 320 Inlet/Outlet connectors. You can select the cables and plugs that are suitable for your application and country.
- Option 1:13A IEC mains lead can be purchased to connect IP Power 9258 to a 220/240V mains power outlet. 2M cable, CE, BS1363/A and KEMA approved. Choice of a 3-pin UK plug or a Schuko Euro plug.
- Option 2: To connect an appliance to one of the four sockets on the IP Power 9258 the IEC cable plug can be used as a replacement for a standard three-pin mains plug. The IEC cable plug is rated at 10A/250V, has a reversable clump to suit various cable sizes, is fitted with pillar terminals, captive contact pins and cover screw. Shurter part number 4322.0000.
- Option 3: The universal IEC plug adapter can be used to directly plug in a UK, Schuko/Euro or USA type plug into a socket on IP Power 9258.
This product can be used in conjunction with the Omnima Embedded controller SKU16140. The embedded controller can be set up as a DHCP server to connect IP Power to the Internet. The embedded controller can also be programmed to turn the power switches on/off or change the timer settings by using http post/get requests sent to connected IP Power devices.
